Measurement of Mechanical Properties of Electroplated Nickel Thin Film

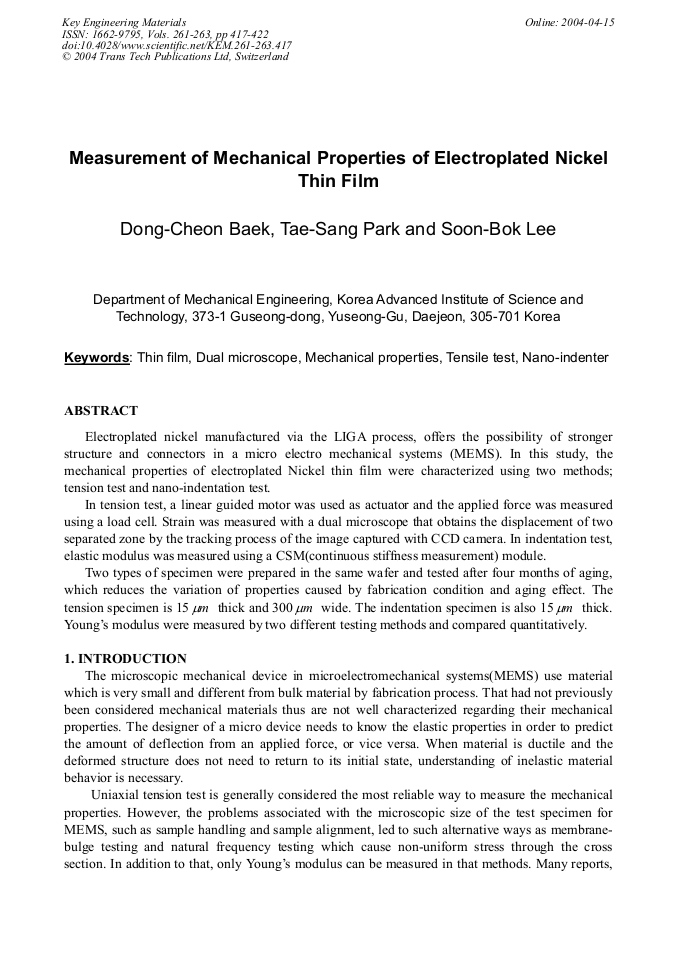

Article Preview

Electroplated nickel manufactured via the LIGA process, offers the possibility of stronger structure and connectors in a micro electro mechanical systems (MEMS). In this study, the mechanical properties of electroplated Nickel thin film were characterized using two methods; tension test and nano-indentation test. In tension test, a linear guided motor was used as actuator and the applied force was measured using a load cell. Strain was measured with a dual microscope that obtains the displacement of two separated zone by the tracking process of the image captured with CCD camera. In indentation test, elastic modulus was measured using a CSM(continuous stiffness measurement) module. Two types of specimen were prepared in the same wafer and tested after four months of aging, which reduces the variation of properties caused by fabrication condition and aging effect. The tension specimen is 15 µm thick and 300 µm wide. The indentation specimen is also 15 µm thick. Young's modulus were measured by two different testing methods and compared quantitatively.



Key Engineering Materials (Volumes 261-263)

Edited by:

Kikuo Kishimoto, Masanori Kikuchi, Tetsuo Shoji and Masumi Saka




D. C. Baek et al., "Measurement of Mechanical Properties of Electroplated Nickel Thin Film", Key Engineering Materials, Vols. 261-263, pp. 417-422, 2004

Online since:

April 2004
