Indentation Creep in Zirconia Ceramics under Variable Loads

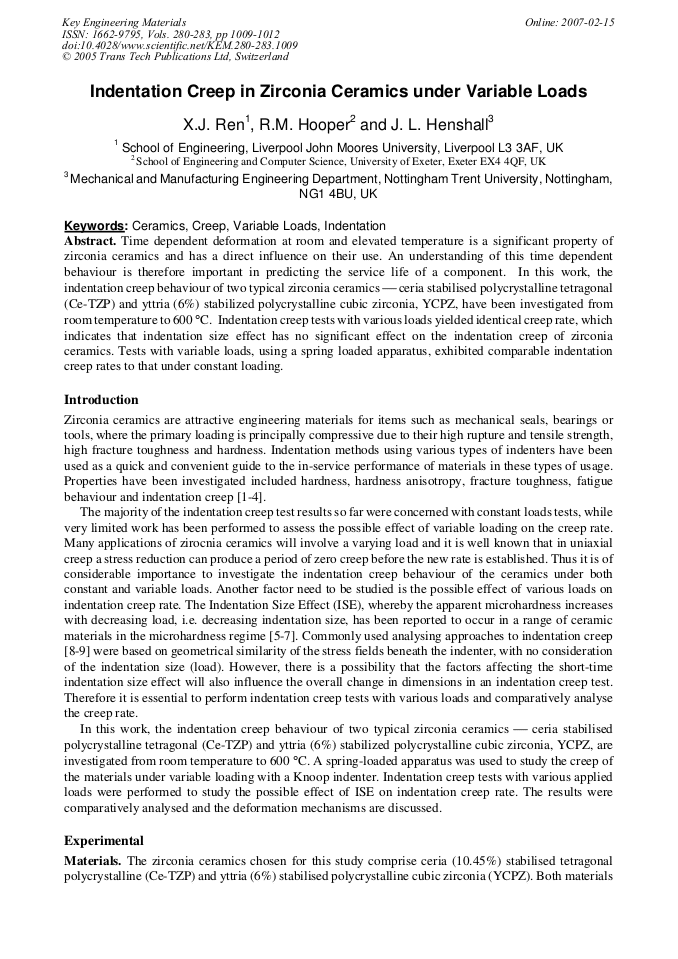

Article Preview

Time dependent deformation at room and elevated temperature is a significant property of zirconia ceramics and has a direct influence on their use. An understanding of this time dependent behaviour is therefore important in predicting the service life of a component. In this work, the indentation creep behaviour of two typical zirconia ceramics ¾ ceria stabilised polycrystalline tetragonal (Ce-TZP) and yttria (6%) stabilized polycrystalline cubic zirconia, YCPZ, have been investigated from room temperature to 600 °C. Indentation creep tests with various loads yielded identical creep rate, which indicates that indentation size effect has no significant effect on the indentation creep of zirconia ceramics. Tests with variable loads, using a spring loaded apparatus, exhibited comparable indentation creep rates to that under constant loading.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




X.J. Ren et al., "Indentation Creep in Zirconia Ceramics under Variable Loads", Key Engineering Materials, Vols. 280-283, pp. 1009-1012, 2005

Online since:

February 2007




[1] R.L.K. Matsumoto: Comm. Am. Ceram. Soc. Vol. 70 (1987), pp. C366.

[2] G.M. Carter, J.L. Henshall and R.M. Hooper: J. Am. Ceram. Soc. Vol. 71 (1988), pp. C-270.

[3] M. Reece and F. Guiu: J. Am. Ceram. Soc. Vol. 73 (1990), p.1004.

[4] M.O. Guillou, G.M. Carter, J.L. Henshall and R.M. Hooper: J. Hard Mater. Vol. 1(1990), p.65.

[5] H. Li and R.C. Bradt: J. Hard Mater. Vol. 3 (1992), p.403.

[6] J. H. Gong and Z. D. Guan: Mater. Lett. Vol. 47 (2001), p.140.

[7] X.J. Ren, R.M. Hooper, C. Griffths and L.J. Henshall: J. Mater. Sci. Lett. Vol. 22 (2003), p.1105.

[8] A.G. Atkins, A. Silverio and D. Tabor: J. Institute Metals Vol. 94 (1966), p.369.

[9] A.G. Atkin and D. Tabor: J. Am. Ceram. Soc. Vol. 50 (1967), p.195.

[10] X. J. Ren, R. M. Hooper, C. Griffiths and L. J. Henshall: J. Mater. Sci. Let. Vol. 20 (2001), p.1819.

[11] M.O. Guillou, J.L. Henshall and R.M. Hooper: J. Am. Ceram. Soc. Vol. 76 (1993), p.1832.

[12] M.O. Guillou, J.L. Henshall and R.M. Hooper: Wear Vol. 170 (1993), p.247.

[13] J.L. Henshall, G.M. Carter and R.M. Hooper: Mechanics of Creep Brittle Materials, 1988, eds. A. C. F. Cocks and A. R. S. Ponter (Elsevier Science Publishers LTD, 1989) p.117.

[14] J.L. Henshall, G.M. Carter, R.M. Hooper, et al.: J. Hard Mater. Vol. 4(1993), p.1.

[15] P.M. Sargent and M.F. Ashby: Materials Science and Technology Vol. 8 (1992), p.594.

[16] W. Li, J. Henshall, R. Hooper and K. Easterling: Acta Metall. Mater. Vol. 39 (1990), p.3099.

[17] K L. Johnson: Contact Mechanics (Cambridge University press, UK, 1985).

[18] K. L. Johnson: Mech. Phys. Solids, Vol. 18 (1970), p.115.
