Frictional Layer and Its Antifriction Effect in High-Purity Ti3SiC2 and TiC-Contained Ti3SiC2

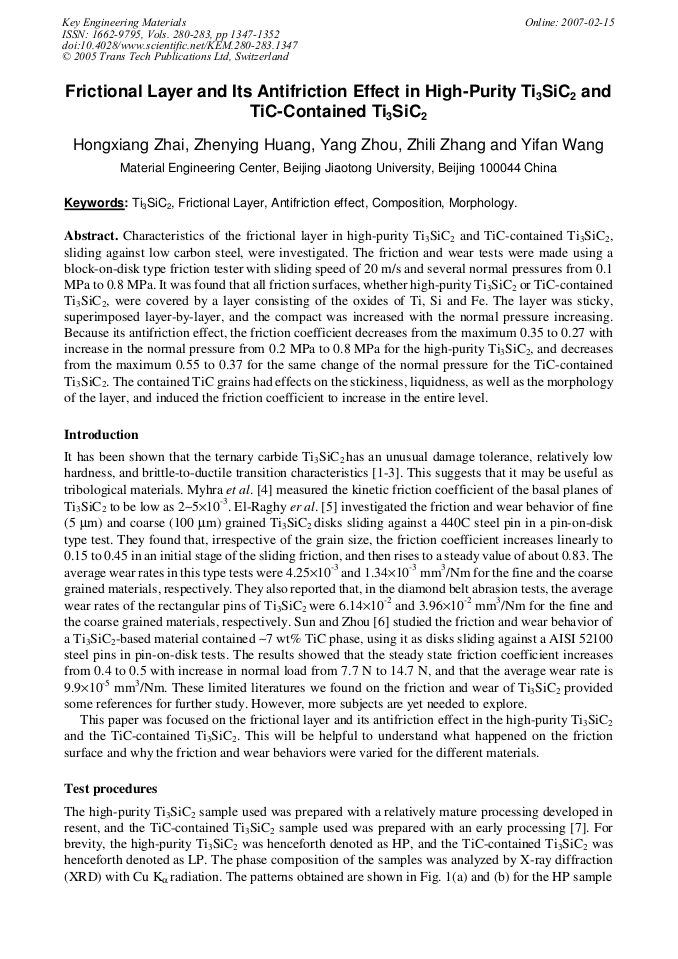

Article Preview

Characteristics of the frictional layer in high-purity Ti3SiC2 and TiC-contained Ti3SiC2, sliding against low carbon steel, were investigated. The friction and wear tests were made using a block-on-disk type friction tester with sliding speed of 20 m/s and several normal pressures from 0.1 MPa to 0.8 MPa. It was found that all friction surfaces, whether high-purity Ti3SiC2 or TiC-contained Ti3SiC2, were covered by a layer consisting of the oxides of Ti, Si and Fe. The layer was sticky, superimposed layer-by-layer, and the compact was increased with the normal pressure increasing. Because its antifriction effect, the friction coefficient decreases from the maximum 0.35 to 0.27 with increase in the normal pressure from 0.2 MPa to 0.8 MPa for the high-purity Ti3SiC2, and decreases from the maximum 0.55 to 0.37 for the same change of the normal pressure for the TiC-contained Ti3SiC2. The contained TiC grains had effects on the stickiness, liquidness, as well as the morphology of the layer, and induced the friction coefficient to increase in the entire level.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




H. X. Zhai et al., "Frictional Layer and Its Antifriction Effect in High-Purity Ti3SiC2 and TiC-Contained Ti3SiC2", Key Engineering Materials, Vols. 280-283, pp. 1347-1352, 2005

Online since:

February 2007




[1] T. El-Raghy, M.W. Barsoum, A. Zavaliangos and S.R. Kalidindi: J. Am. Ceram. Soc. Vol. 82 (1999), p.2855.

[2] T. El-Raghy, A. Zavaliangos, M.W. Barsoum and S.R. Kalidindi: J. Am. Ceram. Soc. Vol. 80 (1997), p.513.

[3] J.F. Li, W. Pan, F. Sato and R. Watanabe: Acta Mater. Vol. 49 (2001), p.937.

[4] S. Myhra, J.W.B. Summers and E.H. Kisi: Mater. Lett. Vol. 39 (1999), p.6.

[5] T. El-Raghy, P. Blau and M.W. Barsoum: Wear Vol. 238 (2000), p.125.

[6] Z. Sun and Y. Zhou: J. Mater. Sci. Technol. Vol. 18 (2002), p.142.

[7] K. Tang, C-A. Wang, Y. Huang and J. Xia: J. Eur. Ceram. Soc. Vol. 21 (2001), p.617.

[8] S. M. El-Raghy, A.F. Waheed, T. El-Raghy and M.W. Barsoum: J. Mater. Sci. Lett. Vol. 18 (1999), p.519.


[9] G. Liu, M. Li and Y. Zhou: J. Eur. Ceram. Soc. Vol. 23 (2003), pp. (1957).
