Co-Firing Behavior of Co2Z Hexagonal Ferrite/Ag Internal Electrode for MLCIs

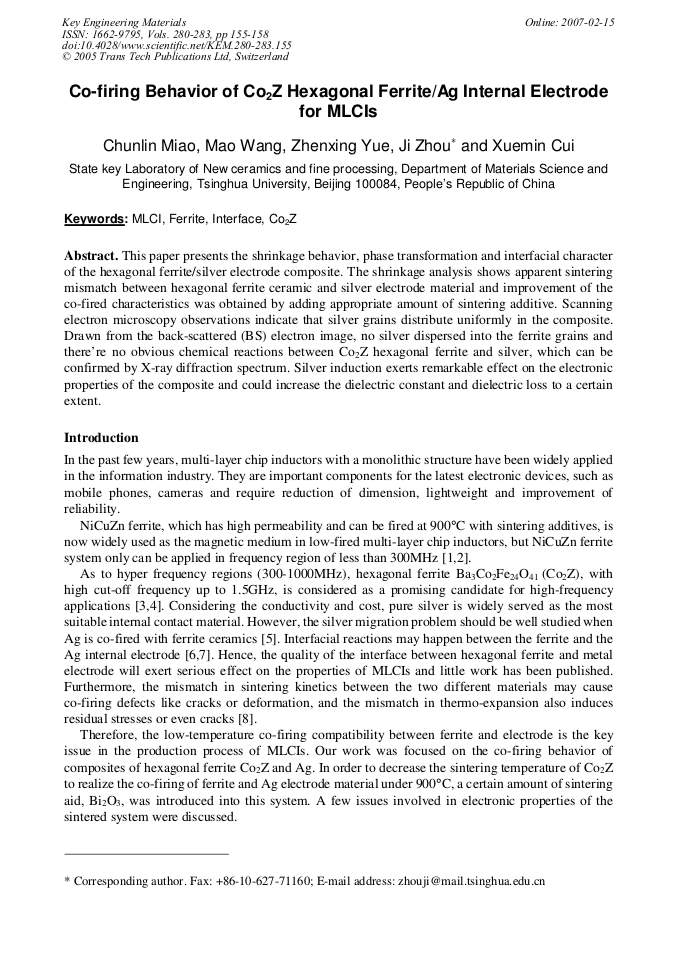

Article Preview

This paper presents the shrinkage behavior, phase transformation and interfacial character of the hexagonal ferrite/silver electrode composite. The shrinkage analysis shows apparent sintering mismatch between hexagonal ferrite ceramic and silver electrode material and improvement of the co-fired characteristics was obtained by adding appropriate amount of sintering additive. Scanning electron microscopy observations indicate that silver grains distribute uniformly in the composite. Drawn from the back-scattered (BS) electron image, no silver dispersed into the ferrite grains and there’re no obvious chemical reactions between Co2Z hexagonal ferrite and silver, which can be confirmed by X-ray diffraction spectrum. Silver induction exerts remarkable effect on the electronic properties of the composite and could increase the dielectric constant and dielectric loss to a certain extent.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




C. L. Miao et al., "Co-Firing Behavior of Co2Z Hexagonal Ferrite/Ag Internal Electrode for MLCIs", Key Engineering Materials, Vols. 280-283, pp. 155-158, 2005

Online since:

February 2007





[1] X.H. Wang, L.T. Li, S.Y. Su, Z.L. Gui, Z.X. Yue and J. Zhou: J. Eur. Ceram. Soc. Vol. 23 (2003), p.715.

[2] K.O. Low and F. R. Sale: J. Magn. Magn. Mater. Vol. 246 (2002), p.30.

[3] H.G. Zhang, P. Punchaipet, E.G. Bruce, W.M. Robert, L.T. Li, J. Zhou, Y.L. Wang, Z.X. Yue and Z.L. Gui: Microeletrics J. Vol. 34 (2003), p.281.

[4] J. H. Hankiewicz: J. Magn. Magn. Mater. Vol. 101 (1991), p.134.

[5] M. Wang, J. Zhou, Z.G. Yue, L.T. Li and Z.L. Gui: Piezoelectric & Acoustooptics Vol. 25 (2003), p.505.

[6] T. Nakamura, Y. Okano and S. Miura: J. Mater. Sci. Vol. 33 (1998), p.1091.

[7] S.F. Wang and W. Huebner: J. Am. Ceram. Soc. Vol. 75 (1992), p.2339.

[8] R.Z. Zuo, L.T. Li, N.X. Zhang and Z.L. Gui: Ceramics International Vol. 27 (2001), p.85.
