TiB2/AlN/Cu Functionally Graded Materials (FGMs) Fabricated by Spark Plasma Sintering (SPS) Method

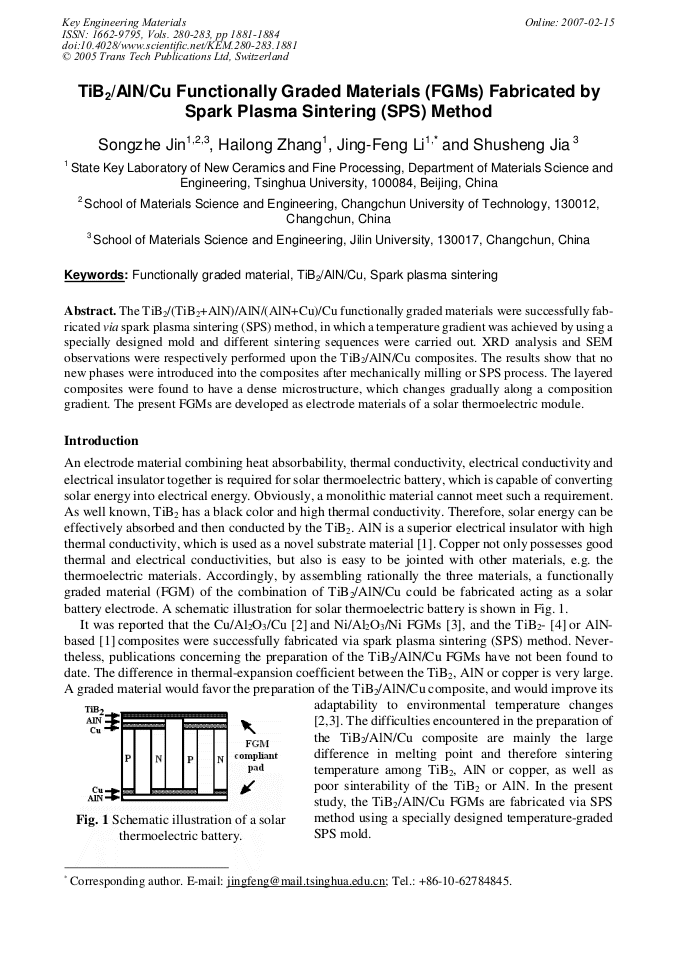

Article Preview

The TiB2/(TiB2+AlN)/AlN/(AlN+Cu)/Cu functionally graded materials were successfully fabricated via spark plasma sintering (SPS) method, in which a temperature gradient was achieved by using a specially designed mold and different sintering sequences were carried out. XRD analysis and SEM observations were respectively performed upon the TiB2/AlN/Cu composites. The results show that no new phases were introduced into the composites after mechanically milling or SPS process. The layered composites were found to have a dense microstructure, which changes gradually along a composition gradient. The present FGMs are developed as electrode materials of a solar thermoelectric module.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




S. Z. Jin et al., "TiB2/AlN/Cu Functionally Graded Materials (FGMs) Fabricated by Spark Plasma Sintering (SPS) Method", Key Engineering Materials, Vols. 280-283, pp. 1881-1884, 2005

Online since:

February 2007




[1] K.A. Khor, K.H. Cheng, L.G. Yu and F. Boey: Mater. Sci. Eng. A Vol. 347 (2003), p.300.

[2] A. Ohtsuka, A. Kawasaki, R. Watanabe and U.T. Young: J. Jpn. Soc. Powder Metall. Vol. 45 (1998), p.220.

[3] K. Kikuchi, Y.S. Kang and A. Kawasaki: J. Jpn. Soc. Powder Metall. Vol. 47 (2000), p.347.

[4] H. Kaga, E.M. Heian and Z.A. Munir: J. Am. Ceram. Soc. Vol. 84 (2001), p.2764.

[5] K. Nagae: Abstract book of 7th SPS symposium (Nagano, Japan 2003).

[6] D.M. Zhang, Z.Y. Fu, T. Tang and T.T. Pang: J. Wuhan Univ. Technol. Vol. 24 (2002), p.11.
