Diamond Coated on Cobalt-Deficient Gradient Tungsten Carbide

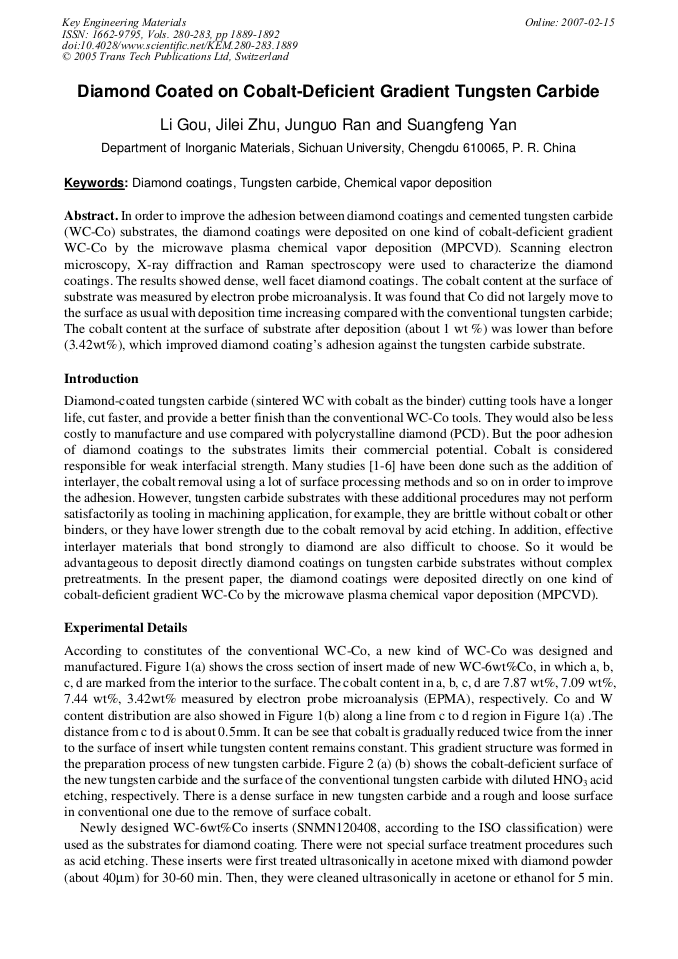

Article Preview

In order to improve the adhesion between diamond coatings and cemented tungsten carbide (WC-Co) substrates, the diamond coatings were deposited on one kind of cobalt-deficient gradient WC-Co by the microwave plasma chemical vapor deposition (MPCVD). Scanning electron microscopy, X-ray diffraction and Raman spectroscopy were used to characterize the diamond coatings. The results showed dense, well facet diamond coatings. The cobalt content at the surface of substrate was measured by electron probe microanalysis. It was found that Co did not largely move to the surface as usual with deposition time increasing compared with the conventional tungsten carbide; The cobalt content at the surface of substrate after deposition (about 1 wt %) was lower than before (3.42wt%), which improved diamond coating’s adhesion against the tungsten carbide substrate.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




L. Gou et al., "Diamond Coated on Cobalt-Deficient Gradient Tungsten Carbide", Key Engineering Materials, Vols. 280-283, pp. 1889-1892, 2005

Online since:

February 2007




[1] R. F. Davis: Diamond Films and Coatings (Noyes publications, U.S. A 1992).

[2] S. Amirhaghi, H.S. Reehai, E. Plappert, Z. Bajic, R. J. K. Wood and D. W. Wheeler: Diamond and Related Materials Vol. 8 (1999), p.845.

[3] F. Deurerler, H. Gruner, M. Pohl and L. Tikana: Surf. Coat. Technol. Vol. 142-144(2001), p.674.

[4] T. Tsubota, S. Ida, N. Okada, M. Nagata, Y. Matsumoto and N. Yatsushiro: Surface and Coatings Technology Vol. 169-170(2003), p.262.

[5] M. S. Raghuveer, S. N. Yogannadham, R. L. Lemaster and J. Bailey: Wear Vol. 253 (2002), p.1194.

[6] M.J. Dai, T.C. Kuang, Z.Y. Liu, X.L. Cheng and X.J. Bai: Acta Matall. Sin. Vol. 36 (2000), p.780.

[7] J. G. Kim and J. Yu: Jpn. J. Appl. Phys. Vol. 37 (1998), p.2.

[8] L. Bergman, K. F. Turner, P. W. Morrison and R. J. Nemanich: Applications of Diamond Films and Related Materials (NIST Special Publication 885, U.S. A 1995), p.453.
