Electrical Properties of the Mixed Bismuth Layer-Structured Bi7Ti4NbO21 Ceramics

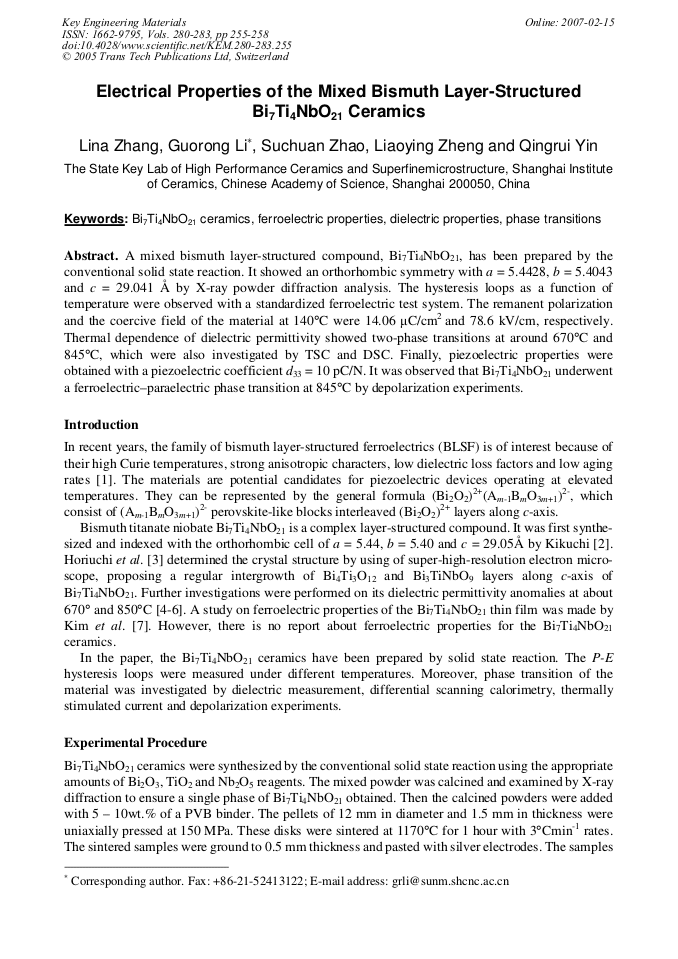

Article Preview

A mixed bismuth layer-structured compound, Bi7Ti4NbO21, has been prepared by the conventional solid state reaction. It showed an orthorhombic symmetry with a = 5.4428, b = 5.4043 and c = 29.041 Å by X-ray powder diffraction analysis. The hysteresis loops as a function of temperature were observed with a standardized ferroelectric test system. The remanent polarization and the coercive field of the material at 140°C were 14.06 µC/cm2 and 78.6 kV/cm, respectively. Thermal dependence of dielectric permittivity showed two-phase transitions at around 670°C and 845°C, which were also investigated by TSC and DSC. Finally, piezoelectric properties were obtained with a piezoelectric coefficient d33 = 10 pC/N. It was observed that Bi7Ti4NbO21 underwent a ferroelectric–paraelectric phase transition at 845°C by depolarization experiments.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




L. Zhang et al., "Electrical Properties of the Mixed Bismuth Layer-Structured Bi7Ti4NbO21 Ceramics", Key Engineering Materials, Vols. 280-283, pp. 255-258, 2005

Online since:

February 2007




[1] B. Aurivillius: Ark. Kem. Vol. 1 (1949), p.463.

[2] T. Kukichi: J. Less-Common Met. Vol. 48 (1976), p.319.

[3] S. Horiuchi, T. Kikuchi and M. Goto: Acta Cryst. Vol. A33 (1977), p.701.

[4] T. Kukichi, A. Watanabe and K. Uchida: Mat. Res. Bull. Vol. 12 (1977), p.299.

[5] F. Chu, D. Damjanovic, O. Steiner and N. Setter: J. Am. Ceram. Soc. Vol. 78 (1995), p.3142.

[6] R. Maalal, R. Von Der Mühll, G. Trolliard and J. P. Mercurio: J. Phys. Chem. Solids Vol. 57 (1996), pp. (1957).

[7] C. J. Kim and S. G. Hong: Thin Solid Films Vol. 365 (2000), p.58.

[8] M. Villegas, A. C. Caballero, C. Moure, P. Durán and J. F. Fernández: J. Am. Ceram. Soc. Vol. 82 (1999), p.2411.

[9] Z. Zhang, H. Yan, X. Dong and Y. Wang: Mater. Res. Bull. Vol. 38 (2003), p.241.
