YSZ Thin Films Prepared by a Novel Powder Coating Process on Porous NiO-YSZ Cermet

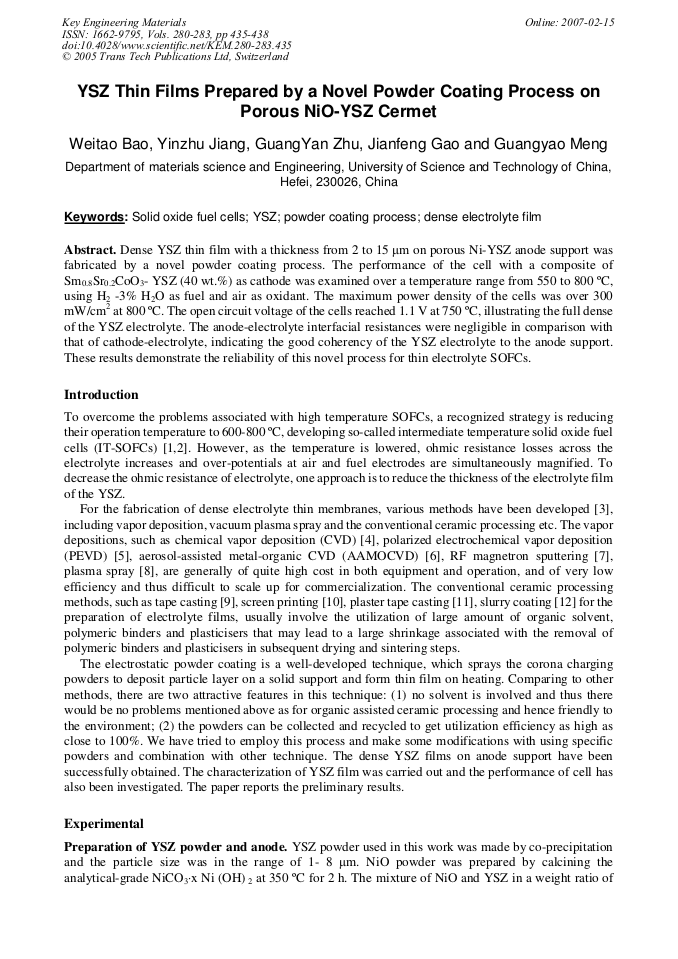

Article Preview

Dense YSZ thin film with a thickness from 2 to 15 µm on porous Ni-YSZ anode support was fabricated by a novel powder coating process. The performance of the cell with a composite of Sm0.8Sr0.2CoO3- YSZ (40 wt.%) as cathode was examined over a temperature range from 550 to 800 °C, using H2 -3% H2O as fuel and air as oxidant. The maximum power density of the cells was over 300 mW/cm2 at 800 °C. The open circuit voltage of the cells reached 1.1 V at 750 °C, illustrating the full dense of the YSZ electrolyte. The anode-electrolyte interfacial resistances were negligible in comparison with that of cathode-electrolyte, indicating the good coherency of the YSZ electrolyte to the anode support. These results demonstrate the reliability of this novel process for thin electrolyte SOFCs.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




W. T. Bao et al., "YSZ Thin Films Prepared by a Novel Powder Coating Process on Porous NiO-YSZ Cermet", Key Engineering Materials, Vols. 280-283, pp. 435-438, 2005

Online since:

February 2007




[1] S.P.S. Badwal and K. Foger: Ceram. Int. Vol. 22 (1995), p.257.

[2] C.S. Song: Catal. Today Vol. 77 (2002), p.17.

[3] J. Will, A. Mitterdorfer, C. Kleinlogel, D. Perednis and L.J. Gauckler: Solid State Ionics Vol. 131 (2000), p.79.

[4] K.L. Choy: Prog. Mater. Sci. Vol. 48 (2003), p.57.

[5] J.L. Young, T.H. Etsell: Solid State Ionics Vol. 135 (2000), p.457.

[6] H.B. Wang, H.Z. Song, C.R. Xia, D.K. Peng and G.Y. Meng: Mater. Res. Bull. Vol. 35 (2000), p.2363.

[7] A. Nagata, H. Okayama: Vacuum Vol. 66 (2002), p.523.

[8] G. Schiller, R.H. Henne, M. Lang, R. Ruckdaschel and S. Schaper: Fuel cells Bull. No. 21, p.7.

[9] T. Fukui, S. Ohara, K. Murata, H. Yoshida, K. Miura and T. Inagaki: J. Power Sources Vol. 106 (2002), p.142.

[10] R.R. Peng, C.R. Xia, X.Q. Liu, D.K. Peng and G.Y. Meng: Solid State Ionics Vol. 152-153 (2002), p.561.

[11] J. Liu, W. Liu, Z. Lu, L. Hui , L. Jia, L.Y. He and W.H. Su: Solid State Ionics Vol. 118 (1999), p.67.

[12] Z. Cai, T.N. Lan, S. Wang and M. Dokiya: Solid State Ionics Vol. 152- 153 (2002), p.583.

[13] A.G. Bailey: J. Electrostat. Vol. 45 (1998), p.85.

[14] C.R. Xia, M.L. Liu: Solid State Ionics Vol. 144 (2001).
