Microstructure and Microwave Dielectric Properties of Ba5(Nb1-xTax)4O15 (x = 0 ~ 0.5) Ceramics

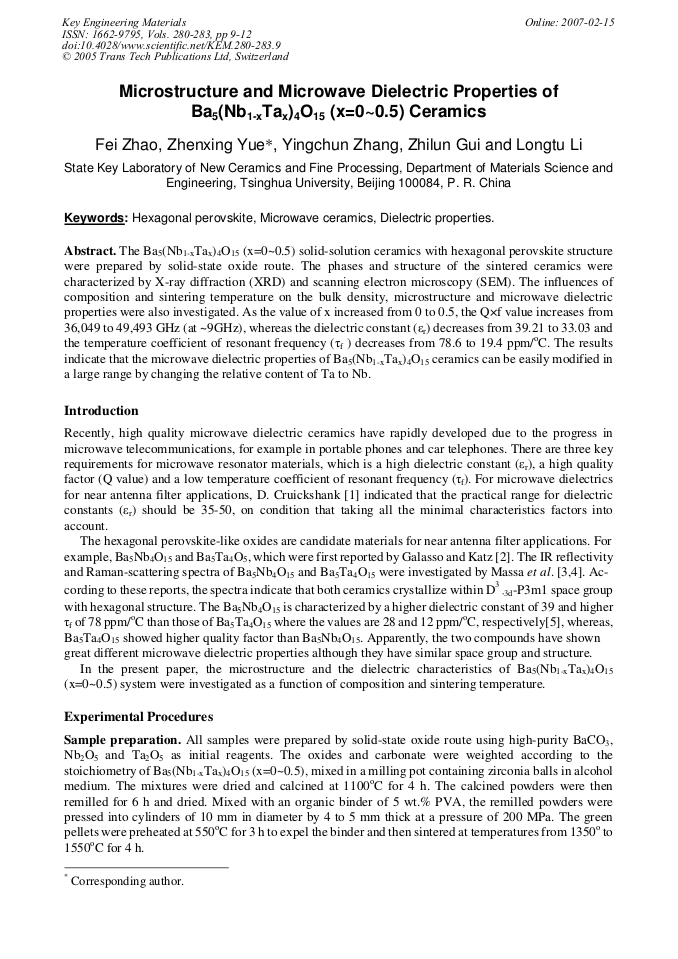

Article Preview

The Ba5(Nb1-xTax)4O15 (x=0~0.5) solid-solution ceramics with hexagonal perovskite structure were prepared by solid-state oxide route. The phases and structure of the sintered ceramics were characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The influences of composition and sintering temperature on the bulk density, microstructure and microwave dielectric properties were also investigated. As the value of x increased from 0 to 0.5, the Q×f value increases from 36,049 to 49,493 GHz (at ~9GHz), whereas the dielectric constant (εr) decreases from 39.21 to 33.03 and the temperature coefficient of resonant frequency (τf ) decreases from 78.6 to 19.4 ppm/oC. The results indicate that the microwave dielectric properties of Ba5(Nb1-xTax)4O15 ceramics can be easily modified in a large range by changing the relative content of Ta to Nb.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




F. Zhao et al., "Microstructure and Microwave Dielectric Properties of Ba5(Nb1-xTax)4O15 (x = 0 ~ 0.5) Ceramics", Key Engineering Materials, Vols. 280-283, pp. 9-12, 2005

Online since:

February 2007




[1] D. Cruickshank: J. European Ceram. Soc. Vol. 23 (2003), p.2721.

[2] F. Galasso and L. Katz: Acta Crystallogr. Vol. 14 (1961), p.647.

[3] N.E. Massa, S. Pagola and R.E. Carbonio: Phys. Rev. B. Vol. 53 (1996), p.8148.

[4] N.E. Massa, S. Pagola, R.E. Carbonio, J.A. Alonso, I. Rasines, G. Polla and G. Leyva: SPIE International symposium, San Jose, CA, USA.

[5] S. Kamba, J. Petzelt, E. Buixaderas, D. Haubrich and P. Vaněk: J. Appl. Phys. Vol. 89 (2001), p.3900.

[6] B.W. Hakki and P.D. Coleman: IRE Trans. Microwave Theory Technol. Vol. 8 (1960), p.402.

[7] R.D. Shannon: J. Appl. Phys. Vol. 73 (1993), p.348.

[8] R.D. Shannon: Acta Crystallogr. Vol. A32 (1976), p.751.
