La2O3/Al2O3/B2O3 Based Glass-Ceramics for LTCC Application

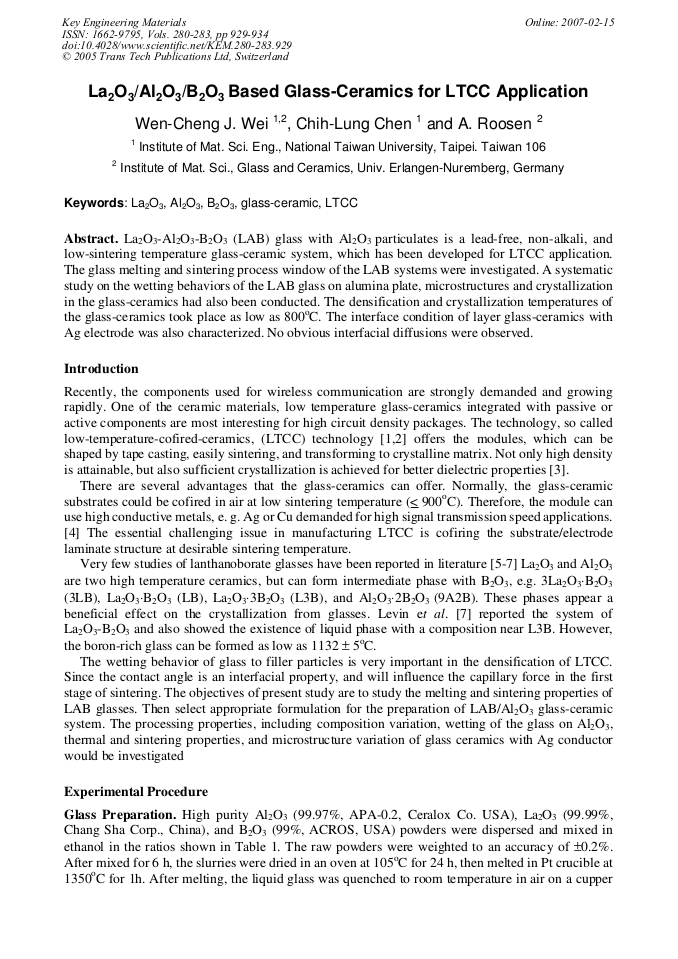

Article Preview

La2O3-Al2O3-B2O3 (LAB) glass with Al2O3 particulates is a lead-free, non-alkali, and low-sintering temperature glass-ceramic system, which has been developed for LTCC application. The glass melting and sintering process window of the LAB systems were investigated. A systematic study on the wetting behaviors of the LAB glass on alumina plate, microstructures and crystallization in the glass-ceramics had also been conducted. The densification and crystallization temperatures of the glass-ceramics took place as low as 800oC. The interface condition of layer glass-ceramics with Ag electrode was also characterized. No obvious interfacial diffusions were observed.



Key Engineering Materials (Volumes 280-283)

Edited by:

Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li




W. C. J. Wei et al., "La2O3/Al2O3/B2O3 Based Glass-Ceramics for LTCC Application", Key Engineering Materials, Vols. 280-283, pp. 929-934, 2005

Online since:

February 2007




[1] R. R. Tummata: IBM J. Res. Develop. Vol. 36 (1992), p.889.

[2] O. Dernovsek, A. Naeini, G. Preu, W. Wersing, M. Eberstein and W. A Schiller: J. Europ. Ceram. Soc. Vol. 21 (2001), p.1693.

[3] M. Eberstein, W. Schiller, O. Dernovsek and W. Wersing: Glass Sci. Technol. C1 (2000), p.73.

[4] R.R. Tummala: J. Am. Ceram. Soc. Vol. 74 (1991), p.895.

[5] I.N. Chakraborty, and D. E. Day: J. Am. Ceram. Soc. Vol. 68 (1985), p.641.

[6] R.K. Brow, D.R. Tallant and G.L. Turner: J. Am. Ceram. Soc. Vol. 79 (1996), p.2410.

[7] E.M. Levin, C.R. Robbins and J.L. Waring: J. Am. Ceram. Soc. Vol. 44 (1961), p.89.
