ATZ – A New Material with a High Potential in Joint Replacement

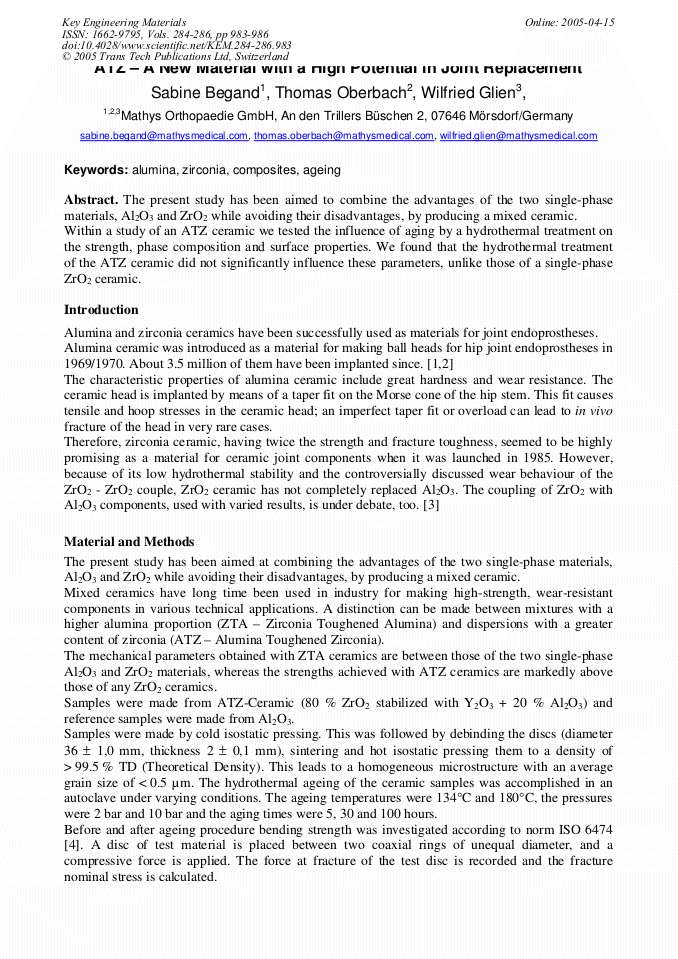

Article Preview

The present study has been aimed to combine the advantages of the two single-phase materials, Al2O3 and ZrO2 while avoiding their disadvantages, by producing a mixed ceramic. Within a study of an ATZ ceramic we tested the influence of aging by a hydrothermal treatment on the strength, phase composition and surface properties. We found that the hydrothermal treatment of the ATZ ceramic did not significantly influence these parameters, unlike those of a single-phase ZrO2 ceramic.



Key Engineering Materials (Volumes 284-286)

Main Theme:

Edited by:

Panjian Li, Kai Zhang and Clifford W. Colwell, Jr.




S. Begand et al., "ATZ – A New Material with a High Potential in Joint Replacement", Key Engineering Materials, Vols. 284-286, pp. 983-986, 2005

Online since:

April 2005




[1] Boutin PM (1972) Arthroplastic totale de hanche par prothese en alumine fritte Rev Chir Orthop 58 : 229-246.

[2] M. Thomson, G. Willmann (2003) Keramische Gleitpaarungen in der Orthopädie, Orthopäde 2003 32: 11-16.


[3] G. Willmann Bioceramics in Joint Replacement: State-of-the-art and Future Options, cfi/Ber. DKG 79 (2002) No. 5 : E27-E31.

[4] ISO 6474: Implants for surgery-Ceramic materials based on high purity alumina; International Organization for Standartization; (1994).

[5] Chevalier: Low Temperature Ageing of Y-TZP Ceramics; Journal of American Ceramic Society 82; 1999; S. 2150-2154.

[6] Herrmann, Schilm, Michael, Adler: Corrosion Behaviour of Different Technical Ceramics in Acids, Basic Solutions and under Hydrothermal Conditions; cfi/Ber. DKG 80; 2003; No. 4; S. E 27-34.


[7] Lawson, Gill, Dransfield: Hydrothermal and Corrosive Degradation of Y-TZP; Key Engineering Materials Vol. 113; 1996; S. 207-214.


[8] M. Hirano, H. Inada: Hydrothermal stability of yttria- and ceria. doped tetragonal zirconia-alumina composites; Journal of Material Science 26; 1991; S. 5047-5052.


[9] J.J. Swab: Low temperature degradation of Y-TZP materials; Journal of Material Science 26; 1991; S. 6706.

[10] ISO standard 7206/2: Implants for surgery - Partial and total hip joint prostheses Part 2: Articulating surfaces made of metallic, ceramic and plastics materials; International Organization for Standardization; (1996).
