Strength Degradation of Silicon Carbide Hot Gas Filter in the Simulated PFBC Condition

Abstract:

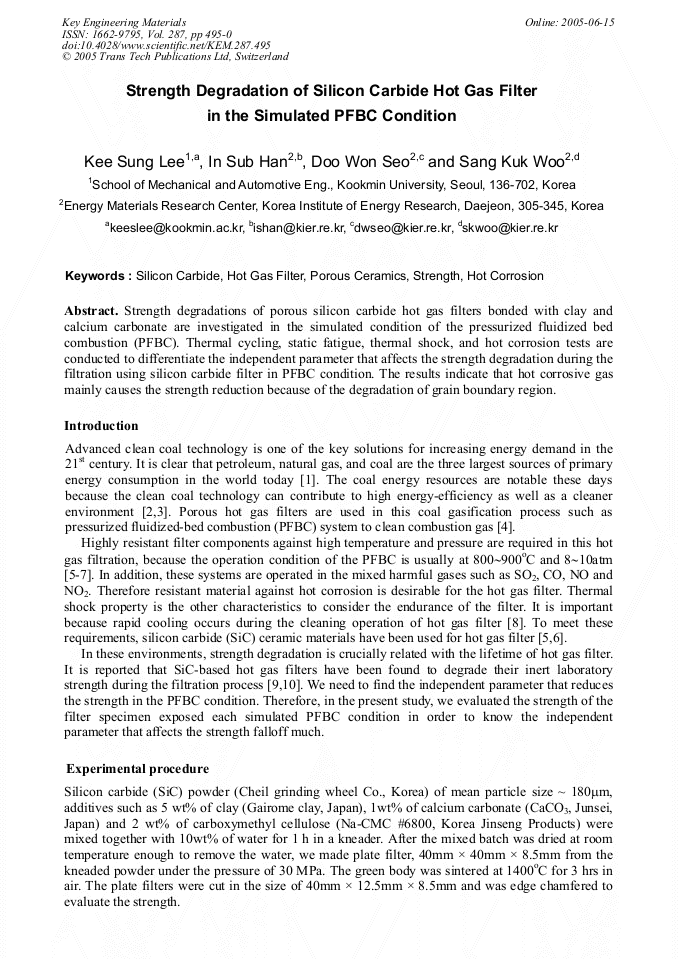

Article Preview

Strength degradations of porous silicon carbide hot gas filters bonded with clay and calcium carbonate are investigated in the simulated condition of the pressurized fluidized bed combustion (PFBC). Thermal cycling, static fatigue, thermal shock, and hot corrosion tests are conducted to differentiate the independent parameter that affects the strength degradation during the filtration using silicon carbide filter in PFBC condition. The results indicate that hot corrosive gas mainly causes the strength reduction because of the degradation of grain boundary region.

Info:

Periodical:

Edited by:

Hai-Doo Kim, Hua-Tay Lin and Michael J. Hoffmann

Pages:

495-0

Citation:

K. S. Lee et al., "Strength Degradation of Silicon Carbide Hot Gas Filter in the Simulated PFBC Condition ", Key Engineering Materials, Vol. 287, pp. 495-0, 2005

Online since:

June 2005

Export:

Price:

$38.00

[1] C. Song: Catalysis Today Vol. 77 (2002), p.17.

[2] J. Stringer and A. J. Leitch: J. Eng. Gas Turbines Power-T ASME Vol. 114 (1992), p.259.

[3] W. Duo, J. R. Grace, C. J. Lim, C. M. H. Brereton, A. P. Watkinson, and K. Laursen: Ind. Eng. Chem. Res. Vol. 38 (1990), p.260.

[4] Y. Ohzawa, K. Nomura, and K. Sugiyama: Mater. Sci. and Eng. Vol. A255 (1998), p.33.

[5] S. K. Woo, K. S. Lee, I. S. Han, D. W. Seo and Y. O. Park: J. Ceram. Soc. Japan Vol. 109 (2001), p.742.

[6] K. S. Lee, S. K. Woo, I. S. Han, D. W. Seo, S. J. Park and Y. O. Park: J. Ceram. Soc. Japan Vol. 110 (2002), p.656.

[7] R. R. Judkins, D. P. Stinton, R. G. Smith, E. M. Fischer, J. H. Eaton, B. L. Weaver, J. L. Kahnke and D. J. Pysher: J. Eng. Gas Turb. Power-T ASME Vol. 118 (1996), p.495.

DOI: https://doi.org/10.2172/52754

[8] R. A. Newby, T. E. Lippert and J. E. Lane: Am. Ceram. Soc. Bull. Vol. 70 (1991), p.1491.

[9] M. A. Alvin: Materials at High Temp. Vol. 14 (1997), p.355.

[10] P. Pastila, V. Helanti, A. P. Nikkilä and T. Mäntylä: J. Eur. Ceram. Soc. Vol. 21 (2001), p.1261.

[11] S. M. Wiedrhorn and L. H. Bolz: Fracture Mechanics of Ceramics, Vol. 2, Microstructure, Materials, and Applications (Plenum Publications, New York, USA 1974).

[12] J. G. Yeo, K. S. Lee and B. R. Lawn: J. Am. Ceram. Soc. Vol. 83 (2000), P. 1545.

[13] R. Westerheide, J. Adler, A. Walch, W. Völker, H. Buhl and D. Fister: High Temperature Gas Cleaning, Vol. II ( TH, Karlsruhe, Germany 1999). Fig. 8 - SEM microstructures of SiC plate filter after hot corrosion tests.
