The Mechanical Behavior of Water Vapor-Treated HA Coating Produced by Plasma Spraying Technique

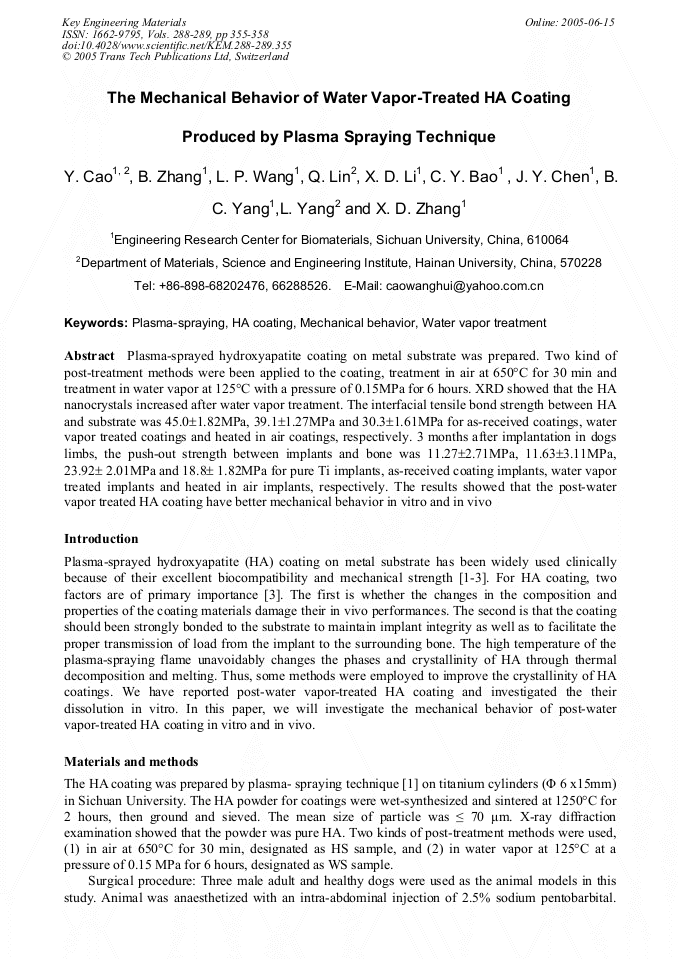

Article Preview

Plasma-sprayed hydroxyapatite coating on metal substrate was prepared. Two kind of post-treatment methods were been applied to the coating, treatment in air at 650°C for 30 min and treatment in water vapor at 125°C with a pressure of 0.15MPa for 6 hours. XRD showed that the HA nanocrystals increased after water vapor treatment. The interfacial tensile bond strength between HA and substrate was 45.0±1.82MPa, 39.1±1.27MPa and 30.3±1.61MPa for as-received coatings, water vapor treated coatings and heated in air coatings, respectively. 3 months after implantation in dogs limbs, the push-out strength between implants and bone was 11.27±2.71MPa, 11.63±3.11MPa, 23.92± 2.01MPa and 18.8± 1.82MPa for pure Ti implants, as-received coating implants, water vapor treated implants and heated in air implants, respectively. The results showed that the post-water vapor treated HA coating have better mechanical behavior in vitro and in vivo



Key Engineering Materials (Volumes 288-289)

Edited by:

Xingdong Zhang, Junzo Tanaka, Yaoting Yu and Yasuhiko Tabata




Y. Cao et al., "The Mechanical Behavior of Water Vapor-Treated HA Coating Produced by Plasma Spraying Technique ", Key Engineering Materials, Vols. 288-289, pp. 355-358, 2005

Online since:

June 2005




[1] Yang Cao et al: Biomaterials. Vol. 17 (1996), pp.419-424.

[2] Weidong Tong, et al: J. biomed. Mater. Res. Vol. 40 (1998), pp.407-413.

[3] Qiyi Zhang, et al: Biomaterials. Vol. 24 (2003), pp.4741-4748.

[4] E.M. Burke, et al: J. biomed. Mater. Res. Vol. 57 (2001), pp.41-47.

[5] Qiyi Zhang, et al: Key Eng. Mater. Vol. 240-242 (3003), pp.319-322.

[6] J.A.M. Clemens, et al: Transactions of the fifth world biomaterias congress ( may 29 to June 2, 1996, Toronto, Canada) P. 625.

[7] P. Frayssinet, et al: J Mater. Sci. Mater. Med. Vol. 5(1994), pp.11-17.

[8] W. Tong, et al: Biomaterials, Vol. 17 (1996), pp.1507-1513.

[9] Z.C. Jou, et al: Biomedical Materials Research in the Far- East (1) ( Kobunshi Kankokai, Kyoto, Japan, 1993) pp.115-116.
