Contact Fatigue in Ceramic Laminated Composites

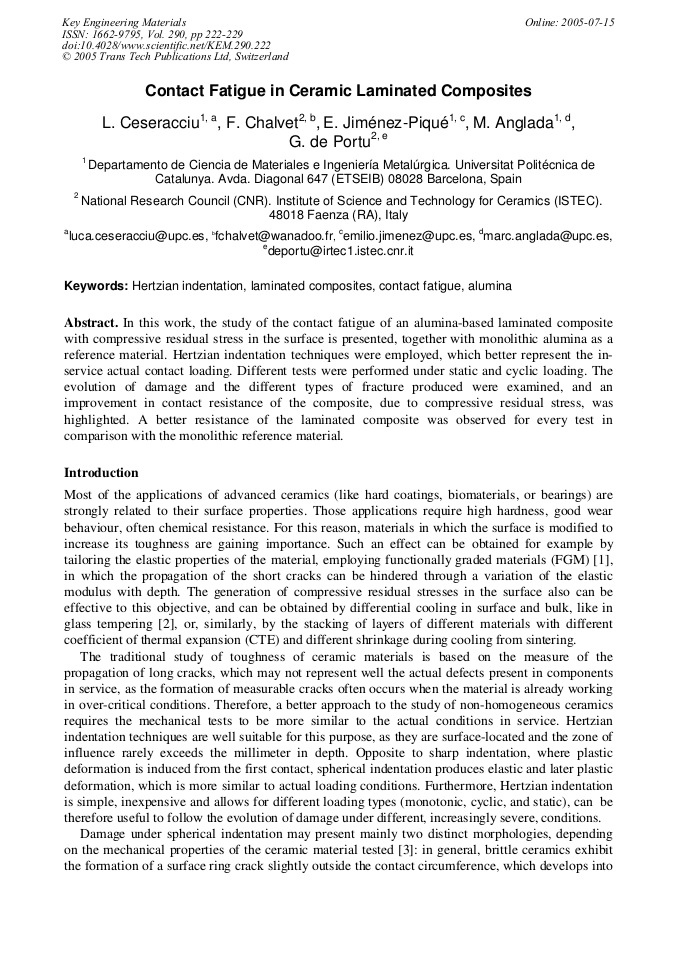

Article Preview

In this work, the study of the contact fatigue of an alumina-based laminated composite with compressive residual stress in the surface is presented, together with monolithic alumina as a reference material. Hertzian indentation techniques were employed, which better represent the inservice actual contact loading. Different tests were performed under static and cyclic loading. The evolution of damage and the different types of fracture produced were examined, and an improvement in contact resistance of the composite, due to compressive residual stress, was highlighted. A better resistance of the laminated composite was observed for every test in comparison with the monolithic reference material.



Edited by:

J. Dusza, R. Danzer and R. Morrell




L. Ceseracciu et al., "Contact Fatigue in Ceramic Laminated Composites", Key Engineering Materials, Vol. 290, pp. 222-229, 2005

Online since:

July 2005




[1] J. Jitcharoen, N.P. Padture, A. E. Giannakopoulos, S. Suresh. Hertzian-crack suppression in ceramics with elastic-modulus-graded surfaces. J. Am. Ceram. Soc. 81.


[9] (1998), pp.2301-2308.

[2] C.W. White, C.J. McKargue, P. S. Skald, L. A. Boatner, G. C. Farlow. Ion implantation and annealing of crystalline solids. Mater. Sci. Rep. 4[2-3] (1989), pp.41-46.

[3] B.R. Lawn. Indentation of ceramics with spheres: a century after Hertz. J. Am. Ceram. Soc. 81.

[8] (1998), p.1977-(1994).

[4] Y. -W. Rhee, H. -W. Kim, Y. Deng, B.R. Lawn. Brittle fracture versus quasi plasticity in ceramics: a simple predictive index. J. Am. Ceram. Soc. 84.


[3] (2001), pp.561-565.

[5] F. Toschi, C. Melandri, P. Pinasco, E. Roncari, S. Guicciardi, G. de Portu. Influence of residual stresses on the wear behavior of Alumina/Alumina-Zirconia laminated composites. J. Am. Ceram. Soc. 86.


[9] (2003), pp.1547-1553.

[6] E. Jiménez-Piqué, L. Ceseracciu, M. Anglada, G. De Portu, F. Chalvet. Hertzian contact fatigue on alumina/alumina-zirconia laminated composites. J. Eur. Ceram. Soc. In press.


[7] A. Tarlazzi, E. Roncari, P. Pinasco, S. Guicciardi, C. Melandri, G. de Portu. Tribological behaviour of Al2O3/ZrO2-ZrO2 laminates composites. Wear 244 (2000), pp.29-40.


[8] R.Z. Chen, W.H. Tuan. Thermal etching of alumina. Am. Ceram. Soc. Bull. 79.

[10] (2000), pp.83-86.

[9] D.K. Kim, Y. -G. Jung, I.M. Peterson, B.R. Lawn. Cyclic fatigue of intrinsically brittle ceramics in contact with spheres. Acta Mater. 47.


[18] (1999), pp.4711-4725.

[10] S.G. Roberts, C.W. Lawrence, Y. Bisrat, P.D. Warren, D.A. Hills. Determination of surface residual stresses in brittle materials by Hertzian indentation: theory and experiment. J. Am. Ceram. Soc. 82.


[7] (1999), pp.1809-1816.

[11] M. Suganuma, Spherical and Vickers indentation damage in yttria-stabilized tetragonal zirconia polycrystals. J. Am. Ceram. Soc 82.


[11] (1999), pp.3113-3119.

[12] C. Kocer, R.E. Collins. Angle of Hertzian cone cracks. J. Am. Ceram. Soc. 81.

[7] (1998), pp.1736-1742.

[13] M.Y. He, J.W. Hutchinson. Crack deflection at an interface between dissimilar elastic materials. J. Solid Structures 25.

[9] (1989), pp.1053-1067.
