Nanofractography of Alumina by Scanning Probe Microscopy

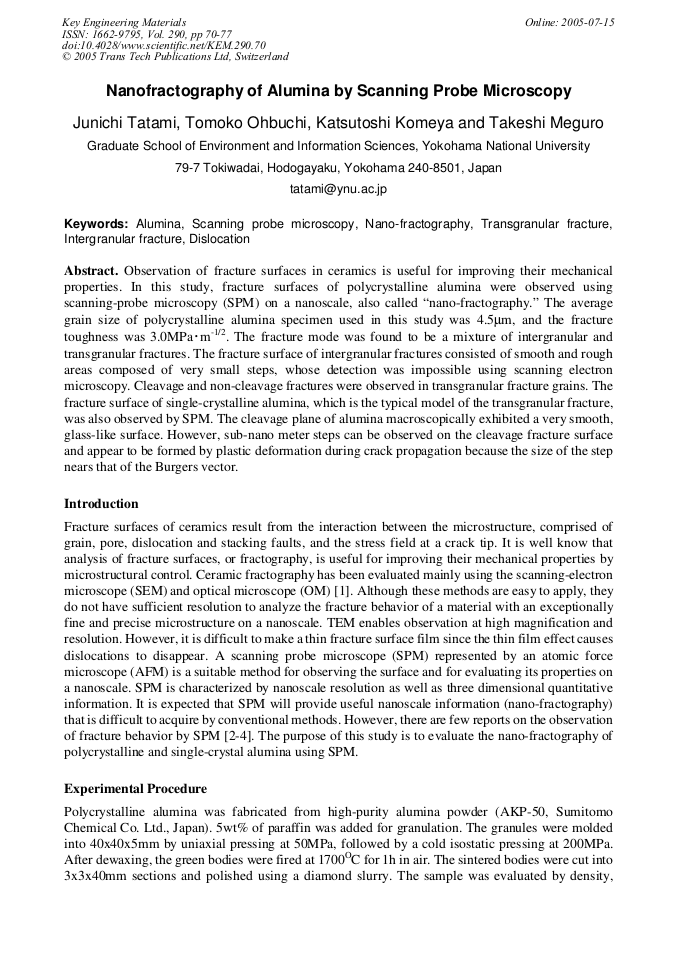

Article Preview

Observation of fracture surfaces in ceramics is useful for improving their mechanical properties. In this study, fracture surfaces of polycrystalline alumina were observed using scanning-probe microscopy (SPM) on a nanoscale, also called “nano-fractography.” The average grain size of polycrystalline alumina specimen used in this study was 4.5µm, and the fracture toughness was 3.0MPa・m-1/2. The fracture mode was found to be a mixture of intergranular and transgranular fractures. The fracture surface of intergranular fractures consisted of smooth and rough areas composed of very small steps, whose detection was impossible using scanning electron microscopy. Cleavage and non-cleavage fractures were observed in transgranular fracture grains. The fracture surface of single-crystalline alumina, which is the typical model of the transgranular fracture, was also observed by SPM. The cleavage plane of alumina macroscopically exhibited a very smooth, glass-like surface. However, sub-nano meter steps can be observed on the cleavage fracture surface and appear to be formed by plastic deformation during crack propagation because the size of the step nears that of the Burgers vector.



Edited by:

J. Dusza, R. Danzer and R. Morrell




J. Tatami et al., "Nanofractography of Alumina by Scanning Probe Microscopy", Key Engineering Materials, Vol. 290, pp. 70-77, 2005

Online since:

July 2005




[1] Yasuda, K., Tatami, J., Asada, K., Matsuo, Y. and Kimura, S., J. Ceram. Soc. Jpn., Vol. 101 (12), 1993, pp.1384-89.

[2] K. Minoshima and K. Komai, Materials Science Research International, Vol. 2, No. 4, pp.209-219.

[3] S. M. Wiederhorn et al., Observation of a crack in glass with crack arrest, J. Am. Ceram. Soc., 85.

[9] 2287-92 (2002).

[4] J. Tatami, K. Komeya and T. Meguro, Proceedings of International Symposium on Advanced Si-based Ceramics. (a) (b) 100nm 0 1. 2.

[5] Wiederhorn, S. M., Fracture of Sapphire, J. Am. Ceram. Soc., Vol. 52, 1969, pp.485-491.

[6] J. Tatami, A. Saiki, K. Yasuda and Y. Matsuo, J. Ceram. Soc. Japan, 107.

[11] 1063-66 (1999).

[7] Carter. C. B. and Morrissey, K. J., Grain-Boundary Structure in Al2O3, in Advances in Ceramics, Volume 10, Kingery, W. D., Ed., The American Ceramics Society, Columbus, Ohio, 1984, pp.303-323.
