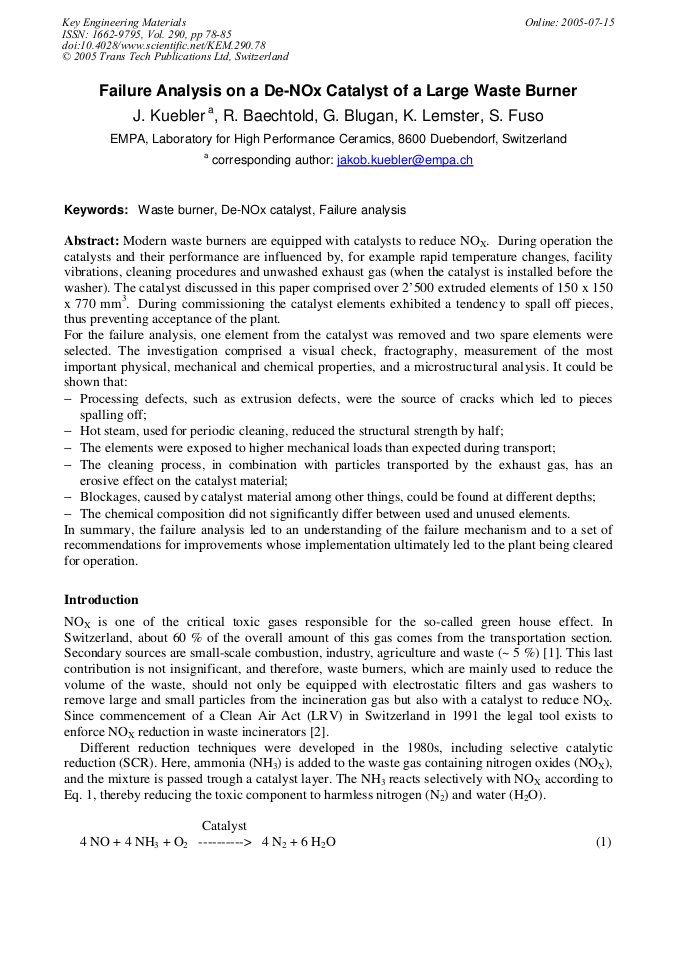

Failure Analysis on a De-NOx Catalyst of a Large Waste Burner
Modern waste burners are equipped with catalysts to reduce NOX. During operation the catalysts and their performance are influenced by, for example rapid temperature changes, facility vibrations, cleaning procedures and unwashed exhaust gas (when the catalyst is installed before the washer). The catalyst discussed in this paper comprised over 2’500 extruded elements of 150 x 150 x 770 mm3. During commissioning the catalyst elements exhibited a tendency to spall off pieces, thus preventing acceptance of the plant. For the failure analysis, one element from the catalyst was removed and two spare elements were selected. The investigation comprised a visual check, fractography, measurement of the most important physical, mechanical and chemical properties, and a microstructural analysis. It could be shown that: − Processing defects, such as extrusion defects, were the source of cracks which led to pieces spalling off; − Hot steam, used for periodic cleaning, reduced the structural strength by half; − The elements were exposed to higher mechanical loads than expected during transport; − The cleaning process, in combination with particles transported by the exhaust gas, has an erosive effect on the catalyst material; − Blockages, caused by catalyst material among other things, could be found at different depths; − The chemical composition did not significantly differ between used and unused elements. In summary, the failure analysis led to an understanding of the failure mechanism and to a set of recommendations for improvements whose implementation ultimately led to the plant being cleared for operation.
J. Dusza, R. Danzer and R. Morrell
J. Kübler et al., "Failure Analysis on a De-NOx Catalyst of a Large Waste Burner", Key Engineering Materials, Vol. 290, pp. 78-85, 2005
