Fatigue Life Evaluation of Vehicle Wheel Bolts under Random Loading

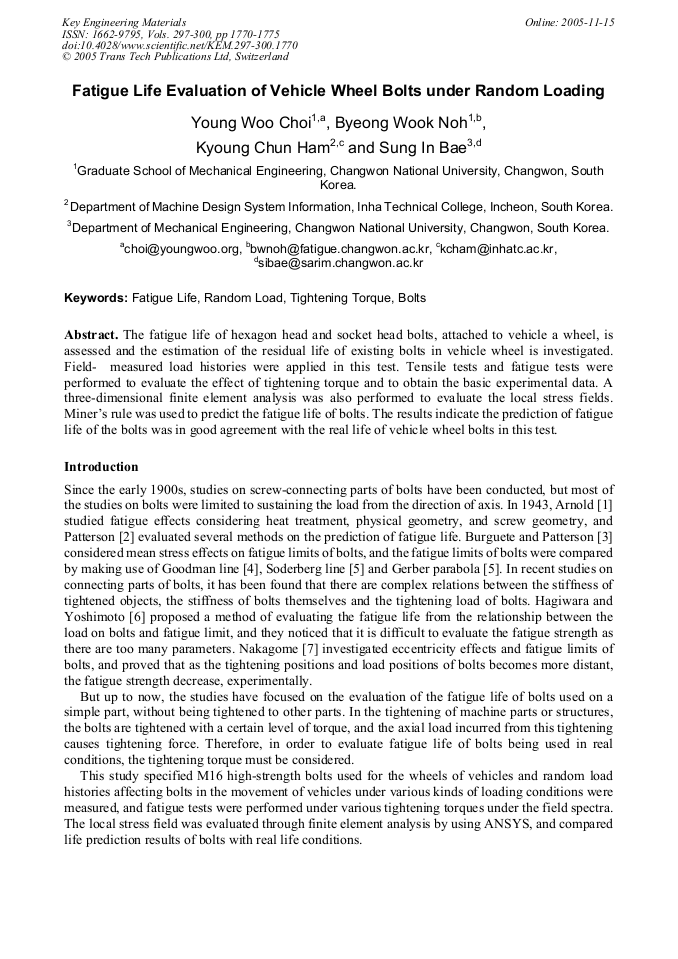

Article Preview

The fatigue life of hexagon head and socket head bolts, attached to vehicle a wheel, is assessed and the estimation of the residual life of existing bolts in vehicle wheel is investigated. Field- measured load histories were applied in this test. Tensile tests and fatigue tests were performed to evaluate the effect of tightening torque and to obtain the basic experimental data. A three-dimensional finite element analysis was also performed to evaluate the local stress fields. Miner’s rule was used to predict the fatigue life of bolts. The results indicate the prediction of fatigue life of the bolts was in good agreement with the real life of vehicle wheel bolts in this test.



Key Engineering Materials (Volumes 297-300)

Edited by:

Young-Jin Kim, Dong-Ho Bae and Yun-Jae Kim




Y. W. Choi et al., "Fatigue Life Evaluation of Vehicle Wheel Bolts under Random Loading ", Key Engineering Materials, Vols. 297-300, pp. 1770-1775, 2005

Online since:

November 2005




[1] S.M. Arnold: Effects of Screw Threads on Fatigue, Mech Eng (1943), pp.497-505.

[2] E.A. Patterson: A Comparative Study of Methods for Estimating Bolt Fatigue Limits, Fatigue Fract Eng Mater Struct. Vol. 13 No. 1 (1990), pp.59-81.

DOI: https://doi.org/10.1016/0142-1123(91)90441-z

[3] R.L. Burguete and E.A. Patterson: The Effect of Mean Stress on the Fatigue Limit of High Tensile Bolts, Proc Inst Mech Engrs (1995), pp.257-262.

DOI: https://doi.org/10.1016/s0142-1123(97)90094-3

[4] J.E. Shigley and C.R. Mischke: Mechanical Engineering Design, McGraw-Hill (1989), pp.234-298.

[5] N.H. Cook: Mechanics and Materials for Design, McGraw-Hill (1985), pp.134-186.

[6] M. Hagiwara and I. Yoshimoto: The Relation Between Load and Strength in Bolted Joints Subject to Fatigue Loading, Bull JSME (1896), pp.3917-3922.

DOI: https://doi.org/10.1299/jsme1958.29.3917

[7] M. Nakagome, K. Yasuda and M. Mizuno: Fatigue Strength of Bolted Connections under Conditions of Eccentric Clamping and Eccentric Loading, Bull JSPE (1987), pp.275-280.

[8] American Society for Testing and Materials, Annual Book of ASTM Standards, Section 3: Material Test Methods and Analytical Procedures Vol. 03. 01-Metals Mechanical Testing; Evaluated and Low-Temperature Tests, ASTM, Philadelphia (2002).

[9] M.A. Miner: Cumulative Damage in Fatigue, ASME (1945), pp. A158-164.
