High Temperature Oxidation Behavior and Strength of Ti-Al-Nb Ternary Alloys

Abstract:

Article Preview

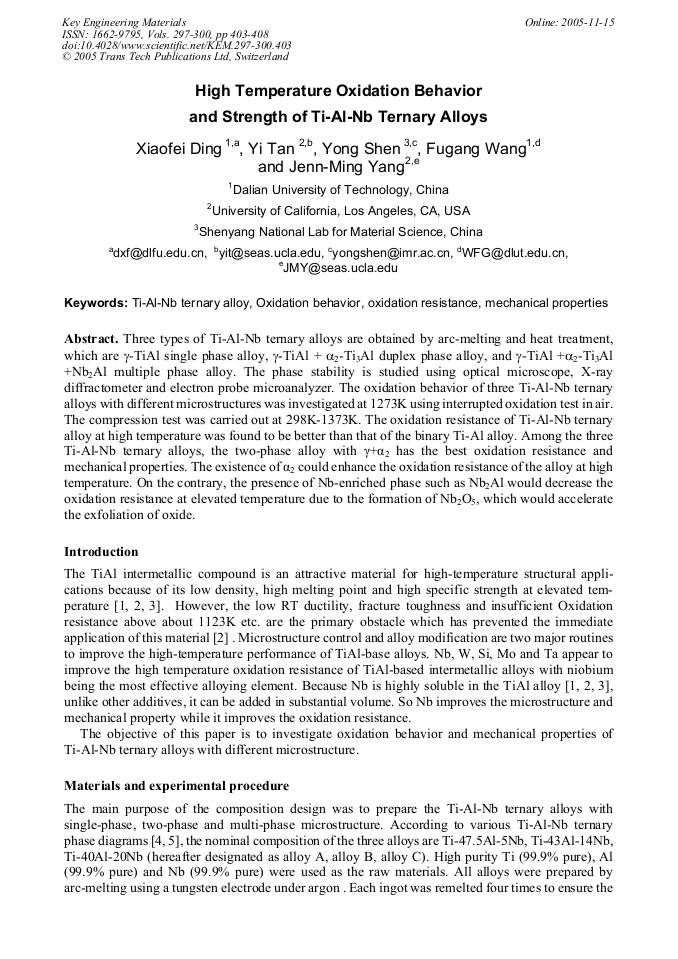

Three types of Ti-Al-Nb ternary alloys are obtained by arc-melting and heat treatment, which are γ-TiAl single phase alloy, γ-TiAl + α2-Ti3Al duplex phase alloy, and γ-TiAl +α2-Ti3Al +Nb2Al multiple phase alloy. The phase stability is studied using optical microscope, X-ray diffractometer and electron probe microanalyzer. The oxidation behavior of three Ti-Al-Nb ternary alloys with different microstructures was investigated at 1273K using interrupted oxidation test in air. The compression test was carried out at 298K-1373K. The oxidation resistance of Ti-Al-Nb ternary alloy at high temperature was found to be better than that of the binary Ti-Al alloy. Among the three Ti-Al-Nb ternary alloys, the two-phase alloy with γ+α2 has the best oxidation resistance and mechanical properties. The existence of α2 could enhance the oxidation resistance of the alloy at high temperature. On the contrary, the presence of Nb-enriched phase such as Nb2Al would decrease the oxidation resistance at elevated temperature due to the formation of Nb2O5, which would accelerate the exfoliation of oxide.

Info:

Periodical:

Key Engineering Materials (Volumes 297-300)

Edited by:

Young-Jin Kim, Dong-Ho Bae and Yun-Jae Kim

Pages:

403-408

Citation:

X. F. Ding et al., "High Temperature Oxidation Behavior and Strength of Ti-Al-Nb Ternary Alloys ", Key Engineering Materials, Vols. 297-300, pp. 403-408, 2005

Online since:

November 2005

Export:

Price:

$41.00

[1] Y.W. Kim: Intermetallic Alloys Based on Gama Titanium Aluminide. JOM, Vol. 7 (1989), p.24.

[2] Y.G. Zhang, Y.F. Han , G.L. Chen and J.T. Guo : Structural Intermetallics (National Defense Industry Press, China 2001).

[3] M. Eckert, D. Kath and K. Hilpert: Metall. Mater. Trans. A, 30 (1999), p.1315.

[4] H.L. Qu, L. Zhou and H.R. Wei: Rare Metal Materials and Engineering, 29 (1) (2000), p.8.

[5] Jin-Jun Ding and Shi-Ming Hao: Intermetallics, 6 (1998), pp.329-334.

[6] H. Anada and Y. Shida: Oxid. Met., 45 [1-2] (1996), p.197.

[7] H. Anada and Y. Shida: Corr. Sci., 35 [5-8] (1993), p.945.

[8] H. Anada and Y. Shida: Mater. Trans., JIM 34 (3) (1993), p.263.

[9] Heng Qiang Ye: Mater. Sci. Eng., A, 263, A (1999), pp.289-295.

[10] Y.H. He, B.Y. Huang, X.H. Qu, C.M. Lei and L.H. Chen: J. Aeronautical Mater. 15 (3) (1995), p.19.

[11] K. Maki, M. Shioda and M. Sayashi: Mater. Sci. Eng., A153 (1992), pp.591-596.

[12] V.A.C. Haanappel, H. Clemens and M.F. Stroosnijder: Intermetaliics, 10 (2002), pp.293-305.

[13] H.W. Lavendel and A.G. Elliot: Trans. Metall. Soc. AIME, 239 (1967), p.143.

[14] A. Hishinuma, M. Tabuchi, T. Sawai and K. Nakata: Phys. Stat. Sol., (a) 167 (1998), p.521.

[15] S. Isobe: Materia Japan, 35 (1996), p.1114.
