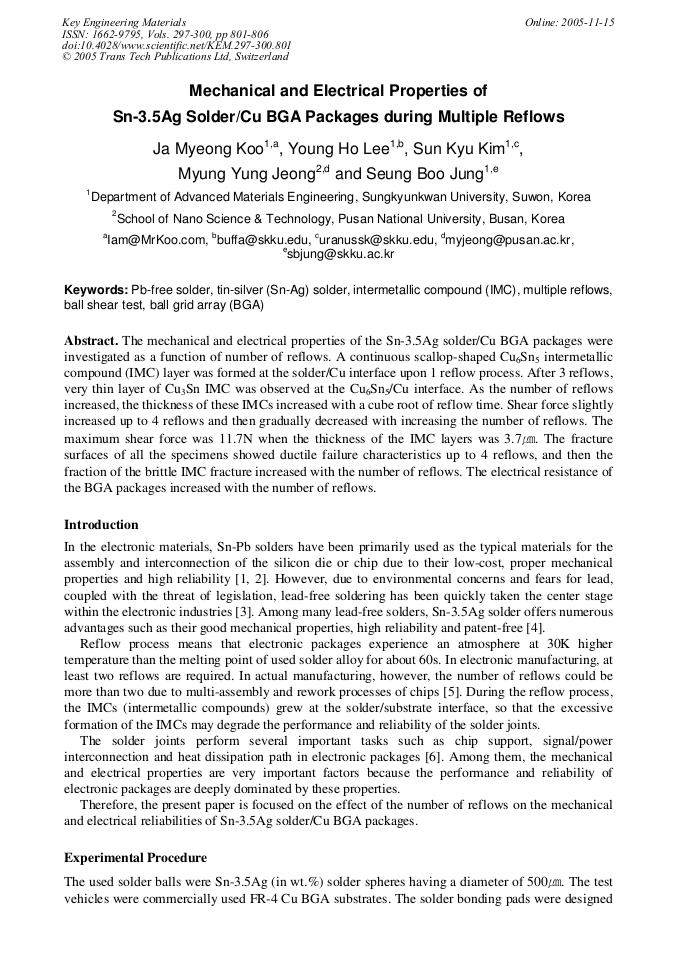

The mechanical and electrical properties of the Sn-3.5Ag solder/Cu BGA packages were investigated as a function of number of reflows. A continuous scallop-shaped Cu6Sn5 intermetallic compound (IMC) layer was formed at the solder/Cu interface upon 1 reflow process. After 3 reflows, very thin layer of Cu3Sn IMC was observed at the Cu6Sn5/Cu interface. As the number of reflows increased, the thickness of these IMCs increased with a cube root of reflow time. Shear force slightly increased up to 4 reflows and then gradually decreased with increasing the number of reflows. The maximum shear force was 11.7N when the thickness of the IMC layers was 3.7㎛. The fracture surfaces of all the specimens showed ductile failure characteristics up to 4 reflows, and then the fraction of the brittle IMC fracture increased with the number of reflows. The electrical resistance of the BGA packages increased with the number of reflows.
