Study on Wear Mode of Silicon Nitride Balls in Lapping Process

Abstract:

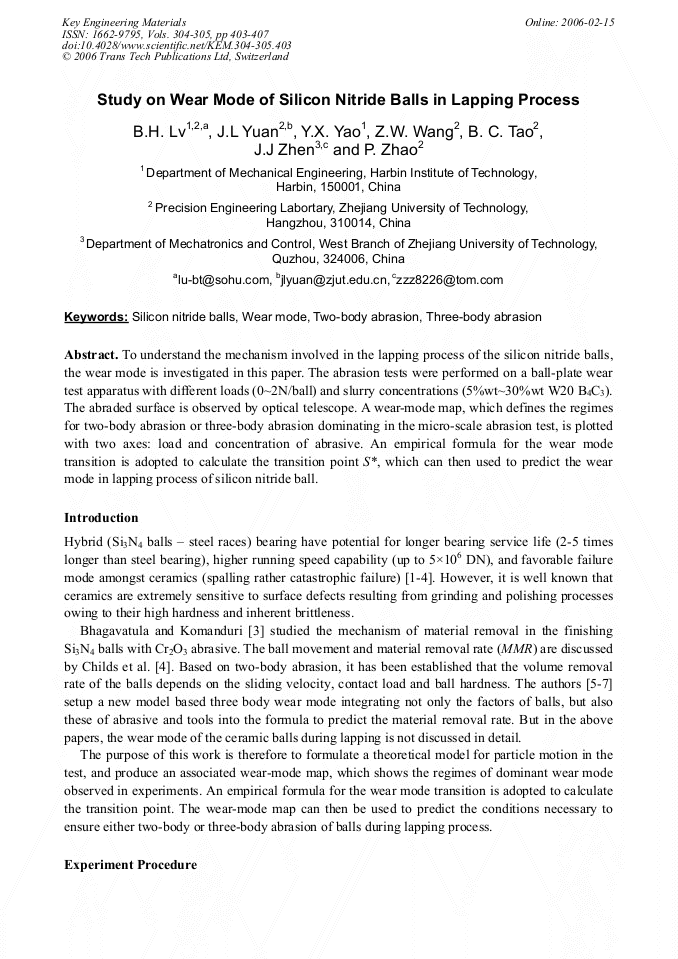

Article Preview

To understand the mechanism involved in the lapping process of the silicon nitride balls, the wear mode is investigated in this paper. The abrasion tests were performed on a ball-plate wear test apparatus with different loads (0~2N/ball) and slurry concentrations (5%wt~30%wt W20 B4C3). The abraded surface is observed by optical telescope. A wear-mode map, which defines the regimes for two-body abrasion or three-body abrasion dominating in the micro-scale abrasion test, is plotted with two axes: load and concentration of abrasive. An empirical formula for the wear mode transition is adopted to calculate the transition point S*, which can then used to predict the wear mode in lapping process of silicon nitride ball.

Info:

Periodical:

Key Engineering Materials (Volumes 304-305)

Edited by:

Guangqi Cai, Xipeng Xu and Renke Kang

Pages:

403-407

DOI:

10.4028/www.scientific.net/KEM.304-305.403

Citation:

B. H. Lv et al., "Study on Wear Mode of Silicon Nitride Balls in Lapping Process", Key Engineering Materials, Vols. 304-305, pp. 403-407, 2006

Online since:

February 2006

Export:

Price:

$38.00

[1] M. Jiang, and R. Komanduri: Key Engineering Materials, Vols. 202-203 (2001), pp.1-14.

[2] Y. Tani, and K. Kawata: Annals of the CIRP, Vol. 33 (1984), pp.217-220.

[3] S. R. Bhagavatula, and R. Komanduri: Philosophical Magazine, Vol. 74 (1996), pp.1003-1017.

[4] T.H.C. Childs, D.A. Jones, S. Mahmood, B. Zhang, K. Kato, and N. Umehara: Wear, Vols. 189-198 (1994), pp.13-15.

[5] B.H. Lv, J.L. Yuan, Y.X. Yao, M. Chang, and Z.W. Wang: Transaction of Shandong University, Vol. 34 (2004).

[6] J.L. Yuan, L.N. Chen, P. Zhao, M. Chang, T. Xing and B.H. Lv: Key Engineering Materials, Vols. 259-260 (2003), pp.195-200.

[7] B.H. Lv, J.L. Yuan, Y.X. Yao, Z.W. Wang, and F.Y. Lou: 7th International Conference on Progress of Machining Technology, Suzhou China, (2004).

[8] K.L. Rutherford, and I.M. Hutchings: J. Test. Eval. Am. Soc. Test. Mater (JTEVA), Vol. 25 (1997) No. 2, pp.250-260.

[9] K. Adachi, K. Kato, and N. Chen: Wear, Vols. 203-204 (1997), pp.291-301.

[10] R.I. Trezona, D.N. Allsopp, and I.M. Hutchings: Wear, Vols. 225-229 (1999), pp.205-214.

[11] K. Adachi, and I.M. Hutchings: Wear, Vol. 255 (2003), pp.23-29.

[12] J.A. Williams, and A.M. Hyncica: Wear, Vol. 152 (1992), pp.57-74.
