Power Consumption of Piezo-Composite Actuator at Resonance Frequency

Abstract:

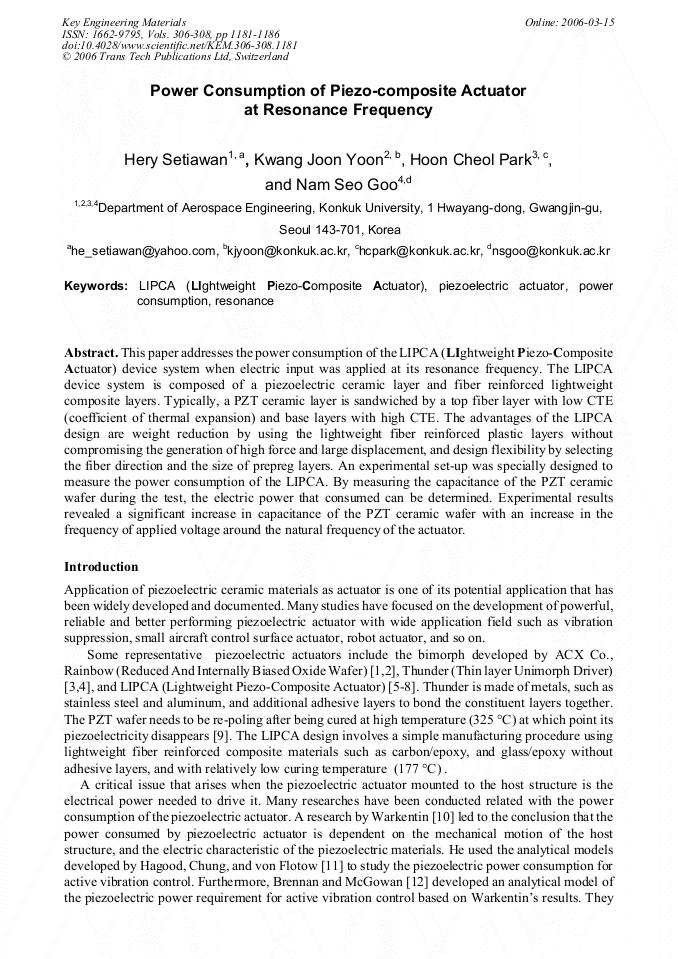

Article Preview

This paper addresses the power consumption of the LIPCA (LIghtweight Piezo-Composite Actuator) device system when electric input was applied at its resonance frequency. The LIPCA device system is composed of a piezoelectric ceramic layer and fiber reinforced lightweight composite layers. Typically, a PZT ceramic layer is sandwiched by a top fiber layer with low CTE (coefficient of thermal expansion) and base layers with high CTE. The advantages of the LIPCA design are weight reduction by using the lightweight fiber reinforced plastic layers without compromising the generation of high force and large displacement, and design flexibility by selecting the fiber direction and the size of prepreg layers. An experimental set-up was specially designed to measure the power consumption of the LIPCA. By measuring the capacitance of the PZT ceramic wafer during the test, the electric power that consumed can be determined. Experimental results revealed a significant increase in capacitance of the PZT ceramic wafer with an increase in the frequency of applied voltage around the natural frequency of the actuator.

Info:

Periodical:

Key Engineering Materials (Volumes 306-308)

Edited by:

Ichsan Setya Putra and Djoko Suharto

Pages:

1181-1186

Citation:

H. Setiawan et al., "Power Consumption of Piezo-Composite Actuator at Resonance Frequency", Key Engineering Materials, Vols. 306-308, pp. 1181-1186, 2006

Online since:

March 2006

Export:

Price:

$38.00

[1] G.H. Haertling: Rainbow Actuators and Sensors: A New Smart Technology: Proceeding of SPIE Conference, Vol. 3040 (San Diego CA, 3-4 March 1997), pp.81-92.

[2] S.A. Wise: Displacement properties of RAINBOW and THUNDER piezoelectric actuators: Sensors and Actuators, A69 (1998), pp.33-38.

DOI: https://doi.org/10.1016/s0924-4247(97)01745-7

[3] K.M. Mossi and R.P. Bishop: Characterization of Different Types of High Performance THUNDER: Proceeding of SPIE conference, Vol. 3675-05 (Newport Beach, CA, 1-5 March 1999).

[4] J.L. Pinkerton and R.W. Moses: A Feasibility Study to Control Airfoil Shape using THUNDER TM: NASA Technical Memorandum, Vol. 4767 (1997).

[5] K.J. Yoon, S. Shin, H.C. Park, and N.S. Goo: Design and manufacture of a lightweight piezo-composite curved actuator: Smart Materials and Structures, Vol. 11 (2002), pp.163-168.

DOI: https://doi.org/10.1088/0964-1726/11/1/401

[6] K.J. Yoon, K.H. Park, S.K. Lee, N.S. Goo, H.C. Park: Analytical design model for piezo-composite unimorph actuator and its verification using LIPCAs: Smart Materials and Structures, Vol. 13 (2004), pp.1-9.

DOI: https://doi.org/10.1088/0964-1726/13/3/002

[7] K. J. Yoon, K.H. Park and H.C. Park: Thermal deformation analysis of curved actuator LIPCA with a piezoelectric ceramic layer and fiber composite layers: Composite Science and Technology, Vol. 63 (2003), pp.501-506.

DOI: https://doi.org/10.1016/s0266-3538(02)00221-x

[8] N.S. Goo and K.J. Yoon: Analysis of LIPCA Actuators: International Journal of Modern Physics B, Vol. 17 (2003), pp.647-652.

[9] R. Hellbaum, R.G. Bryant, and R.L. Fox: Thin Layer Composite Unimorph Ferroelectric Driver and Sensor: United States Patent No. 5-632-841 (1997).

[10] D.J. Warkentin and E.F. Crawley: Power Amplification for Piezoelectric Actuators in Controlled Structures: (MIT Space Engineering Research Center, Massachusetts, SERC #4-95, 1995).

[11] N.W. Hagood, W.H. Chung, and A. von Flotow: Modeling of Piezoelectric Actuator Dynamics for Active Structural Control: Journal of Intell. Mat. Sys. And Struc, Vol. 1, pp.327-354.

[12] M.C. Brennan and A.M. McGowan: Piezoelectric power requirements for active vibration control: Proceeding of SPIE, Smart Structures and Materials, Vol. 3039 (1997), p.660.

[13] S.A. Wise and M.W. Hooker: Characterization of Multilayer Piezoelectric Actuators for Use in Active Isolation Mounts: NASA Technical Memorandum, Vol. 4742 (1997).
