Detection of Surface Flaw in a Homogeneous Ceramic Product by Resonant Ultrasound

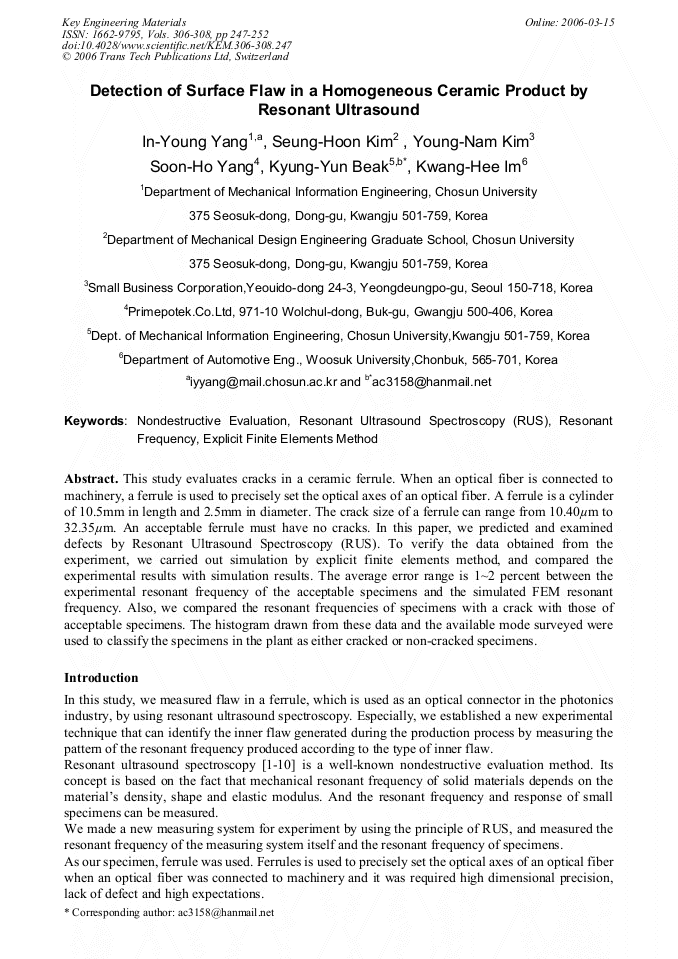

Article Preview

This study evaluates cracks in a ceramic ferrule. When an optical fiber is connected to machinery, a ferrule is used to precisely set the optical axes of an optical fiber. A ferrule is a cylinder of 10.5mm in length and 2.5mm in diameter. The crack size of a ferrule can range from 10.40m to 32.35m. An acceptable ferrule must have no cracks. In this paper, we predicted and examined defects by Resonant Ultrasound Spectroscopy (RUS). To verify the data obtained from the experiment, we carried out simulation by explicit finite elements method, and compared the experimental results with simulation results. The average error range is 1~2 percent between the experimental resonant frequency of the acceptable specimens and the simulated FEM resonant frequency. Also, we compared the resonant frequencies of specimens with a crack with those of acceptable specimens. The histogram drawn from these data and the available mode surveyed were used to classify the specimens in the plant as either cracked or non-cracked specimens.



Key Engineering Materials (Volumes 306-308)

Edited by:

Ichsan Setya Putra and Djoko Suharto




I. Y. Yang et al., "Detection of Surface Flaw in a Homogeneous Ceramic Product by Resonant Ultrasound", Key Engineering Materials, Vols. 306-308, pp. 247-252, 2006

Online since:

March 2006




[1] Maynard. J: Physics Today(1996), pp.26-31.

[2] Schwarz. R. B, Vuorinen. J. F: Journal of Alloys and Compounds(2000), Vol 310, pp.243-250.

[3] Saxton. J. G: The American Ceramic Society Bulletin(1996), Vol 75, pp.48-50.

[4] Ledetter. H, Fortunko. C, Heyliger. P: Journal of Applied Physics(1995), Vol 78, pp.1542-1546.

[5] Ledbetter. H, Lei. M, Herman . A, Sheng. Z: Physica C(1994), Vol 225, pp.397-403.

[6] Sarrao. J. L, Chen. S. R, Visscher. W. M, Lei. M, Kocks. U. F, Migliori. A: Review of Scientific Instruments(1994), Vol 65, pp.2139-2140.

[7] Spoor. P. S, Maynard. J. D, Kortan. A. R: Physical Review Letters(1995), Vol 75, pp.3462-3465.

[8] Migliori. A, Darling. T. W: Ultrasonics(1996), Vol 34, pp.473-476.

[9] Rhodes. G. W, Willis. F. A: Materials Evaluation(1998), Vol 56, pp.600-605.

[10] Heyliger. P, Ledbetter. H: Journal of Nondestructive Evaluation(1998), Vol 17, pp.79-87.
