Roof Bolts Broken Mechanism and Their Reasonable Construction Structures

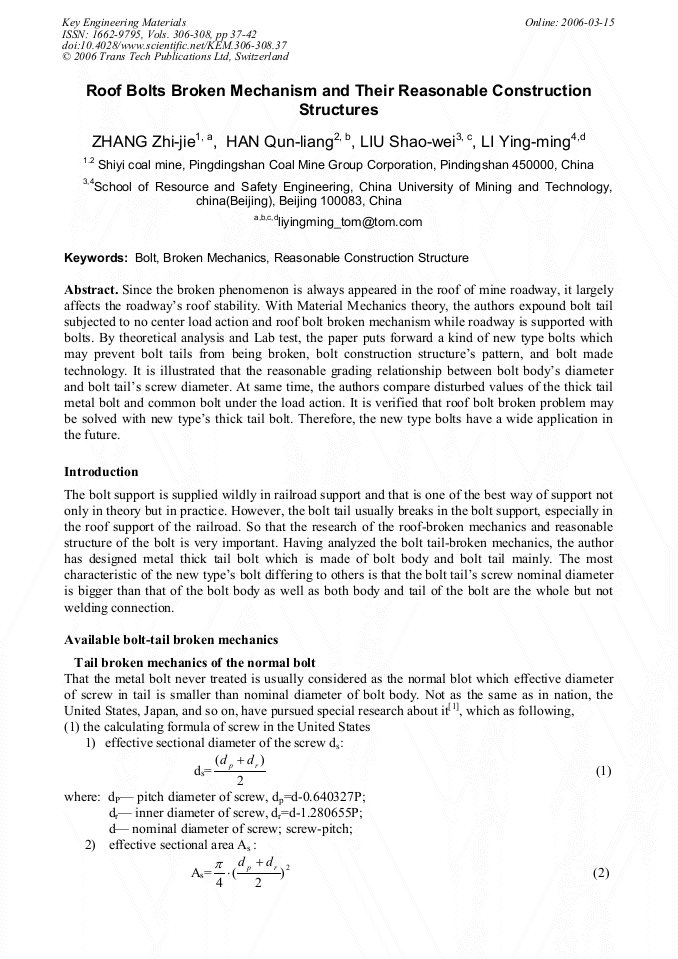

Article Preview

Since the broken phenomenon is always appeared in the roof of mine roadway, it largely affects the roadway’s roof stability. With Material Mechanics theory, the authors expound bolt tail subjected to no center load action and roof bolt broken mechanism while roadway is supported with bolts. By theoretical analysis and Lab test, the paper puts forward a kind of new type bolts which may prevent bolt tails from being broken, bolt construction structure’s pattern, and bolt made technology. It is illustrated that the reasonable grading relationship between bolt body’s iameter and bolt tail’s screw diameter. At same time, the authors compare disturbed values of the thick tail metal bolt and common bolt under the load action. It is verified that roof bolt broken problem may be solved with new type’s thick tail bolt. Therefore, the new type bolts have a wide application in the future.



Key Engineering Materials (Volumes 306-308)

Edited by:

Ichsan Setya Putra and Djoko Suharto




Z. J. Zhang et al., "Roof Bolts Broken Mechanism and Their Reasonable Construction Structures", Key Engineering Materials, Vols. 306-308, pp. 37-42, 2006

Online since:

March 2006




[1] J. E higli: mechanical engineering design. Publish house people educational 1981(1).

[2] Liu hong wen: material mechanics publish house of higher educational 1982(10).

[3] WANG Mingsu: search mechanics of full-length anchoring and bolt journal of china coal society. 1983(10).

[4] TANG Lei LU Shiliang, test process of draw bolt ground pressure and strata control 1996(2).
