An Analysis and Experimental Study of the Rotor Blade with Composite Material Fiber Reinforced Plastics

Abstract:

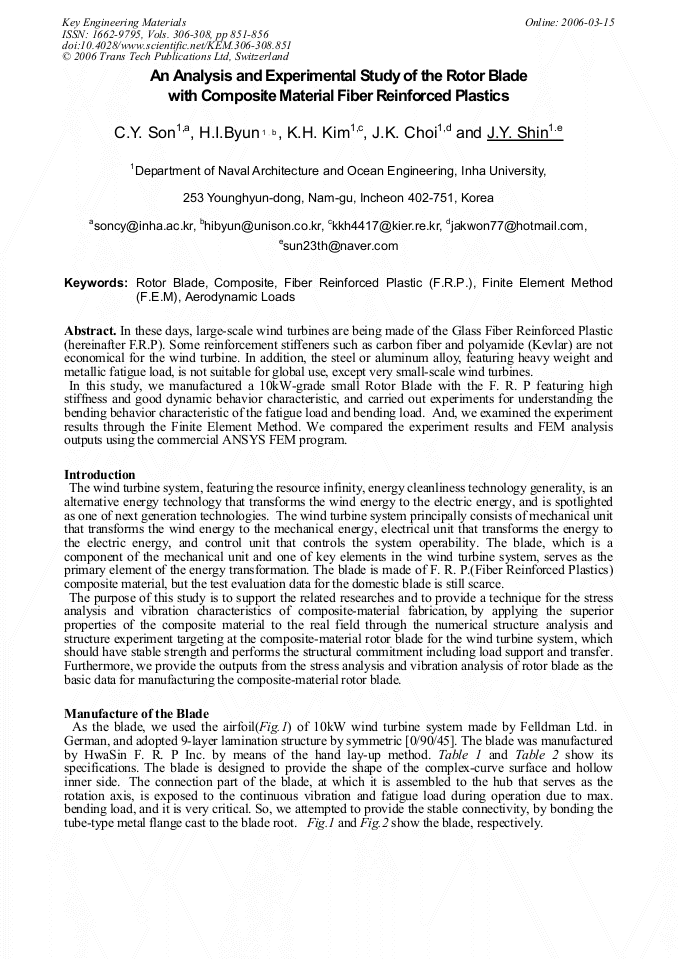

Article Preview

In these days, large-scale wind turbines are being made of the Glass Fiber Reinforced Plastic (hereinafter F.R.P). Some reinforcement stiffeners such as carbon fiber and polyamide (Kevlar) are not economical for the wind turbine. In addition, the steel or aluminum alloy, featuring heavy weight and metallic fatigue load, is not suitable for global use, except very small-scale wind turbines. In this study, we manufactured a 10kW-grade small Rotor Blade with the F. R. P featuring high stiffness and good dynamic behavior characteristic, and carried out experiments for understanding the bending behavior characteristic of the fatigue load and bending load. And, we examined the experiment results through the Finite Element Method. We compared the experiment results and FEM analysis outputs using the commercial ANSYS FEM program.

Info:

Periodical:

Key Engineering Materials (Volumes 306-308)

Edited by:

Ichsan Setya Putra and Djoko Suharto

Pages:

851-856

DOI:

10.4028/www.scientific.net/KEM.306-308.851

Citation:

C.Y. Son et al., "An Analysis and Experimental Study of the Rotor Blade with Composite Material Fiber Reinforced Plastics", Key Engineering Materials, Vols. 306-308, pp. 851-856, 2006

Online since:

March 2006

Export:

Price:

$35.00

[1] Michael Chun-Yung Nie, 1992, Composite Airframe structure., Conmilit Press Ltd.

[2] D.H. Middleton, 1990, Composite Materials in Aircraft Structure., Longman S. &T.

[3] Martin O. L. Hansen. 2000, Aerodynamics of Wind Turbines, James & James Ltd.

[4] Choong-Yul Son and Jae-Kwon Choi , An Experimental Study on Bending Analysis of the 10kW class Rotor Blade with Fiber Reinforced Plastics, , World Wind Energy Conference, (2004).

[5] Choong-Yul Son and Jae-Kwon Choi, An Experimental Study on the Vibration Characteristics of the Rotor Blade with Fiber Reinforced Plastics, , European Wind Energy Conference, (2004).

[6] IEC TC88 WG8, 1998, Wind Turbine Generator Systems-Part23: Full-scale structural testing of rotor blades, International Electro technical Commission[IEC], p.12.
