Microstructural Characterization of Fine-Grained Pb(Zr0.52Ti0.48)O3 Ceramics Fabricated by a Spark Plasma Sintering

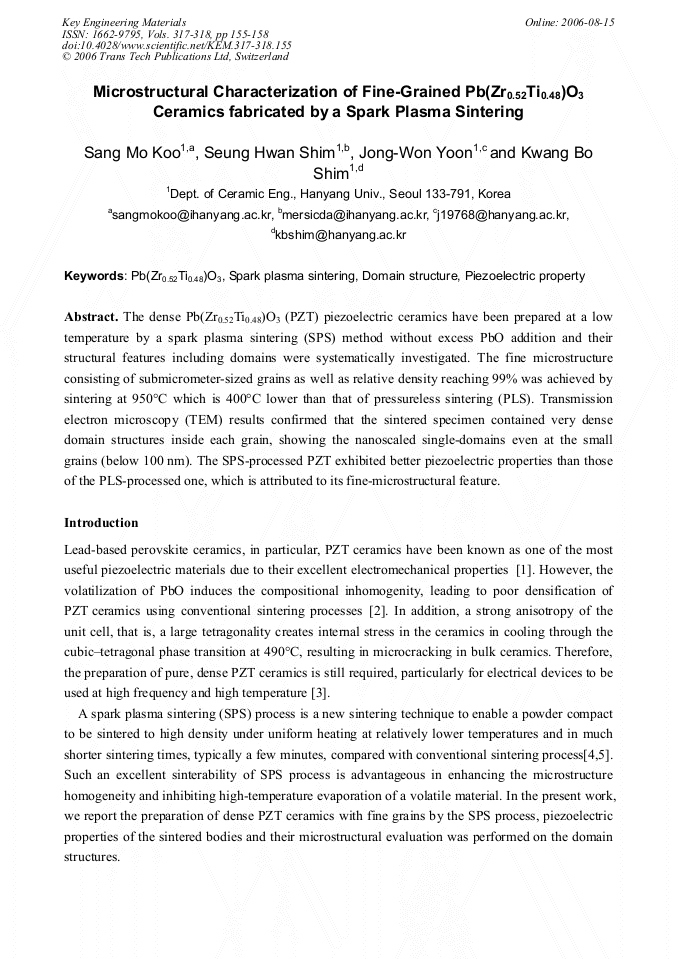

Article Preview

The dense Pb(Zr0.52Ti0.48)O3 (PZT) piezoelectric ceramics have been prepared at a low temperature by a spark plasma sintering (SPS) method without excess PbO addition and their structural features including domains were systematically investigated. The fine microstructure consisting of submicrometer-sized grains as well as relative density reaching 99% was achieved by sintering at 950°C which is 400°C lower than that of pressureless sintering (PLS). Transmission electron microscopy (TEM) results confirmed that the sintered specimen contained very dense domain structures inside each grain, showing the nanoscaled single-domains even at the small grains (below 100 nm). The SPS-processed PZT exhibited better piezoelectric properties than those of the PLS-processed one, which is attributed to its fine-microstructural feature.



Key Engineering Materials (Volumes 317-318)

Edited by:

T. Ohji, T. Sekino and K. Niihara




S. M. Koo et al., "Microstructural Characterization of Fine-Grained Pb(Zr0.52Ti0.48)O3 Ceramics Fabricated by a Spark Plasma Sintering", Key Engineering Materials, Vols. 317-318, pp. 155-158, 2006

Online since:

August 2006




[1] H.T. Martirena and J.C. Burfoot: J. Phys. C: Solid State Phys. Vol. 7 (1974), p.3182.

[2] G. Shirane and S. Hoshino: J. Phys. Soc. Jpn. Vol. 6 (1951), p.265.

[3] G. Shirane, R, Pepinsky and B.C. Frazer: Acta Crystallogr. Vol. 9 (1956), p.131.

[4] S.H. Shim, K. Niihara, K.H. Auh and K.B. Shim: J. Microscopy Vol. 205 (2002), p.238.

[5] J.H. Won, K.H. Kim, J.H. Chae and K.B. Shim: J. Ceram. Proc. Res. Vol. 3 (2002), p.166.

[6] M.P. McNeal, S.J. Jang and R.E. Newnham: J. Appl. Phys. Vol. 83 (1998), p.3288.

[7] R.C. Pohanka, R.W. Rice and B.E. Walker, JR: J. Am. Ceram. Soc. Vol. 59 (1976), p.71.

[8] W. Cao and C.A. Randall: J. Phys. Chem. Solids Vol. 57 (1996), p.1499.

[9] G. Arlt: Ferroelectrics Vol. 104 (1990), p.217.
