Synthesis of Nanocrystalline α-Al2O3 Using a 2-Step Calcination Method

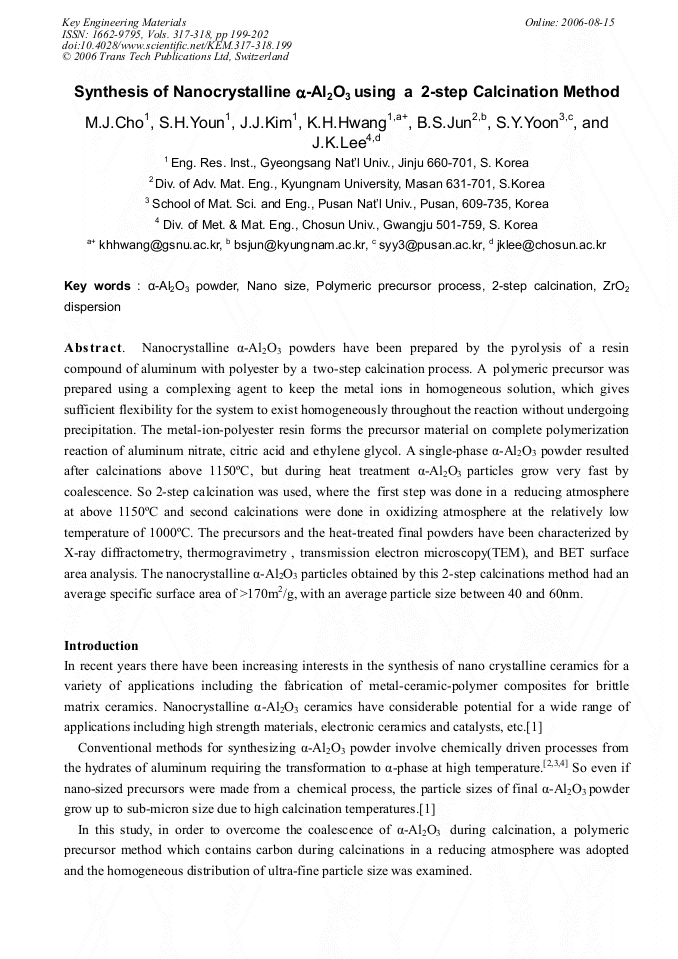

Article Preview

Nanocrystalline α-Al2O3 powders have been prepared by the pyrolysis of a resin compound of aluminum with polyester by a two-step calcination process. A polymeric precursor was prepared using a complexing agent to keep the metal ions in homogeneous solution, which gives sufficient flexibility for the system to exist homogeneously throughout the reaction without undergoing precipitation. The metal-ion-polyester resin forms the precursor material on complete polymerization reaction of aluminum nitrate, citric acid and ethylene glycol. A single-phase α-Al2O3 powder resulted after calcinations above 1150°C, but during heat treatment α-Al2O3 particles grow very fast by coalescence. So 2-step calcination was used, where the first step was done in a reducing atmosphere at above 1150°C and second calcinations were done in oxidizing atmosphere at the relatively low temperature of 1000°C. The precursors and the heat-treated final powders have been characterized by X-ray diffractometry, thermogravimetry , transmission electron microscopy(TEM), and BET surface area analysis. The nanocrystalline α-Al2O3 particles obtained by this 2-step calcinations method had an average specific surface area of >170m2/g, with an average particle size between 40 and 60nm.



Key Engineering Materials (Volumes 317-318)

Edited by:

T. Ohji, T. Sekino and K. Niihara




M.J. Cho et al., "Synthesis of Nanocrystalline α-Al2O3 Using a 2-Step Calcination Method", Key Engineering Materials, Vols. 317-318, pp. 199-202, 2006

Online since:

August 2006




[1] R.B. Bagwell and G.L. Messing, Effect of Seeding and Water Vapor on the Nucleation and Growth of α-Al2O3 from γ-Al2O3, J. Am. Cer. Soc., 82.


[8] 2107-12(1994).

[2] M.R. Gallas, Fabrication of Transparent γ-Al2O3 from Nanosize Particles, J. Am. Cer. Soc., 77.

[8] 2107-12(1994).

[3] K.J. Morrissey, Growth of α-Al2O3 within a Transition Alumina Matrix, J. Am. Cer. Soc., C8890(1994).

[4] T. Hirayama, High-Temperature Characteristics of Transition Al2O3 Powder with Ultrafine Spherical Particles, J. Am. Cer. Soc., 70.

[6] C-122-c-124(1987).

[5] Tai, L. and Lessing, P. A., Modified Resin-Intermediate Processing of Perovskite Powder: part 1: Optimization of Polymeric Precursors, J. Mat. Res., 7, 502 (1992).


[6] M.J. Cho, K.H. Hwang, and J.K. Lee, Fabrication of Al2O3/ZrO2 Ceramics by the Polymerization Dispersion Process, J. Kor. Cer. Soc., 41.

[4] 284-288(2004).
