Critical Conditions for Crack-Healing of Structural Ceramics under Constant or Cyclic Stress

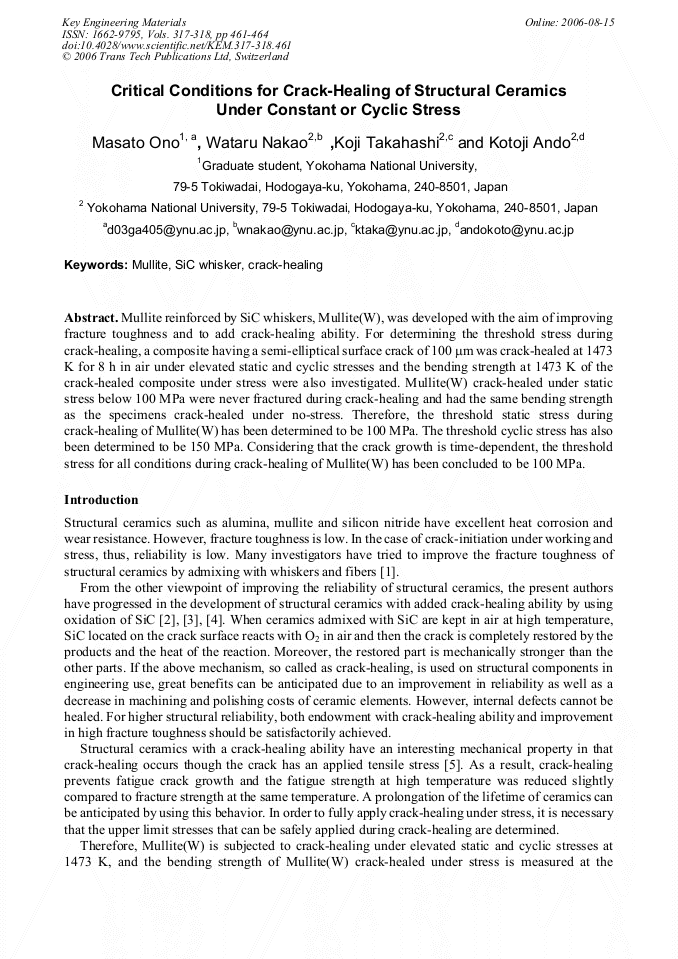

Article Preview

Mullite reinforced by SiC whiskers, Mullite(W), was developed with the aim of improving fracture toughness and to add crack-healing ability. For determining the threshold stress during crack-healing, a composite having a semi-elliptical surface crack of 100 μm was crack-healed at 1473 K for 8 h in air under elevated static and cyclic stresses and the bending strength at 1473 K of the crack-healed composite under stress were also investigated. Mullite(W) crack-healed under static stress below 100 MPa were never fractured during crack-healing and had the same bending strength as the specimens crack-healed under no-stress. Therefore, the threshold static stress during crack-healing of Mullite(W) has been determined to be 100 MPa. The threshold cyclic stress has also been determined to be 150 MPa. Considering that the crack growth is time-dependent, the threshold stress for all conditions during crack-healing of Mullite(W) has been concluded to be 100 MPa.



Key Engineering Materials (Volumes 317-318)

Edited by:

T. Ohji, T. Sekino and K. Niihara




M. Ono et al., "Critical Conditions for Crack-Healing of Structural Ceramics under Constant or Cyclic Stress", Key Engineering Materials, Vols. 317-318, pp. 461-464, 2006

Online since:

August 2006




[1] J. K. Guo, Z. Q. Mao, C. D. Bao, R. H. Wang and D. S. Yan, J. Mater. Sci., 17 (1982), p.3611.

[2] M. C. Chu, S. Sato, Y. Kobayashi and K. Ando, Fatigue Fract. Engng. Mat. Struct., 18 (1995), p.1019.

[3] K. Ando, M. C. Chu, K. Tsuji, T. Hirasawa, Y. Kobayashi, S. Sato, J. Euro. Ceram. Soc., 22 (2002), p.1313.

[4] K. Ando, K. Furusawa, M. C. Chu, T. Hanagata, K. Tuji, and S. Sato, J. Am. Ceram. Soc., 84 (2001), p. (2073).

[5] K. Ando, K. Takahashi, S. Nakayama, and S. Saito, J. Am. Ceram. Soc., 85 (2002), p.2268.
