Electrical Properties of AlN-SiC Ceramics

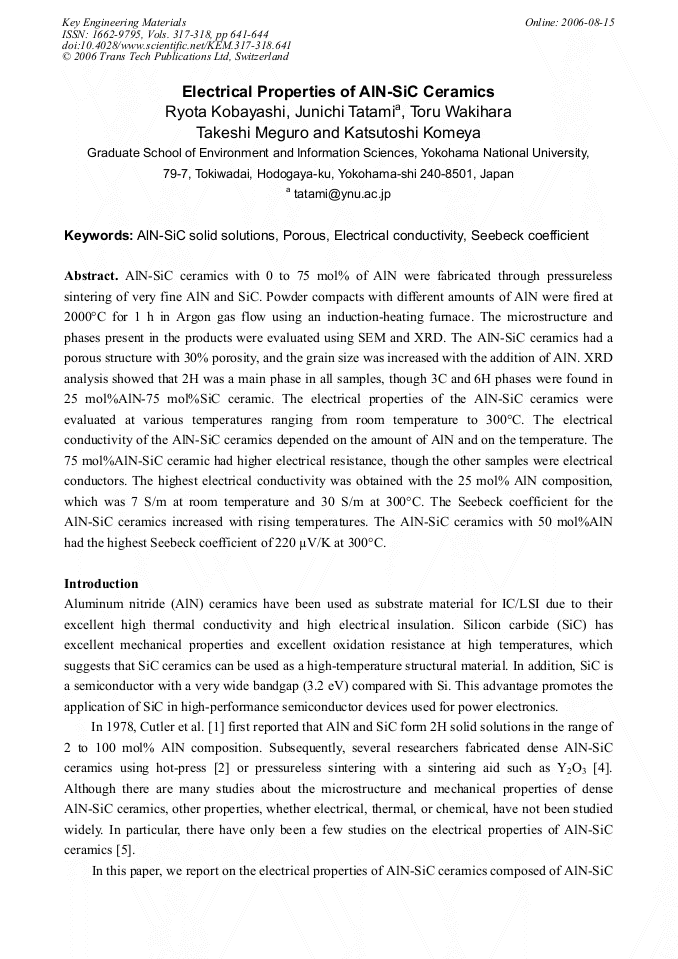

Article Preview

AlN-SiC ceramics with 0 to 75 mol% of AlN were fabricated through pressureless sintering of very fine AlN and SiC. Powder compacts with different amounts of AlN were fired at 2000°C for 1 h in Argon gas flow using an induction-heating furnace. The microstructure and phases present in the products were evaluated using SEM and XRD. The AlN-SiC ceramics had a porous structure with 30% porosity, and the grain size was increased with the addition of AlN. XRD analysis showed that 2H was a main phase in all samples, though 3C and 6H phases were found in 25 mol%AlN-75 mol%SiC ceramic. The electrical properties of the AlN-SiC ceramics were evaluated at various temperatures ranging from room temperature to 300°C. The electrical conductivity of the AlN-SiC ceramics depended on the amount of AlN and on the temperature. The 75 mol%AlN-SiC ceramic had higher electrical resistance, though the other samples were electrical conductors. The highest electrical conductivity was obtained with the 25 mol% AlN composition, which was 7 S/m at room temperature and 30 S/m at 300°C. The Seebeck coefficient for the AlN-SiC ceramics increased with rising temperatures. The AlN-SiC ceramics with 50 mol%AlN had the highest Seebeck coefficient of 220 2V/K at 300°C.



Key Engineering Materials (Volumes 317-318)

Edited by:

T. Ohji, T. Sekino and K. Niihara




R. Kobayashi et al., "Electrical Properties of AlN-SiC Ceramics", Key Engineering Materials, Vols. 317-318, pp. 641-644, 2006

Online since:

August 2006




[1] I.B. Cutler et al: Nature Vol. 275 (1978), pp.434-435.

[2] W. Rafaniello, K. Cho and A.V. Virkar: J. Mater. Sci Vol. 16 (1981), pp.3479-3488.

[3] R. Ruh and A. Zangvil: J. Am. Ceram. Soc Vol. 65 (1982), pp.260-265.

[4] Y. -b. Pan et al: J. Eur. Ceram. Soc Vol. 19 (1999), pp.1789-1793.

[5] R. OH, H. Qin, R. A, Gerhardt and R. Ruh: Ceram. Eng. Sci. Proc, Vol. 24 (2003), pp.349-354.

[6] A. Zangvil and R. Ruh: J. Am. Ceram. Soc Vol. 71 (1988), pp.884-890.

[7] J. Tolle et al, Solid. State. Sci Vol. 4 (2002), pp.1509-250 Seebeck coefficient[� V/K] Temperature[o C] Fig. 5 Temperature dependence of Seebeck coefficient � � AlN 0 � � AlN 25 � � AlN 50.
