Electrically Conductive Aluminum Nitride Ceramics Containing In-Situ Synthesized Boron Carbonitride

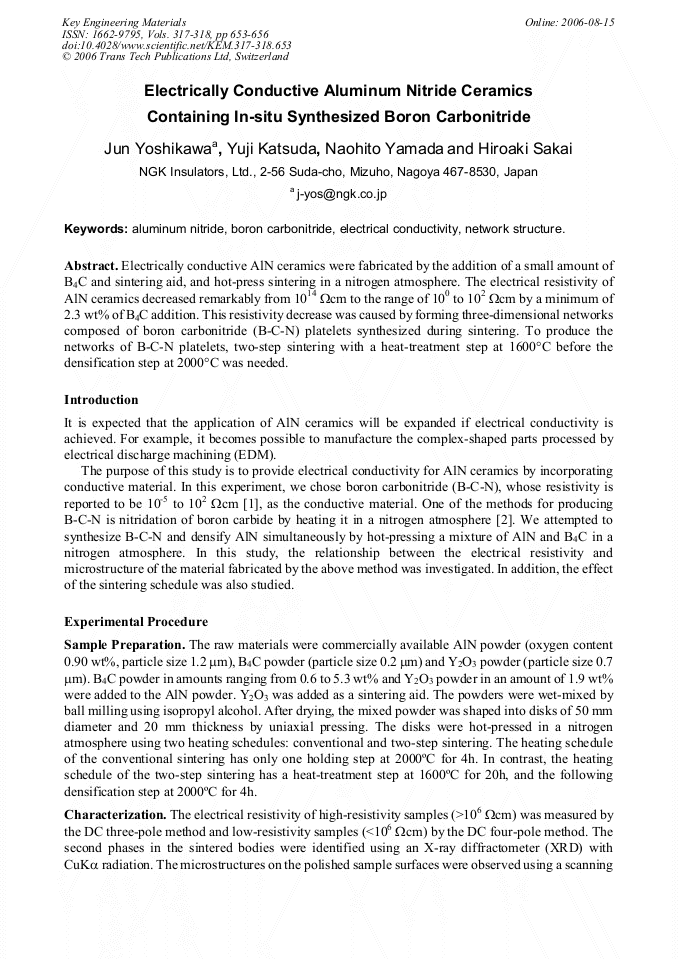

Article Preview

Electrically conductive AlN ceramics were fabricated by the addition of a small amount of B4C and sintering aid, and hot-press sintering in a nitrogen atmosphere. The electrical resistivity of AlN ceramics decreased remarkably from 1014 cm to the range of 100 to 102 cm by a minimum of 2.3 wt% of B4C addition. This resistivity decrease was caused by forming three-dimensional networks composed of boron carbonitride (B-C-N) platelets synthesized during sintering. To produce the networks of B-C-N platelets, two-step sintering with a heat-treatment step at 1600°C before the densification step at 2000°C was needed.



Key Engineering Materials (Volumes 317-318)

Edited by:

T. Ohji, T. Sekino and K. Niihara






J. Yoshikawa et al., "Electrically Conductive Aluminum Nitride Ceramics Containing In-Situ Synthesized Boron Carbonitride", Key Engineering Materials, Vols. 317-318, pp. 653-656, 2006

Online since:

August 2006




[1] L. Filipozzi, A. Derré, J. Conard, L. Piraux and A. Marchand: Carbon, Vol. 33 (1995), p.1747.

[2] Yu. G. Andreev and T. Lundström: J. Alloy. Compd., Vol. 210 (1994), p.311.

[3] J. Wu and D. S. McLachlan: Phys. Rev. B, Condens. Matter, Vol. 52.

[22] (1998), p.1488.

[4] D. S. McLachlan: Physica B (Amsterdam), Vol. 254 [3/4] (1998), p.249.

[5] Y. Akimune, F. Munakata, N. Hirosaki and Y. Okamoto: J. Ceram. Soc. Japan, Vol. 106 (1998), p.75.

[6] H. Kawaoka and K. Niihara: Materials Integration, Vol. 14.

[7] (2001), p.3. Fig. 5. Variation of the resistivity of the two-step sintered samples against the volume fraction of B-C-N. Table 1. Electrically conductive composite ceramics with a small critical volume fraction.
