Sealing Behavior of Visco-Elastic Composite Seals for SOFC Applications

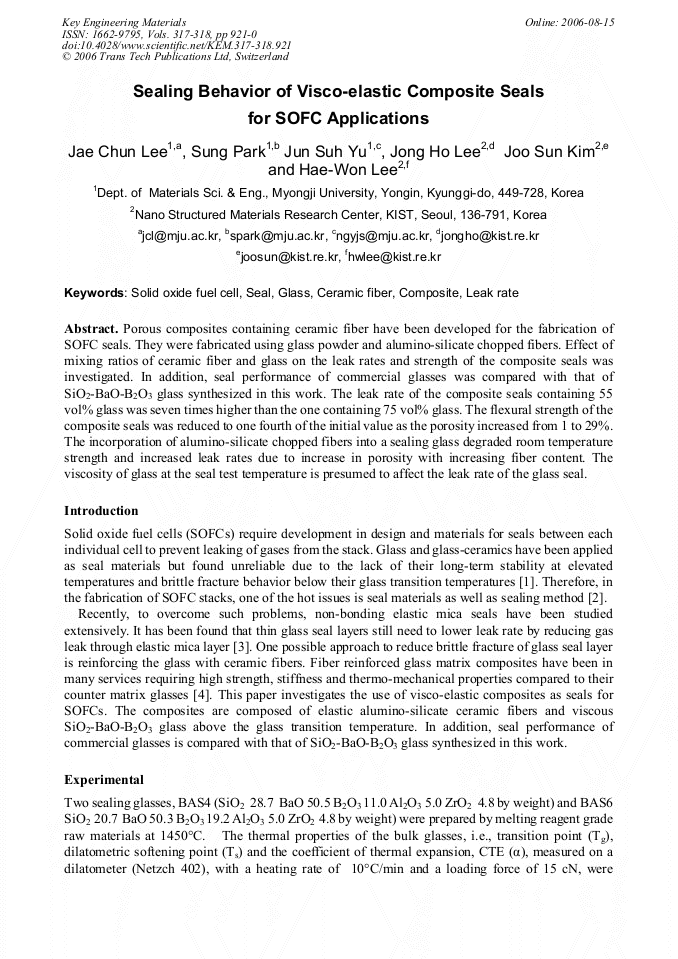

Article Preview

Porous composites containing ceramic fiber have been developed for the fabrication of SOFC seals. They were fabricated using glass powder and alumino-silicate chopped fibers. Effect of mixing ratios of ceramic fiber and glass on the leak rates and strength of the composite seals was investigated. In addition, seal performance of commercial glasses was compared with that of SiO2-BaO-B2O3 glass synthesized in this work. The leak rate of the composite seals containing 55 vol% glass was seven times higher than the one containing 75 vol% glass. The flexural strength of the composite seals was reduced to one fourth of the initial value as the porosity increased from 1 to 29%. The incorporation of alumino-silicate chopped fibers into a sealing glass degraded room temperature strength and increased leak rates due to increase in porosity with increasing fiber content. The viscosity of glass at the seal test temperature is presumed to affect the leak rate of the glass seal.



Key Engineering Materials (Volumes 317-318)

Edited by:

T. Ohji, T. Sekino and K. Niihara




J. C. Lee et al., "Sealing Behavior of Visco-Elastic Composite Seals for SOFC Applications", Key Engineering Materials, Vols. 317-318, pp. 921-0, 2006

Online since:

August 2006




[1] K. Ley, M. Krumpelt, J. Meiser, I. Bloom: J. Mater. Res. Vol. 11 (1996), p.1489.

[2] K.S. Weil, C.A. Coyle, J.S. Hardy, J.Y. Kim, G.G. Xia: Fuel Cell Bull. May (2004), p.11.

[3] Y.S. Chou, J.W. Stevenson, L.A. Chick: J. Power Sources Vol. 112 (2002), p.130.

[4] R. Venkatesh: Ceram. International Vol. 28 (2002), p.565.

[5] T.L. Starr: Ceram. Bull. Vol. 65 (1986), p.1293.
