Suppression of Martensitic Phase Transformation, Shape Memory and High Damping by Ion Implantation in Ni-Ti Thin Films

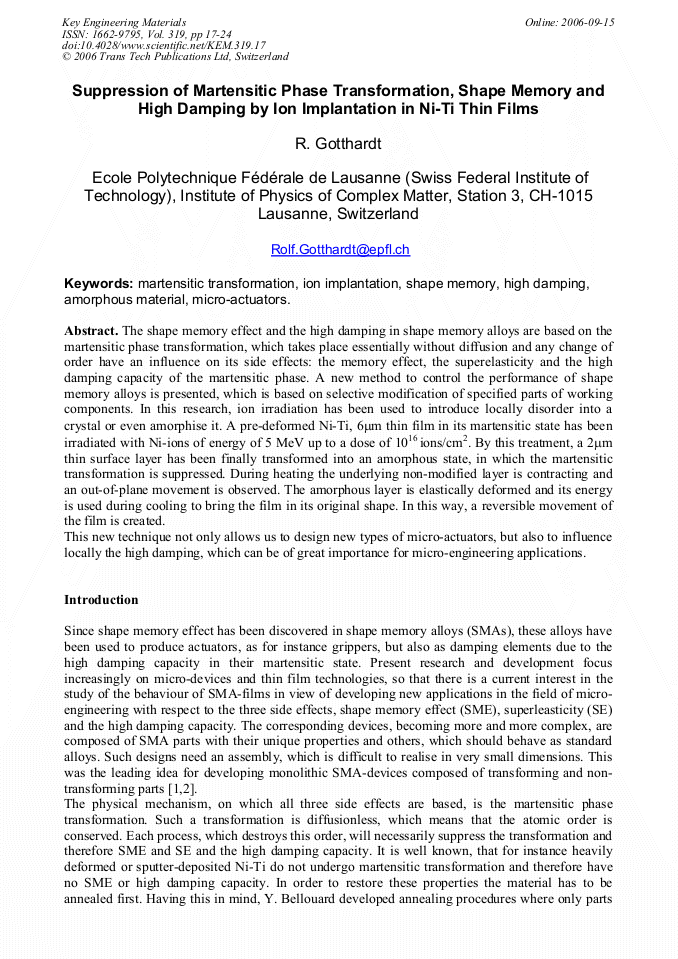

Article Preview

The shape memory effect and the high damping in shape memory alloys are based on the martensitic phase transformation, which takes place essentially without diffusion and any change of order have an influence on its side effects: the memory effect, the superelasticity and the high damping capacity of the martensitic phase. A new method to control the performance of shape memory alloys is presented, which is based on selective modification of specified parts of working components. In this research, ion irradiation has been used to introduce locally disorder into a crystal or even amorphise it. A pre-deformed Ni-Ti, 6μm thin film in its martensitic state has been irradiated with Ni-ions of energy of 5 MeV up to a dose of 1016 ions/cm2. By this treatment, a 2μm thin surface layer has been finally transformed into an amorphous state, in which the martensitic transformation is suppressed. During heating the underlying non-modified layer is contracting and an out-of-plane movement is observed. The amorphous layer is elastically deformed and its energy is used during cooling to bring the film in its original shape. In this way, a reversible movement of the film is created. This new technique not only allows us to design new types of micro-actuators, but also to influence locally the high damping, which can be of great importance for micro-engineering applications.



Edited by:

N. Igata and S. Takeuchi




R. Gotthardt "Suppression of Martensitic Phase Transformation, Shape Memory and High Damping by Ion Implantation in Ni-Ti Thin Films", Key Engineering Materials, Vol. 319, pp. 17-24, 2006

Online since:

September 2006





[1] Y. Bellouard, T. Lehnert, T. Sidler, R. Gotthardt, R. Clavel: Mat. Res. Soc. Symp Vol. 604 (2000), p.177.

[2] Y. Bellouard, T. Lehnert J. -E. Bidaux, T. Sidler R. Clavel, R. Gotthardt: Materials Science and Engineering Vol. A 273-275 (1999), p.795.

DOI: 10.1016/s0921-5093(99)00418-9

[3] Y. Bellouard, T. Lehnert, R. Clavel, T. Sidler and R. Gotthardt: J. Phys. IV Vol. 11 (2001), Pr8-571.

[4] J. Brimhall, H. Kissinger, A. Pelton: Radiation Effect Vol. 90 (1985), p.241.

[5] F. Goldberg, E. Knystuatas: Thin Solid Films Vol. 342 (1999), p.67.

[6] D.S. Grummon and R. Gotthardt: Acta Materialia Vol 48, (2000), p.635.

[7] T. LaGrange and R. Gotthardt: Materials Science Forum Vols. 426-432 (2003), p.2219.

[8] T. LaGrange and R. Gotthardt: Scripta Materialia, Vol. 50 (2004), p.231.

[9] T. LaGrange and R. Gotthardt: J. Phys. IV Vol. 115 (2004) p.47.

[10] T. LaGrange, R. Schäublin, D. S. Grummon, C. Abromeit and R. Gotthardt: Phil. Mag. Vol. 85 (2005), p.577.

[11] T. LaGrange: Ion Implantation in Ni-Ti Shape Memory Alloy Thin Films, Thesis Nr. 3173 (2004) Ecole Polytechnique Fédérale de Lausanne, Lausanne, Switzerland.
