Damping Characteristics of Cold-Rolled and Annealed Equiatomic TiNi Shape Memory Alloy

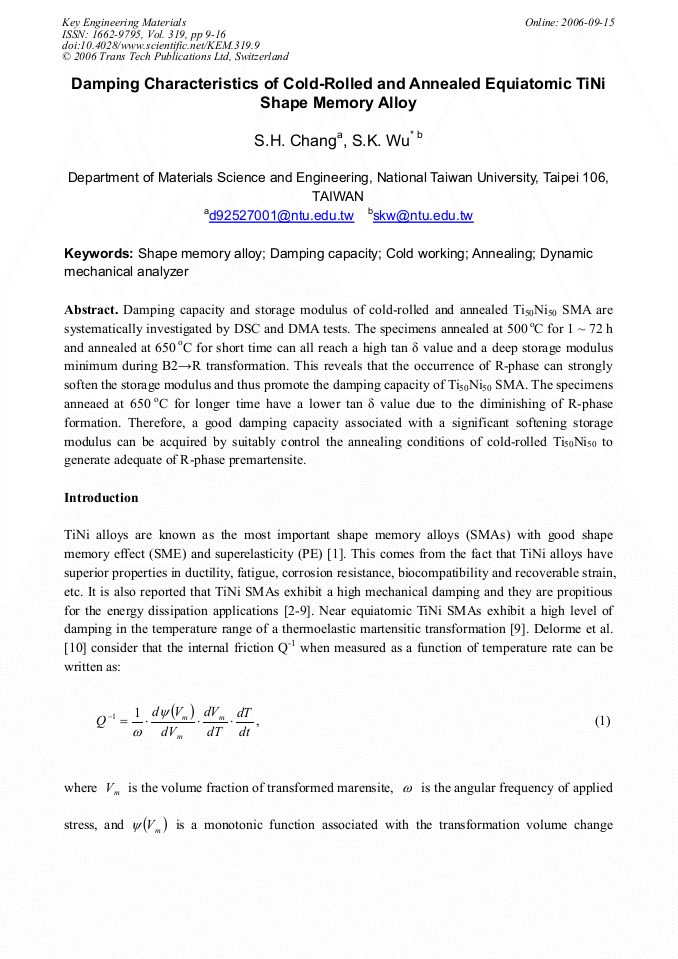

Article Preview

Damping capacity and storage modulus of cold-rolled and annealed Ti50Ni50 SMA are systematically investigated by DSC and DMA tests. The specimens annealed at 500 oC for 1 ~ 72 h and annealed at 650 oC for short time can all reach a high tan δ value and a deep storage modulus minimum during B2→R transformation. This reveals that the occurrence of R-phase can strongly soften the storage modulus and thus promote the damping capacity of Ti50Ni50 SMA. The specimens anneaed at 650 oC for longer time have a lower tan δ value due to the diminishing of R-phase formation. Therefore, a good damping capacity associated with a significant softening storage modulus can be acquired by suitably control the annealing conditions of cold-rolled Ti50Ni50 to generate adequate of R-phase premartensite.



Edited by:

N. Igata and S. Takeuchi




S.H. Chang and S. K. Wu, "Damping Characteristics of Cold-Rolled and Annealed Equiatomic TiNi Shape Memory Alloy", Key Engineering Materials, Vol. 319, pp. 9-16, 2006

Online since:

September 2006




[1] C.M. Wayman, T.W. During. In: T.W. During, K.N. Melton, D. Stöckel, C.M. Wayman, editors. Engineering Aspects of Shape Memory Alloys (London: Butterworth-Heinemam Press; 1990), pp.3-20.

[2] K. Iwasaki, R. Hasiguti: Trans JIM Vol. 28 (1987), p.363.

[3] O. Mercier, K.N. Melton, Y. De Préville: Acta Metall Vol. 27 (1979), p.1467.

[4] S.K. Wu, H.C. Lin, T.S. Chou: Acta Metall Vol. 38 (1990), p.95.

[5] H.C. Lin, S.K. Wu, M.T. Yeh: Metall Mater Trans A Vol. 24 (1993), p.2189.

[6] K. Sugimoto, T. Mori, K. Otsuka, K. Shimizu: Scripta Metall Vol. 8 (1974), p.1341.

[7] Y. Liu, J. Van Humbeeck, R. Stalmans, L. Delaey: J Alloys Compd Vol. 247 (1997), p.115.

[8] D.E. Hodgson: Mater Sci Forum Vol. 394-395 (2002), p.69.

[9] S.K. Wu, H.C. Lin: J Alloys Compd Vol. 72-78 (2003), p.355.

[10] J.F. Delorme, R. Schmid, M. Robin, P. Gobin: J Phys Vol 32 (1971), p. C2-101.

[11] I. Yoshida, T. Ono, M. Asai: J Alloys Compd Vol. 310 (2000), p.339.

[12] S.H. Chang, S.K. Wu: Scripta Mater Vol. 50 (2004), p.937.

[13] S.H. Chang, S.K. Wu, G.H. Chang: Scripta Mater Vol 52 (2005), p.1341.

[14] X. Ren, N. Minura, K. Otsuka, K. Tanaka, M. Koiwa, T. Suzuki, Yu. I. Chumlyyakov, M. Asai: Mater Sci Eng A Vol. 312 (2001), p.196.
