Evaluation of Planar-Type Thin Film ZnO Varistors Fabricated Using Pulsed Laser Ablation

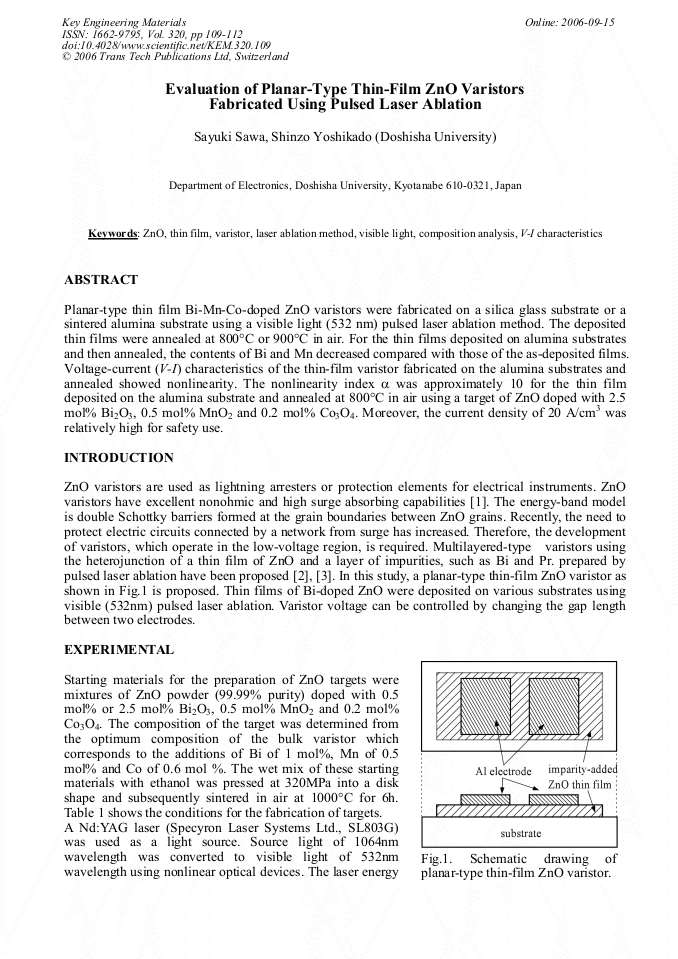

Article Preview

Planar-type thin film Bi-Mn-Co-doped ZnO varistors were fabricated on a silica glass substrate or a sintered alumina substrate using a visible light (532 nm) pulsed laser ablation method. The deposited thin films were annealed at 800°C or 900°C in air. For the thin films deposited on alumina substrates and then annealed, the contents of Bi and Mn decreased compared with those of the as-deposited films. Voltage-current (V-I) characteristics of the thin-film varistor fabricated on the alumina substrates and annealed showed nonlinearity. The nonlinearity index α was approximately 10 for the thin film deposited on the alumina substrate and annealed at 800°C in air using a target of ZnO doped with 2.5 mol% Bi2O3, 0.5 mol% MnO2 and 0.2 mol% Co3O4. Moreover, the current density of 20 A/cm3 was relatively high for safety use.



Edited by:

Keiichi Katayama, Kazumi Kato, Tadashi Takenaka, Masasuke Takata and Kazuo Shinozaki




S. Sawa and S. Yoshikado, "Evaluation of Planar-Type Thin Film ZnO Varistors Fabricated Using Pulsed Laser Ablation", Key Engineering Materials, Vol. 320, pp. 109-112, 2006

Online since:

September 2006




[1] M. Matsuoka, Jpn. J. Appl. Phys., 10 (1971), p.736.

[2] S. Sugiyama, A. Kamekawa, H. Takamura. M. Okada, Journal of the Japan Society of Powder and Powder Metallurgy, 46, (1999), p.811.

[3] S. Shibagaki, K. Fukushima, New Ceramics, 10, (1997), p.56.

[4] L. G. Berry, B. Post, S. Weissmann, H. F. Mcmurdie, W. F. Mclene, Powder Diffraction File (1974).
