Morphological Design of Zinc Oxide Films Grown in Aqueous Solutions

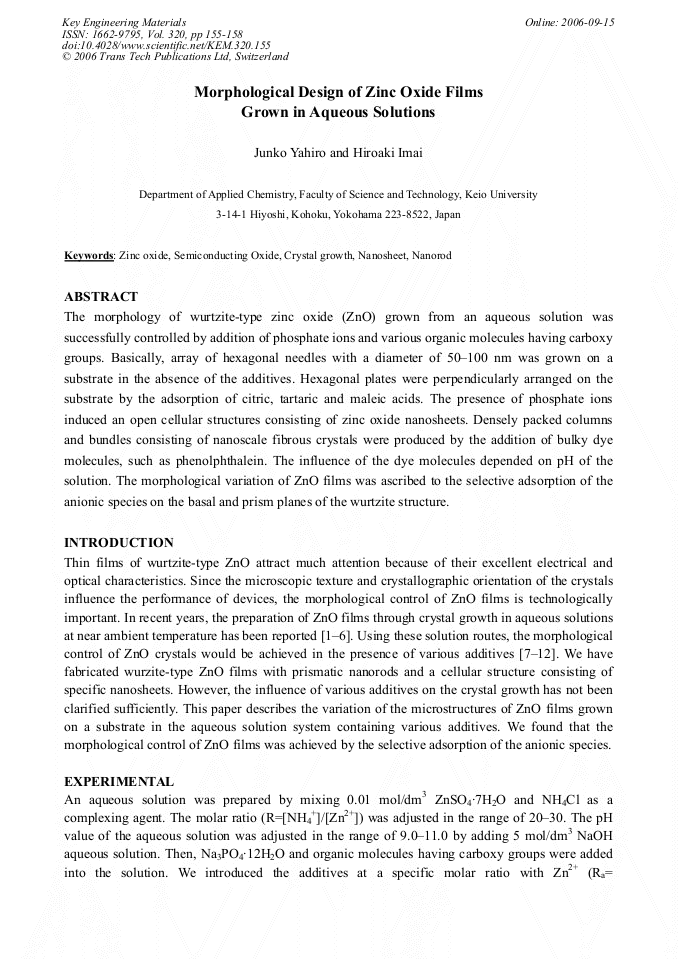

Article Preview

The morphology of wurtzite-type zinc oxide (ZnO) grown from an aqueous solution was successfully controlled by addition of phosphate ions and various organic molecules having carboxy groups. Basically, array of hexagonal needles with a diameter of 50–100 nm was grown on a substrate in the absence of the additives. Hexagonal plates were perpendicularly arranged on the substrate by the adsorption of citric, tartaric and maleic acids. The presence of phosphate ions induced an open cellular structures consisting of zinc oxide nanosheets. Densely packed columns and bundles consisting of nanoscale fibrous crystals were produced by the addition of bulky dye molecules, such as phenolphthalein. The influence of the dye molecules depended on pH of the solution. The morphological variation of ZnO films was ascribed to the selective adsorption of the anionic species on the basal and prism planes of the wurtzite structure.



Edited by:

Keiichi Katayama, Kazumi Kato, Tadashi Takenaka, Masasuke Takata and Kazuo Shinozaki




J. Yahiro and H. Imai, "Morphological Design of Zinc Oxide Films Grown in Aqueous Solutions", Key Engineering Materials, Vol. 320, pp. 155-158, 2006

Online since:

September 2006




[1] A.E. Jimenez-Gonzalez, J.A.S. Urueta and R. Suarez-Parra, J. Cryst. Growth, 192 (1998), p.430.

[2] L. Bahadur and P. Srivastava, Semiconductor Science and Technology, 19 (2004), p.531.

[3] D.S. Boyle, K. Govender and P. O'Brien, Chem. Commun., (2002), p.80.

[4] S. Peulon and D. Lincot, Adv. Mater., 8 (1996), p.166.

[5] M. Izaki and T. Omi, Appl. Phys. Lett., 68 (1996), p.2439.

[6] S. Yamabi and H. Imai, J. Mater. Chem., 12 (2002), p.3773.

[7] L. Vayssieres, Adv. Mater., 15 (2003), p.464.

[8] P. O'Brien, T. Saeed and J. Knowles, J. Mater. Chem., 6 (1996), p.1135.

[9] M. ��, Oner, J. Norwig, W.H. Meyer and G. Wegner, Chem. Mater., 10 (1998), p.460.

[10] Z. R. Tian, J. A. Voigt, J. Liu, B. Mckenzie, M. J. Mcdermott, M.A. Rodriguez, H. Konishi and H. Xu, Nat. Mater., 2 (2003), p.821.

[11] T. Yoshida, T. Pauporte, D. Lincot, T. Oekermann and H. Minoura, J. Electrochem. Soc., 150 (2003), p. C608.

[12] S. Yamabi, J. Yahiro, S. Iwai and H. Imai, Thin Solid Films, 489 (2005), p.23.

[13] H. Kozuka, T. Yoko and M. Ohyama, Thin Solid Films, 306 (1997), p.78.
