Development of a Portable and Wireless Surface EMG

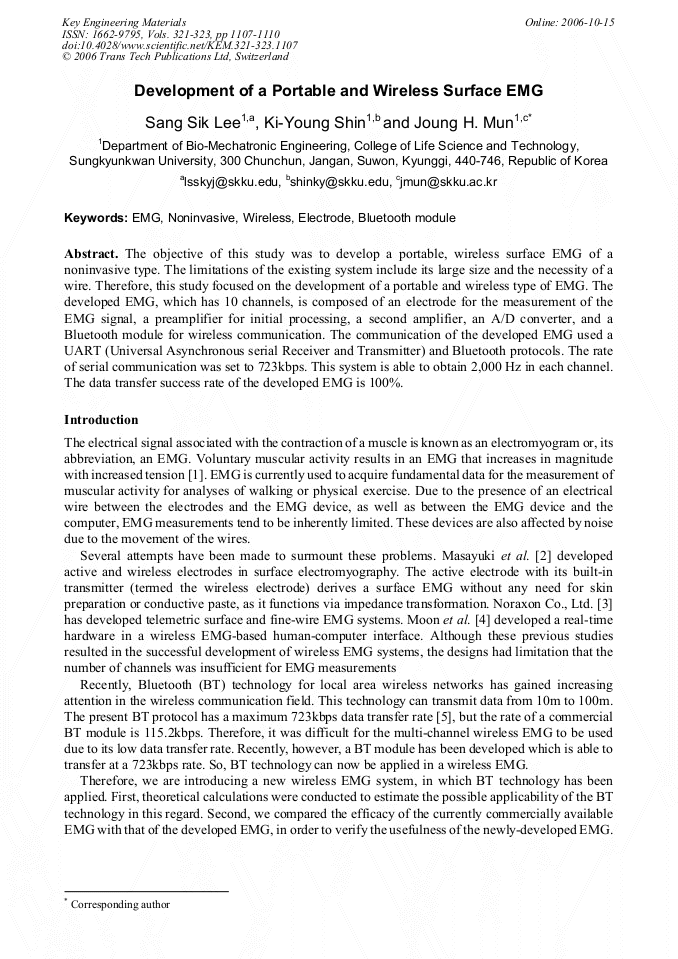

Article Preview

The objective of this study was to develop a portable, wireless surface EMG of a noninvasive type. The limitations of the existing system include its large size and the necessity of a wire. Therefore, this study focused on the development of a portable and wireless type of EMG. The developed EMG, which has 10 channels, is composed of an electrode for the measurement of the EMG signal, a preamplifier for initial processing, a second amplifier, an A/D converter, and a Bluetooth module for wireless communication. The communication of the developed EMG used a UART (Universal Asynchronous serial Receiver and Transmitter) and Bluetooth protocols. The rate of serial communication was set to 723kbps. This system is able to obtain 2,000 Hz in each channel. The data transfer success rate of the developed EMG is 100%.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




S. S. Lee et al., "Development of a Portable and Wireless Surface EMG", Key Engineering Materials, Vols. 321-323, pp. 1107-1110, 2006

Online since:

October 2006




[1] David A. Winter: Biomechanics and motor control of human movement (A Wiley-Interscience Publication, New York 1990).

[2] Masayuki Ohyama, Yutaka Tomita, Satoshi Honda, Hitoshi Uchida. Active Wireless Electrodes for Surface Electromyography: 18 th Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Amsterdam 1996 1. 7. 2: Telemetry II (1996).


[3] http: /www. noraxon. com/products/instruments/telemyo2400T. php3.

[4] Inhyuk Moon, Myoungjoon Lee, Museong Mun. A novel EMG-based human-computer interface for persons with disability: Mechatronics, ICM '04. Proceedings of the IEEE International Conference. (2004), pp.519-524.


[5] McDermott-Wells, P. What is Bluetooth?: Potentials, IEEE, Vol. 23 (2005), pp.33-35.

[6] M.M. Khemlani, J.J. Carr, W.J. Crosbie. Muscle synergies and joint linkages in sit-to-stand under two initial foot positions: Clinical Biomechanics, Vol. 14 (1999), pp.236-246.


[7] Fatima R.P.G., Josep V.S. Patterned electomyographic activity in the sit-to-stand movement: Clinical Neurophysiology, Vol. 110 (1999), pp.1634-1640.
