Application of Modified Grid-Based Approach for Auto Mesh Generation of IT-Related Products

Abstract:

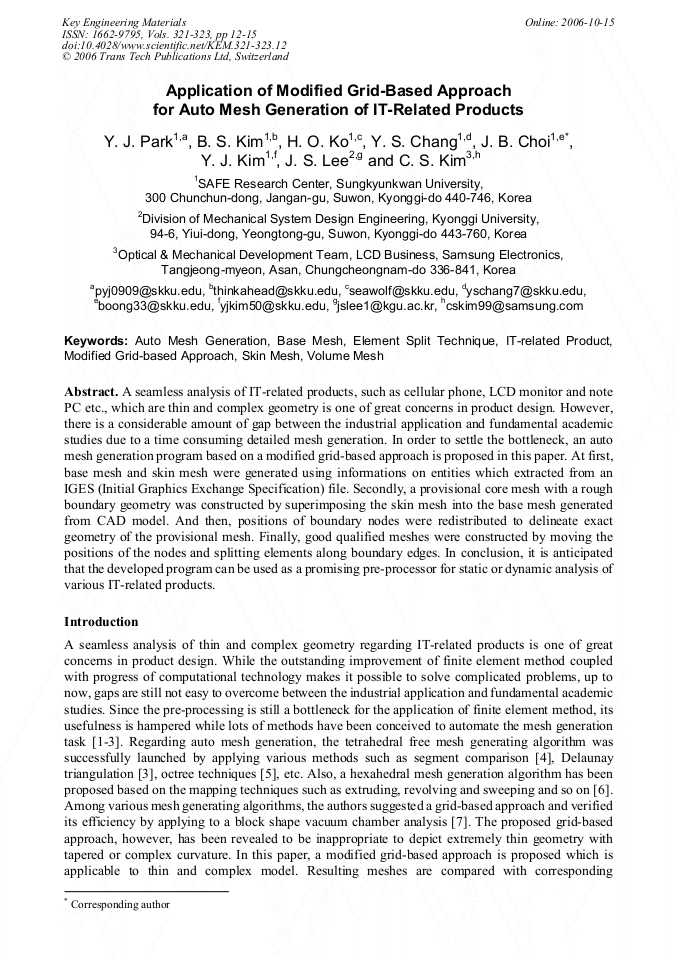

Article Preview

A seamless analysis of IT-related products, such as cellular phone, LCD monitor and note PC etc., which are thin and complex geometry is one of great concerns in product design. However, there is a considerable amount of gap between the industrial application and fundamental academic studies due to a time consuming detailed mesh generation. In order to settle the bottleneck, an auto mesh generation program based on a modified grid-based approach is proposed in this paper. At first, base mesh and skin mesh were generated using informations on entities which extracted from an IGES (Initial Graphics Exchange Specification) file. Secondly, a provisional core mesh with a rough boundary geometry was constructed by superimposing the skin mesh into the base mesh generated from CAD model. And then, positions of boundary nodes were redistributed to delineate exact geometry of the provisional mesh. Finally, good qualified meshes were constructed by moving the positions of the nodes and splitting elements along boundary edges. In conclusion, it is anticipated that the developed program can be used as a promising pre-processor for static or dynamic analysis of various IT-related products.

Info:

Periodical:

Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi

Pages:

12-15

DOI:

10.4028/www.scientific.net/KEM.321-323.12

Citation:

Y. J. Park et al., "Application of Modified Grid-Based Approach for Auto Mesh Generation of IT-Related Products", Key Engineering Materials, Vols. 321-323, pp. 12-15, 2006

Online since:

October 2006

Export:

Price:

$35.00

[1] K. Ho-Le: Finite Element Mesh Generation Methods: a review and classification, Computer Aided Design, Vol. 20 (1998), pp.27-38.

DOI: 10.1016/0010-4485(88)90138-8

[2] M.S. Shephard, K.R. Grice, J.A. Lo and W.J. Schroeder: Trends in Automatic Three-dimension Mesh Generation, Computers and Structures, Vol. 30 (1988), pp.421-429.

DOI: 10.1016/0045-7949(88)90248-9

[3] P.L. George: Automatic Mesh Generation (Wiley, New York, 1991).

[4] Z.J. Cendes, D. Shenton and H. Shahnasser: Magnetic Field Computation Using Delaunay Triangulation and Complementary Finite Element Method, IEEE Trans. Magazine, Vol. MAG-19, No. 6 (1983).

DOI: 10.1109/tmag.1983.1062841

[5] M.S. Shephard and M.K. Georges: Automatic Three-dimensional Mesh Generation by the Finite Octree Technique, International Journal for Numerical Methods in Engineering, Vol. 32 (1991), pp.709-749.

DOI: 10.1002/nme.1620320406

[6] Y.J. Park, H.K. Kim, Y.S. Chang, J.B. Choi and Y.J. Kim: Application of Grid-based Approach for Auto Mesh Generation of Vacuum Chamber, Key Engineering Materials, Vol. 306 (2006), pp.628-633.

DOI: 10.4028/www.scientific.net/kem.306-308.631

[7] P.J. Frey and P.L. George: Mesh Generation Application to Finite Elements, (HERMES Science, UK, 2000).
