Determination of Principal-Stress Directions by Three-Step Color Phase Shifting Technique

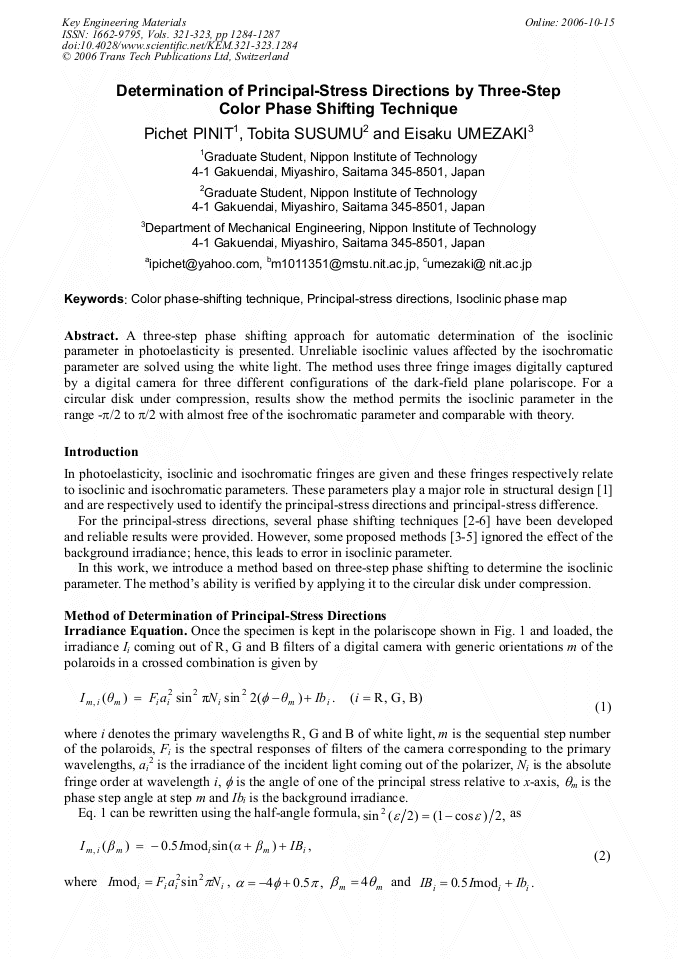

Article Preview

A three-step phase shifting approach for automatic determination of the isoclinic parameter in photoelasticity is presented. Unreliable isoclinic values affected by the isochromatic parameter are solved using the white light. The method uses three fringe images digitally captured by a digital camera for three different configurations of the dark-field plane polariscope. For a circular disk under compression, results show the method permits the isoclinic parameter in the range -π/2 to π/2 with almost free of the isochromatic parameter and comparable with theory.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




P. Pinit et al., "Determination of Principal-Stress Directions by Three-Step Color Phase Shifting Technique", Key Engineering Materials, Vols. 321-323, pp. 1284-1287, 2006

Online since:

October 2006




[1] R.B. Heywood: Photoelasticity for Designers (Pergamon, 1969).

[2] T. Kihara: Strain. Vol. 39 (2003), p.65.

[3] C. Buckbery and D. Tower: Opt. Eng. Vol. 24 (1996), p.415.

[4] A.D. Nurse: Appl. Opt. Vol. 36 (1997), p.5781.

[5] N. Plouzennec and A. Lagrde: Exp. Mech. Vol. 39 (1999), p.274.

[6] P. Pinit and E. Umezaki: Optical Review. Vol. 12 (2005), p.228.

[7] P. Pinit, Tobita. S and E. Umezaki: Prepr. Japan Soc. Of Mech. Eng., No. 05-1 (2005), p.351.
