Synthesis and Characterization of Ce-Doped BZT Thin Films Deposited by a RF Magnetron Sputtering Method

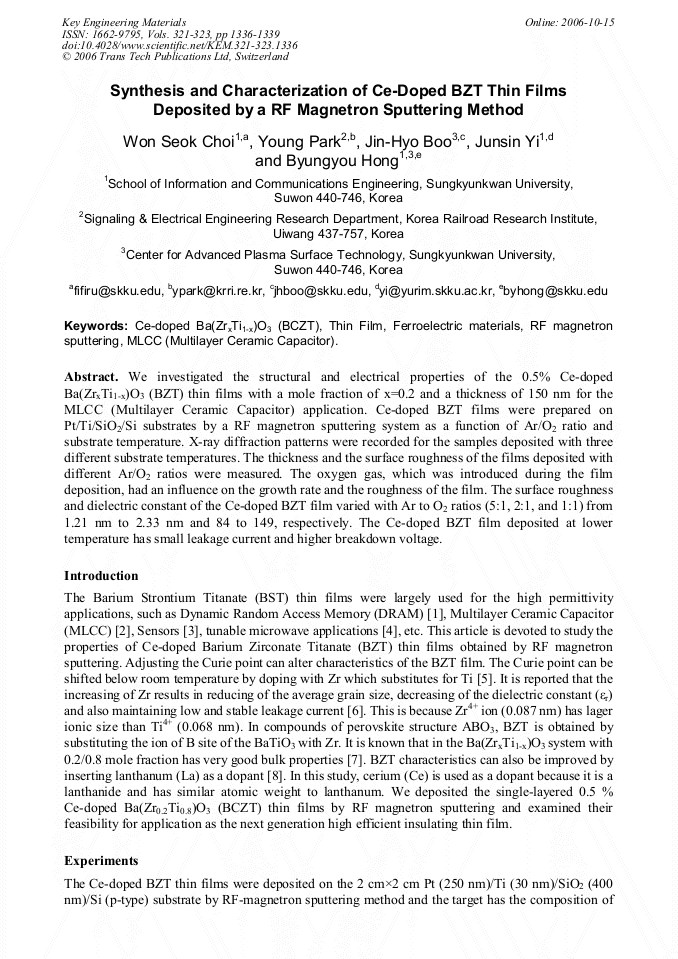

Article Preview

We investigated the structural and electrical properties of the 0.5% Ce-doped Ba(ZrxTi1-x)O3 (BZT) thin films with a mole fraction of x=0.2 and a thickness of 150 nm for the MLCC (Multilayer Ceramic Capacitor) application. Ce-doped BZT films were prepared on Pt/Ti/SiO2/Si substrates by a RF magnetron sputtering system as a function of Ar/O2 ratio and substrate temperature. X-ray diffraction patterns were recorded for the samples deposited with three different substrate temperatures. The thickness and the surface roughness of the films deposited with different Ar/O2 ratios were measured. The oxygen gas, which was introduced during the film deposition, had an influence on the growth rate and the roughness of the film. The surface roughness and dielectric constant of the Ce-doped BZT film varied with Ar to O2 ratios (5:1, 2:1, and 1:1) from 1.21 nm to 2.33 nm and 84 to 149, respectively. The Ce-doped BZT film deposited at lower temperature has small leakage current and higher breakdown voltage.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




W. S. Choi et al., "Synthesis and Characterization of Ce-Doped BZT Thin Films Deposited by a RF Magnetron Sputtering Method", Key Engineering Materials, Vols. 321-323, pp. 1336-1339, 2006

Online since:

October 2006




[1] F. M. Pontes, E. Longo, E. R. Leite, and J. A. Varela: Thin Solid Films Vol. 386 (2001), p.91.

[2] H. -J. Cho, S. Oh, C. S. Kang, C. S. Hwang, B. T. Lee, K. H. Lee, H. Horii, S. I. Lee, and M. Y. Lee: Appl. Phys. Lett. Vol. 71 (1997), p.3221.

[3] K. Numata, Y. Fukuda, K. Aoki, and A. Nishimura: Jpn. J. Appl. Phys. Vol. 34 (1995), p.5245.

[4] S. Gijp, L. Winnubst, and H. Verweij: J. Am. Ceram. Soc. Vol. 82 (1998), p.1175.

[5] S. Hoffmann and R. Waser: Intergrat. Ferroelectr. Vol. 17 (1997), p.141.

[6] D. Hennings and A. Schnell: J. Am. Ceram. Soc. Vol. 65 (1982), p.539.

[7] N. Yuhuan Xu: Ferroelectric Materials and Their Applications, (North-Holland, NY 1991) p.48.

[8] C. J. Brennan: Intergrat. Ferroelectr. (1991), p.354.
