Knee Joint Analysis for Optimal Ligament Surgical Reconstruction Using Three Dimensional Motion Model

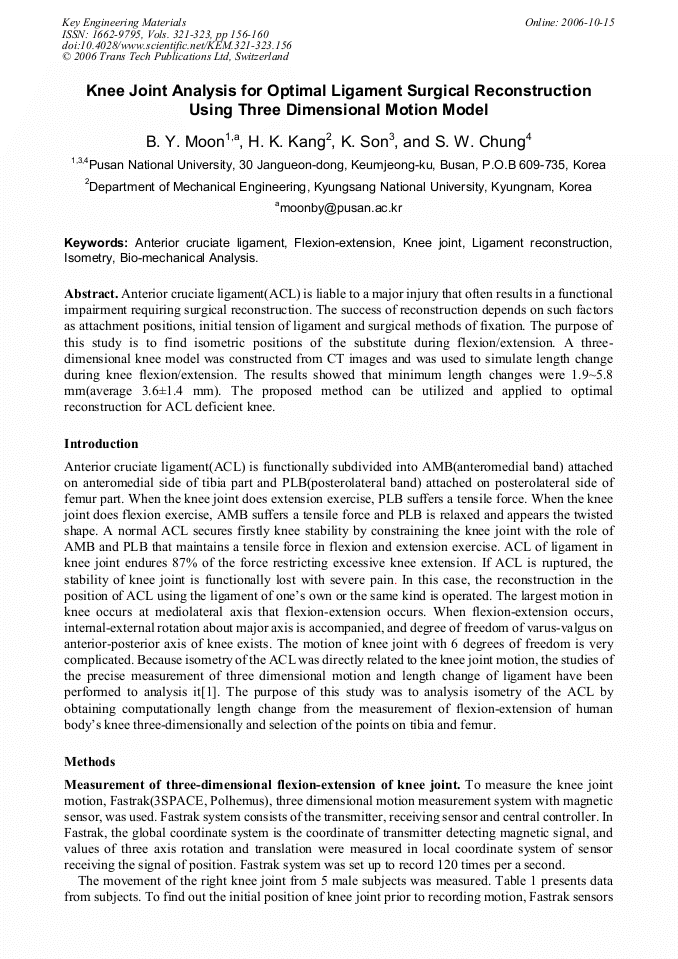

Article Preview

Anterior cruciate ligament(ACL) is liable to a major injury that often results in a functional impairment requiring surgical reconstruction. The success of reconstruction depends on such factors as attachment positions, initial tension of ligament and surgical methods of fixation. The purpose of this study is to find isometric positions of the substitute during flexion/extension. A threedimensional knee model was constructed from CT images and was used to simulate length change during knee flexion/extension. The results showed that minimum length changes were 1.9~5.8 mm(average 3.6±1.4 mm). The proposed method can be utilized and applied to optimal reconstruction for ACL deficient knee.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




B. Y. Moon et al., "Knee Joint Analysis for Optimal Ligament Surgical Reconstruction Using Three Dimensional Motion Model", Key Engineering Materials, Vols. 321-323, pp. 156-160, 2006

Online since:

October 2006




[1] Blacharski, P. A., Somerset, J. H. and Murray, D. G., 1975, A three-dimensional study of the kinematics of the human knee, Journal of Biomechanics, Vol. 8, p.375~384.

DOI: 10.1016/0021-9290(75)90073-1

[2] Park, K. B., Kim, K. B., Son, K., Suh, J. T. and Moon, B. Y., 2004, Construction and Measurement of Three-dimensional Knee Joint Model of Koreans, Trans. of KSME(A), Vol. 28, No. 11, p.1664~1671.

[3] Hefzy M. S., Grood E. S. and Noyes F. R., 1988, Factors affecting the region of most isometric femoral attachments: Part II: The anterior cruciate ligament, The American Journal of Sports Medicine, Vol. 17, No. 2, p.208~216.
