Preparation and Characterization of Nanosized Al2O3 Particles Synthesized by the thermal MOCVD and Plasma CVD


Article Preview

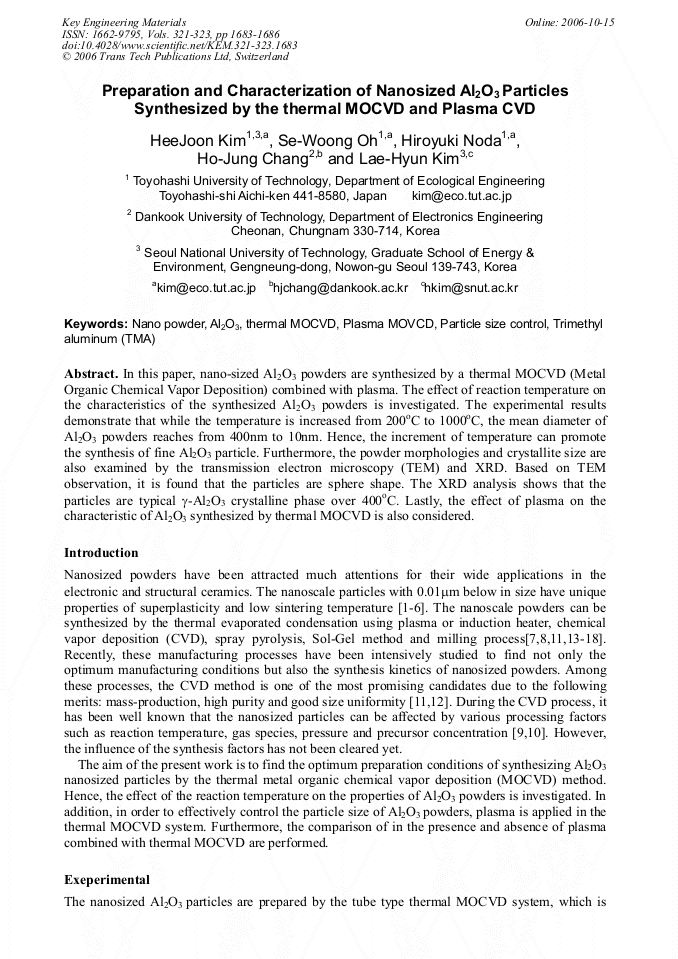

In this paper, nano-sized Al2O3 powders are synthesized by a thermal MOCVD (Metal Organic Chemical Vapor Deposition) combined with plasma. The effect of reaction temperature on the characteristics of the synthesized Al2O3 powders is investigated. The experimental results demonstrate that while the temperature is increased from 200oC to 1000oC, the mean diameter of Al2O3 powders reaches from 400nm to 10nm. Hence, the increment of temperature can promote the synthesis of fine Al2O3 particle. Furthermore, the powder morphologies and crystallite size are also examined by the transmission electron microscopy (TEM) and XRD. Based on TEM observation, it is found that the particles are sphere shape. The XRD analysis shows that the particles are typical γ-Al2O3 crystalline phase over 400oC. Lastly, the effect of plasma on the characteristic of Al2O3 synthesized by thermal MOCVD is also considered.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




H. J. Kim et al., "Preparation and Characterization of Nanosized Al2O3 Particles Synthesized by the thermal MOCVD and Plasma CVD", Key Engineering Materials, Vols. 321-323, pp. 1683-1686, 2006

Online since:

October 2006




[1] F. Wakai: Ceramics International 17 (1991), p.153.

[2] C. Scott Nordahl and Gary L. Messing, J. Am. Ceram. Soc. 79.

[12] (1996), p.3149.

[3] J. Freim, J. McKittrick, J. Katz and K. Sickafus, Nanostructured Mater., 4.

[4] (1994), p.371.

[4] Y. Chen, N. Glumac, B.H. Kear, and G. Skandan, Nanostructured Mater., 9(1997), p.101.

[5] S. -C. Liao, Y. -J. Chen, B.H. Kear and W.E. Mayo, Nanostructured Mater., 10.

[6] (1998). p.1063.

[6] Rajiv S. Mishra, Charles E. Lesher and Amiya K. Mukherjee, J. Am. Ceram. Soc., 79.

[11] (1996), p.2989.

[7] Gregory P. Johnston et al., Am. Ceram. Soc., 75.

[12] (1992), p.3293.

[8] H. Ferkel, J. Naser, and W. Riehemann, Nanostruct. Mater., 8.

[4] (1997), p.457.

[9] C.H. Shek, J.K.L. Lai, T.S. Gu and G.M. Lin; Nanostructured Mater. 8(5) (1997), p.605.

[10] T. Inuzuka, S. Tomioka and S. Harada; Powder and Powder Metallurgy 44(8) (1997), p.729.

[11] S.W. Oh, H. Noda, and H.J. Kim, J. Ceram Soc. Jap, supplement, 112.

[5] S933 (2004).

[12] H. Noda, K. Muramoto, H. Kim, J. Mater. Sci., 18(2003), p. (2043).

[13] W.M. Zeng, L. Gao, and J.K. Guo, Nanostruct. Mater., 10.

[4] (1998), p.543.

[14] R. Vasiljevic, D. Blecic and M.R. Ivanovic, Sicence of Sintering, 31.

[1] (1999), p.37.

[15] Se Woong Oh, Hiroyuki Noda, Takuya Ohsawa, HoJung Chang and HeeJoon Kim, The Second Asian Conference on CVD, 31 (2001).

[16] B.H. Kear and G. Skandan, Nanostruct. Mater., 8.

[6] (1997), p.765.

[17] M.T. Hernandez and M. Gonzalez, J. Eur. Ceram. Soc., 22(2002), p.2861.

[18] Kristen H. Brosnan, Gary L. Messing and Dinesh K. Agrawal, J. Am. Ceram. Soc. 86.

[8] (2003), p.1307.
