The Weldability of Primer-Coated Steel for Shipbuilding by CO2 Laser

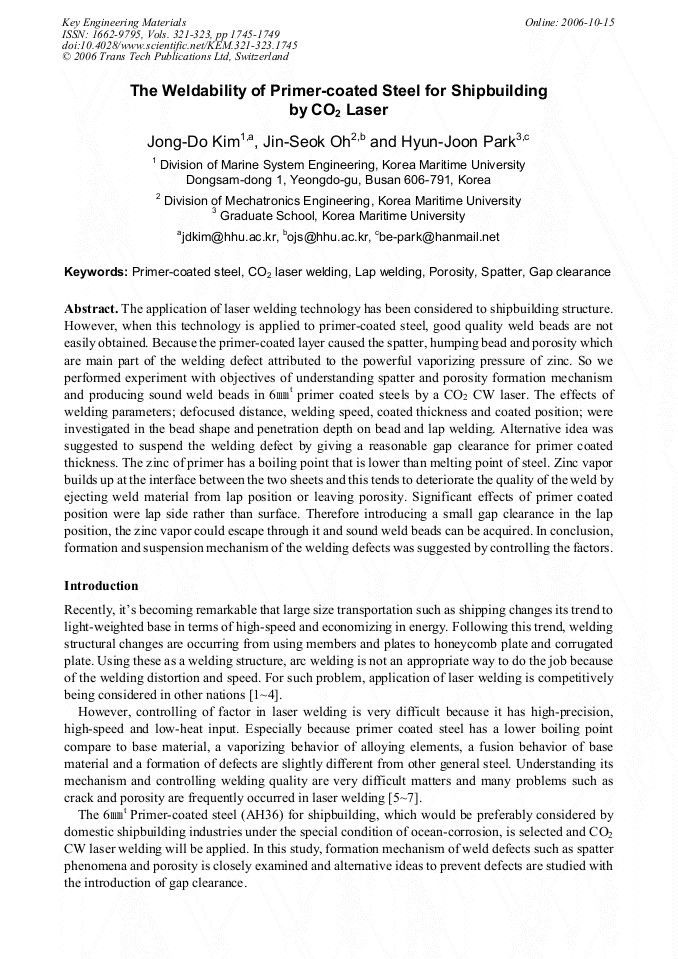

Article Preview

The application of laser welding technology has been considered to shipbuilding structure. However, when this technology is applied to primer-coated steel, good quality weld beads are not easily obtained. Because the primer-coated layer caused the spatter, humping bead and porosity which are main part of the welding defect attributed to the powerful vaporizing pressure of zinc. So we performed experiment with objectives of understanding spatter and porosity formation mechanism and producing sound weld beads in 6 t primer coated steels by a CO2 CW laser. The effects of welding parameters; defocused distance, welding speed, coated thickness and coated position; were investigated in the bead shape and penetration depth on bead and lap welding. Alternative idea was suggested to suspend the welding defect by giving a reasonable gap clearance for primer coated thickness. The zinc of primer has a boiling point that is lower than melting point of steel. Zinc vapor builds up at the interface between the two sheets and this tends to deteriorate the quality of the weld by ejecting weld material from lap position or leaving porosity. Significant effects of primer coated position were lap side rather than surface. Therefore introducing a small gap clearance in the lap position, the zinc vapor could escape through it and sound weld beads can be acquired. In conclusion, formation and suspension mechanism of the welding defects was suggested by controlling the factors.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




J. D. Kim et al., "The Weldability of Primer-Coated Steel for Shipbuilding by CO2 Laser", Key Engineering Materials, Vols. 321-323, pp. 1745-1749, 2006

Online since:

October 2006




[1] H. Simidzu, F. Yosino, S. Katayama and A. Matsunawa: Pulsed Nd: YAG Laser Spot Welding of Aluminum Alloys, Proceedings of LAMP'92 Nagaoka(June, 1992), pp.511-516.

[2] I. Norris, T. Hoult, C. Peters and P. Wileman: Material Processing with a 3kW Nd: YAG Laser, Proceedings of LAMP'92 Nagaoka(June, 1992), pp.489-494.

[3] J. D. Kim and Y. S. Kim : The State of In-Process Quality Monitoring Technology in Laser Welding, The Korean welding society vol. 18 No. 4 (2000), pp.433-440.

[4] Hongping Gu, Robert Mueller: Hybrid welding of galvanized steel sheet, ICALEO(2002).

[5] Hongping Gu: A new method of laser lap welding of zinc-coated steel, ICALEO(2000), pp.1-6.

[6] R. Akhter, M.M. Gualini: Mathematical Modeling of the Laser Spot Weling of Zinc Coated Steel in Lap Configuration, ICALEO(1998), pp.207-216.

[7] J. Heyden, K. Nilsson and C. Magnusson: Laser welding of zinc coated steel, Proc. 6th Int. Conf. Lasers in Manufacturing(1989), pp.93-104.
