Development of Smart Stress Memory Sensor Using AE Kaiser Effect

Abstract:

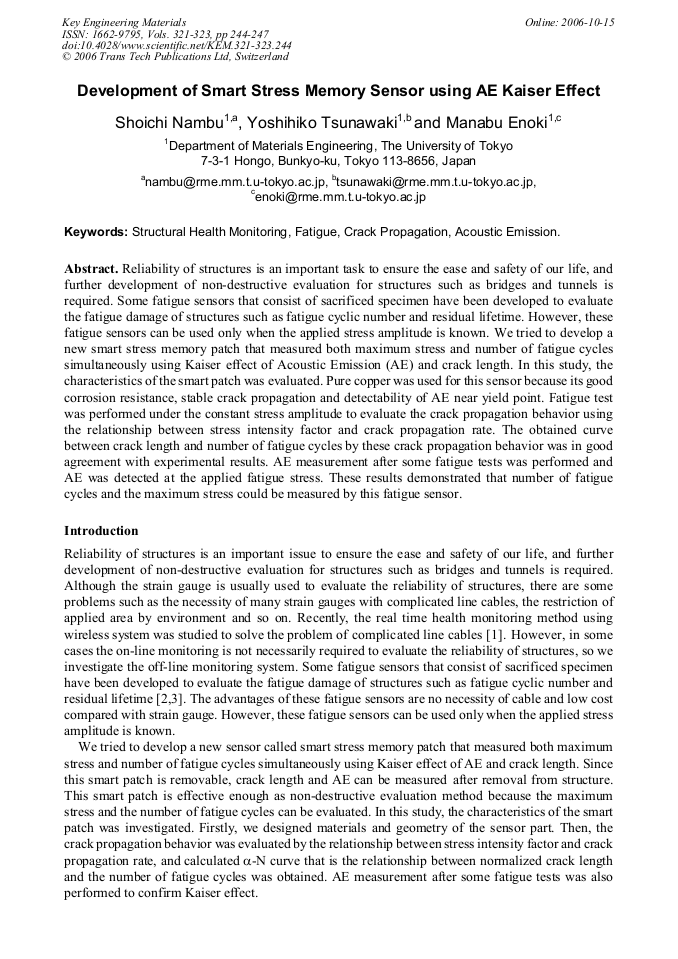

Article Preview

Reliability of structures is an important task to ensure the ease and safety of our life, and further development of non-destructive evaluation for structures such as bridges and tunnels is required. Some fatigue sensors that consist of sacrificed specimen have been developed to evaluate the fatigue damage of structures such as fatigue cyclic number and residual lifetime. However, these fatigue sensors can be used only when the applied stress amplitude is known. We tried to develop a new smart stress memory patch that measured both maximum stress and number of fatigue cycles simultaneously using Kaiser effect of Acoustic Emission (AE) and crack length. In this study, the characteristics of the smart patch was evaluated. Pure copper was used for this sensor because its good corrosion resistance, stable crack propagation and detectability of AE near yield point. Fatigue test was performed under the constant stress amplitude to evaluate the crack propagation behavior using the relationship between stress intensity factor and crack propagation rate. The obtained curve between crack length and number of fatigue cycles by these crack propagation behavior was in good agreement with experimental results. AE measurement after some fatigue tests was performed and AE was detected at the applied fatigue stress. These results demonstrated that number of fatigue cycles and the maximum stress could be measured by this fatigue sensor.

Info:

Periodical:

Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi

Pages:

244-247

DOI:

10.4028/www.scientific.net/KEM.321-323.244

Citation:

S. Nambu et al., "Development of Smart Stress Memory Sensor Using AE Kaiser Effect", Key Engineering Materials, Vols. 321-323, pp. 244-247, 2006

Online since:

October 2006

Export:

Price:

$35.00

[1] S. F. Masri, L. H. Sheng, J. P. Caffrey, R. L. Nigbor, M. Wahbeh and A. M. Abdel-Ghaffar: Smart Mater. Struct. 13 (2004), p.1269.

DOI: 10.1088/0964-1726/13/6/001

[2] Y. Fujimoto, G. Pirker, H. Ito, E. Shintaku and S. Shono: Ship Tech. Res. Vol. 49 (2002), p.33.

[3] T. Kobayashi, O. Muragishi and K. Nihei: Key Engineering Materials 261-263 (2004), p.1313.

[4] A. Hadrboletz, B. Weiss and G. Khatibi: Int. J. Fract. 107 (2001), p.307.

[5] A. Kotousov and C. H. Wang: Int. J. Fract. 111 (2001), p. L53.

[10] [20] [30] [40] [50] 0. 02 0. 03 0. 04 0. 05.

500 1000 1500 Stress Amplitude Time, t / s Stress, σ/ MPa Amplitude / V.

[10] [20] [30] [40] [50] 0. 02 0. 03 0. 04 0. 05.

500 1000 1500 Stress Amplitude Stress Amplitude Time, t / s Stress, σ/ MPa Amplitude / V Fig. 5 AE behavior under the condition of σmax=30MPa and α=0. 6.

[10] [15] [20] [25] [30] [35] [40] [45] [50] [10] 15 20 25 30 35 40 45 50 σmax / MPa σAE / MPa σAE (a=3mm) σmax σAE (a=3. 5mm) σAE (a=4mm).

[10] [15] [20] [25] [30] [35] [40] [45] [50] [10] 15 20 25 30 35 40 45 50 σmax / MPa σAE / MPa σAE (a=3mm) σmax σAE (a=3. 5mm) σAE (a=4mm).

[10] [15] [20] [25] [30] [35] [40] [45] [50] [10] 15 20 25 30 35 40 45 50 σmax / MPa σAE / MPa σAE (a=3mm) σmax σAE (a=3. 5mm) σAE (a=4mm) Fig. 6 The relationship between the fatigue maximum stress and AE generation stress.
