Prediction of Ultrasonic Signals Captured from a Side-Drilled Hole Using a Rectangular Transducer

Abstract:

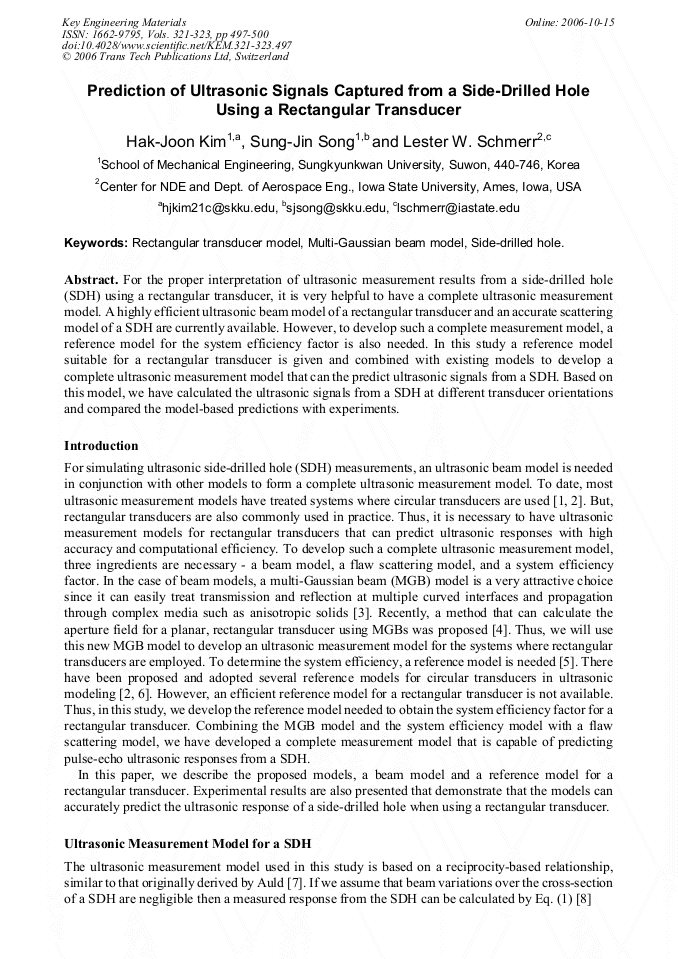

Article Preview

For the proper interpretation of ultrasonic measurement results from a side-drilled hole (SDH) using a rectangular transducer, it is very helpful to have a complete ultrasonic measurement model. A highly efficient ultrasonic beam model of a rectangular transducer and an accurate scattering model of a SDH are currently available. However, to develop such a complete measurement model, a reference model for the system efficiency factor is also needed. In this study a reference model suitable for a rectangular transducer is given and combined with existing models to develop a complete ultrasonic measurement model that can the predict ultrasonic signals from a SDH. Based on this model, we have calculated the ultrasonic signals from a SDH at different transducer orientations and compared the model-based predictions with experiments.

Info:

Periodical:

Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi

Pages:

497-500

DOI:

10.4028/www.scientific.net/KEM.321-323.497

Citation:

H. J. Kim et al., "Prediction of Ultrasonic Signals Captured from a Side-Drilled Hole Using a Rectangular Transducer", Key Engineering Materials, Vols. 321-323, pp. 497-500, 2006

Online since:

October 2006

Export:

Price:

$35.00

[1] R. B. Thompson: in Review of Progress in QNDE Vol. 22 (2003), p.1769.

[2] H. -J. Kim, S. -J. Song and L. W. Schmerr: Journal of NDE Vol. 23 (2004), p.11.

[3] L. W. Schmerr and S. J. Song, Ultrasonic Nondestructive Evaluation Systems - Models and Measurements (WFNDEC UT workshop Material, 2005).

[4] K. Sha, J. Yang and W.S. Gan: IEEE Trans. Ultrason., Ferr., Freq. Contr. Vol. 50 (2003), p.890.

[5] L. W. Schmerr: Fundamentals of Ultrasonic Nondestructive Evaluation - A Modeling Approach, (Plenum Press, USA, 1998).

[6] P. H. Rogers and A. I. Van Buren: J. Acoust. Soc. Am. Vol. 55 (1974), p.724.

[7] B. A. Auld: Wave Motion Vol. 1(1979), p.3.

[8] L. W. Schmerr and A. Sedov: in Review of Progress QNDE Vol. 22(2003), p.1776.
