Evaluation for Toughness Degradation of 2.25Cr-1Mo Steel Using Magnetic Property Measurement Method

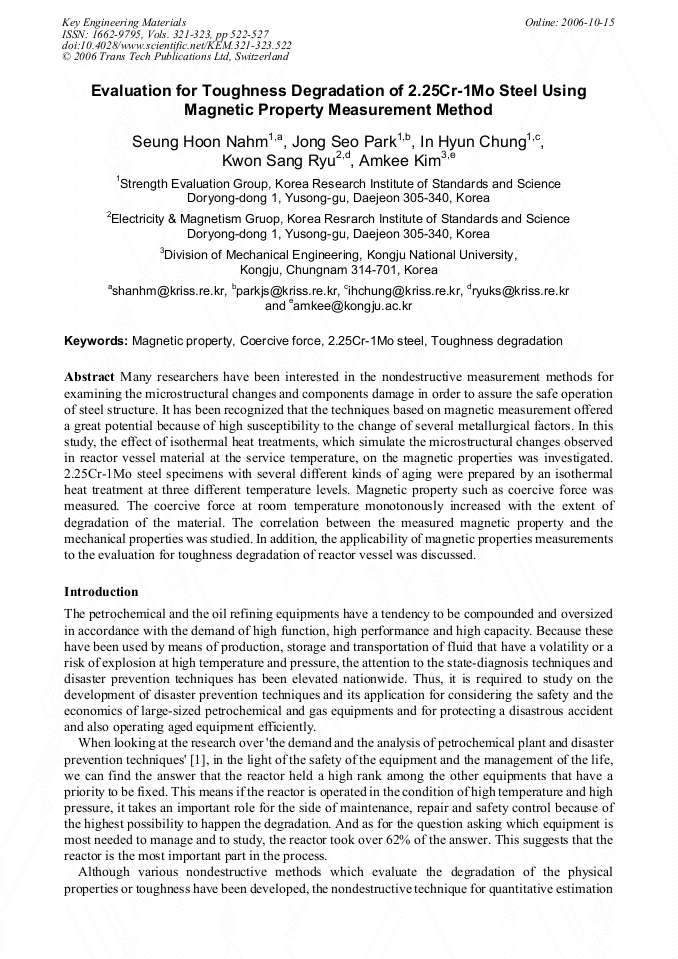

Article Preview

Many researchers have been interested in the nondestructive measurement methods for examining the microstructural changes and components damage in order to assure the safe operation of steel structure. It has been recognized that the techniques based on magnetic measurement offered a great potential because of high susceptibility to the change of several metallurgical factors. In this study, the effect of isothermal heat treatments, which simulate the microstructural changes observed in reactor vessel material at the service temperature, on the magnetic properties was investigated. 2.25Cr-1Mo steel specimens with several different kinds of aging were prepared by an isothermal heat treatment at three different temperature levels. Magnetic property such as coercive force was measured. The coercive force at room temperature monotonously increased with the extent of degradation of the material. The correlation between the measured magnetic property and the mechanical properties was studied. In addition, the applicability of magnetic properties measurements to the evaluation for toughness degradation of reactor vessel was discussed.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi






S. H. Nahm et al., "Evaluation for Toughness Degradation of 2.25Cr-1Mo Steel Using Magnetic Property Measurement Method", Key Engineering Materials, Vols. 321-323, pp. 522-527, 2006

Online since:

October 2006




[1] Korea Gas Safety Corporation, The Demand and the Analysis of Petrochemistry Plant and Disaster Prevention Techniques (1998).

[2] J. S. Park, H. M. Lee, U. B. Beak, Trans. of the KSME (A), Vol. 24, No. 9 (2000), pp.2381-2386.

[3] J. -K. Kim, S. H. Nahm, A. Kim, J. of the Korean Society for Heat Treatment, Vol. 11, No. 1 (1998), pp.54-61.

[4] J. K. Kim, J. Y. Yoon, K. W. Song, J. J. Lee and S. H. Chung, Trans. of the KSME , Vol. 15, No. 3 (1991), pp.898-906.

[5] S. H. Nahm, K. M. Yu, J. C. Ryu, J. of the Korean Society for Nondestructive Testing, Vol. 21, No. 5 (2001), pp.532-541.

[6] K. S. Ryu, S. H. Nahm, Y. B. Kim, K. M. Yu and D. Son, Journal of Magnetism and Magnetic Materials, Vol. 222 (2000), pp.128-132.

[7] H. J. Jeong, S. H. Nahm, K. Y. Jhang and Y. H. Nam, J. of the Korean Society for nondestructive testing, Vol. 20, No. 5 (2000), pp.424-430.

[8] B. O. Kong, J. T. Kim, D. J. Kim, B. H. Kim and B. H. Chi, J. Kor. Inst. Met. & Mater., Vol. 37, No. 3 (1999), pp.281-287.

[9] S. T. Rolfe, and S. R. Novak, ASTM 463 (1970), p.124. ��.
