Experimental Study on the Fatigue Strength of the Bogie Frame for Tilting Railway Vehicles

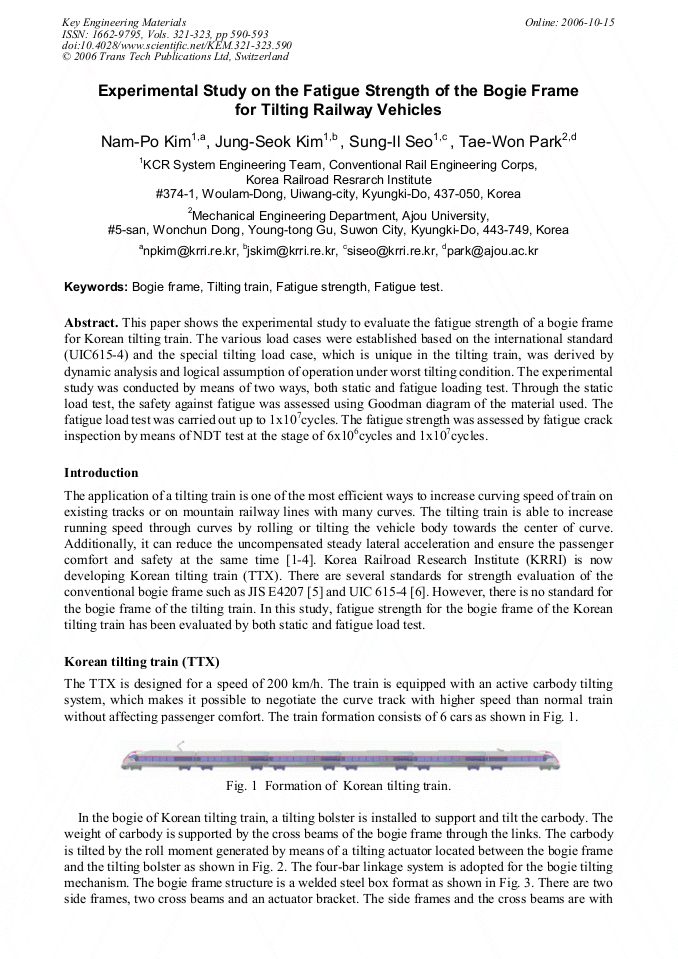

Article Preview

This paper shows the experimental study to evaluate the fatigue strength of a bogie frame for Korean tilting train. The various load cases were established based on the international standard (UIC615-4) and the special tilting load case, which is unique in the tilting train, was derived by dynamic analysis and logical assumption of operation under worst tilting condition. The experimental study was conducted by means of two ways, both static and fatigue loading test. Through the static load test, the safety against fatigue was assessed using Goodman diagram of the material used. The fatigue load test was carried out up to 1x107cycles. The fatigue strength was assessed by fatigue crack inspection by means of NDT test at the stage of 6x106cycles and 1x107cycles.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




N. P. Kim et al., "Experimental Study on the Fatigue Strength of the Bogie Frame for Tilting Railway Vehicles", Key Engineering Materials, Vols. 321-323, pp. 590-593, 2006

Online since:

October 2006




[1] J. T. Pearson, R. M. Goodall and I. Pratt: Proc Instn Mech Engrs Vol. 212 (1991), p.43.

[2] J. Forstberg: Motion-Related Comfort in Tilting Trains (VTI Rapport 449A, 2000).

[3] S. Koyanagi, I. Okamoto, S. Fujimori and K. Terada: JSME International Journal Vol. 32 (1989), p.316.

[4] SwedeRail: High Speed Tilting EMUs for Conventional Railways to KRRI (Final Report, 2003).

[5] Japanese Industrial Standard (JIS) E 4207: Truck Frames for Railway Rolling Stock-General Rules for Design, (1989).

[6] UIC Code 615-4: Motive Power Units Bogies and Running Gear Bogie Frame Structure Strength Tests, (1994).

[7] European Rail Research Institute B 12/RP 17, 7th edition, (1993).
