Far IR Emission and Thermal Properties of Ceramics Coated Fabrics by IR Thermography

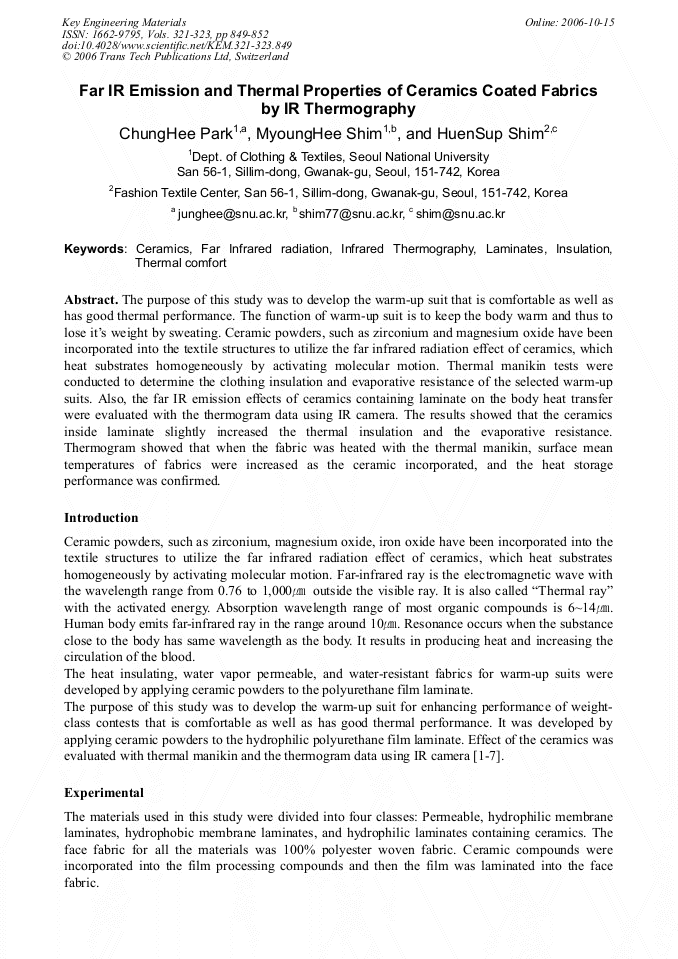

Article Preview

The purpose of this study was to develop the warm-up suit that is comfortable as well as has good thermal performance. The function of warm-up suit is to keep the body warm and thus to lose it’s weight by sweating. Ceramic powders, such as zirconium and magnesium oxide have been incorporated into the textile structures to utilize the far infrared radiation effect of ceramics, which heat substrates homogeneously by activating molecular motion. Thermal manikin tests were conducted to determine the clothing insulation and evaporative resistance of the selected warm-up suits. Also, the far IR emission effects of ceramics containing laminate on the body heat transfer were evaluated with the thermogram data using IR camera. The results showed that the ceramics inside laminate slightly increased the thermal insulation and the evaporative resistance. Thermogram showed that when the fabric was heated with the thermal manikin, surface mean temperatures of fabrics were increased as the ceramic incorporated, and the heat storage performance was confirmed.



Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi




C. H. Park et al., "Far IR Emission and Thermal Properties of Ceramics Coated Fabrics by IR Thermography", Key Engineering Materials, Vols. 321-323, pp. 849-852, 2006

Online since:

October 2006




[1] P. W. Gibson, Factors Influencing Steady-State Heat and Water Vapor Transfer Measurements for Clothing Materials, Textile Research journal, 63(12), pp.749-764(1993).

[2] B. Farnworth, W. A. Lotens, and P. P. Wittgen, Variation of water vapor resistance of microporous and hydrophilic films with relative humidity, Textile research journal, 61 p.5053(1993).

DOI: https://doi.org/10.1177/004051759006000107

[3] S. Y. Yeo, D. H. Lee, E. A. Kim, Far IR Emission and Thermal Properties of Ceramics Coated Nylon Fabrics, Journal of the Korean Society of Clothing and Textiles, 22(4) p.515524(1998).

[4] Handbook of Infrared Radiation Measurement, FLIR systems, p.67~69.

[5] ISO 11092: 1993 Textiles-Physiological Effect-Measurement of Thermal and Water-Vapour Resistance under Steady-State Conditions(sweating guarded-hot plate test).

DOI: https://doi.org/10.3403/00327811u

[6] ASTM 96: 2000 Standard Test Methods for Water Vapor Transmission of Materials: Desiccant Method(CaCl2).

[7] ISO 9237-1995 Textiles-Determination of the permeability of fabrics to air.
