Creep Crack Interaction of High Temperature Structure with Multiple Cracks

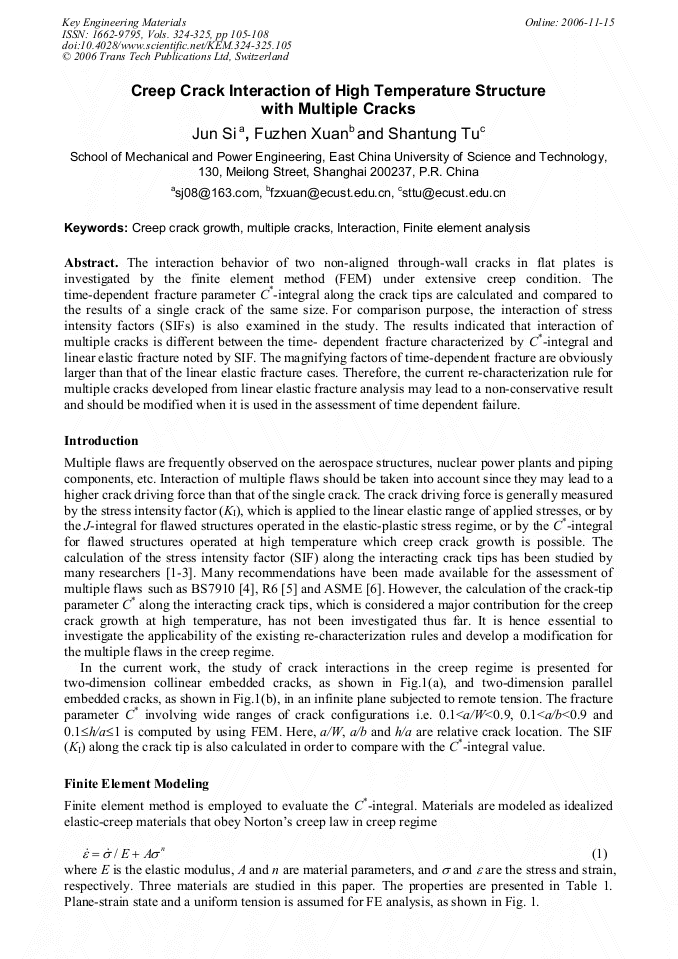

Article Preview

The interaction behavior of two non-aligned through-wall cracks in flat plates is investigated by the finite element method (FEM) under extensive creep condition. The time-dependent fracture parameter C*-integral along the crack tips are calculated and compared to the results of a single crack of the same size. For comparison purpose, the interaction of stress intensity factors (SIFs) is also examined in the study. The results indicated that interaction of multiple cracks is different between the time- dependent fracture characterized by C*-integral and linear elastic fracture noted by SIF. The magnifying factors of time-dependent fracture are obviously larger than that of the linear elastic fracture cases. Therefore, the current re-characterization rule for multiple cracks developed from linear elastic fracture analysis may lead to a non-conservative result and should be modified when it is used in the assessment of time dependent failure.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz




J. Si et al., "Creep Crack Interaction of High Temperature Structure with Multiple Cracks", Key Engineering Materials, Vols. 324-325, pp. 105-108, 2006

Online since:

November 2006




[1] E. Viola. Eng. Fract. Mech. Vol. 18 (1983), pp.801-814.

[2] S.T. Tu and S.H. Dai. Fatigue Fract. Eng. Mater. Struct. Vol. 17 (1994), pp.1235-1246.

[3] S. Burande and R. Sethuraman. Int J Pres Ves Piping. Vol. 76 (1999), pp.331-338.

[4] BS7910. Guidance on methods of assessing the acceptability of flaws in metallic structures. London, UK: British Standard Institutions (1999).

[5] R6. Assessment of the integrity of structures containing defects. Gloucester: British Energy Generation Ltd, Revision 4, chapter I and II. 3 (2001).

[6] ASME Boiler and pressure vessel design code. Section XI. American Society of Mechanical Engineers (1992).

[7] S.T. Tu. J. Theoretical and Appl. Fracture Mechanics, Vol 38 (2002), pp.203-209.

[8] F.Z. Xuan, S.T. Tu and Z.D. Wang. Eng. Frac. Mech., Vol 72 (2005), pp.2602-2614.

[9] F.Z. Xuan, S.T. Tu and Z.D. Wang. Fatigue Fract. Eng. Mater. Struct., Vol 29 (2006), pp.157-166.
