High-Velocity Impact Characteristic of Carbon Fiber Reinforced Plastic Laminates Using Ballistic Range

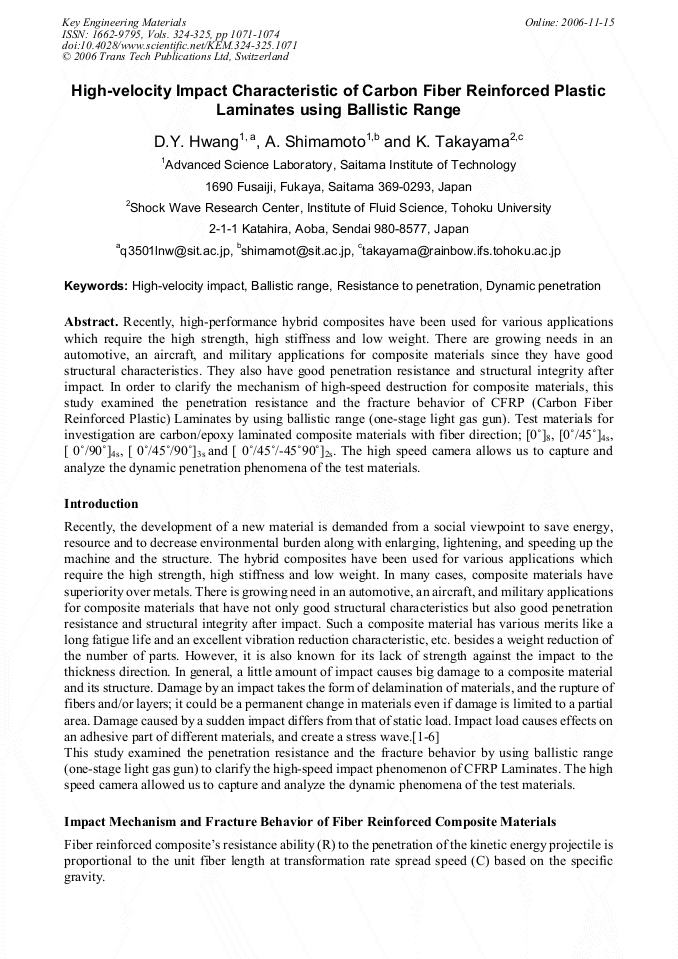

Article Preview

Recently, high-performance hybrid composites have been used for various applications which require the high strength, high stiffness and low weight. There are growing needs in an automotive, an aircraft, and military applications for composite materials since they have good structural characteristics. They also have good penetration resistance and structural integrity after impact. In order to clarify the mechanism of high-speed destruction for composite materials, this study examined the penetration resistance and the fracture behavior of CFRP (Carbon Fiber Reinforced Plastic) Laminates by using ballistic range (one-stage light gas gun). Test materials for investigation are carbon/epoxy laminated composite materials with fiber direction; [0°]8, [0°/45°]4s, [ 0°/90°]4s, [ 0°/45°/90°]3s and [ 0°/45°/-45°90°]2s. The high speed camera allows us to capture and analyze the dynamic penetration phenomena of the test materials.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz




D. Y. Hwang et al., "High-Velocity Impact Characteristic of Carbon Fiber Reinforced Plastic Laminates Using Ballistic Range ", Key Engineering Materials, Vols. 324-325, pp. 1071-1074, 2006

Online since:

November 2006




[1] Kim, M.S., Nam, S.K. and Park, S.B., KSME, 17-8 (1993), p. (1931).

[2] U.S. Army Research Laboratory, MIL-A-12560G, Armor Plate, Steel, Wrought, Homogeneous, Dept. of the Navy, Defense Printing Service, Philadelphia, PA(1984).

[3] J. Jang, R. Park, Y. Yun, J. Park, H. Kim, Journal of Materials Science, 32(1) (1997), p.23.

[4] Roger L. Ellis, Frederic Lalande, Hongyu. Jia, Proceeding of American Institute of Aeronautics and Astronautics, AIAA-97-1044(1997), p.908.

[5] Nonaka, S., Takayama, K., Kibe, S. , AIAA paper 98-0800(1998).

[6] Hashimoto, T., Kawauchi, T., Sturtzer, M.O., Takayama, K., Togami, K., Yamashita, S. , Proceedings of Japan Symposium on High Speed Photography and Photonics 2003(2003).
