Low-Cycle Fatigue Behavior of Small Slice Specimens of Zircaloy-4 at Elevated Temperature

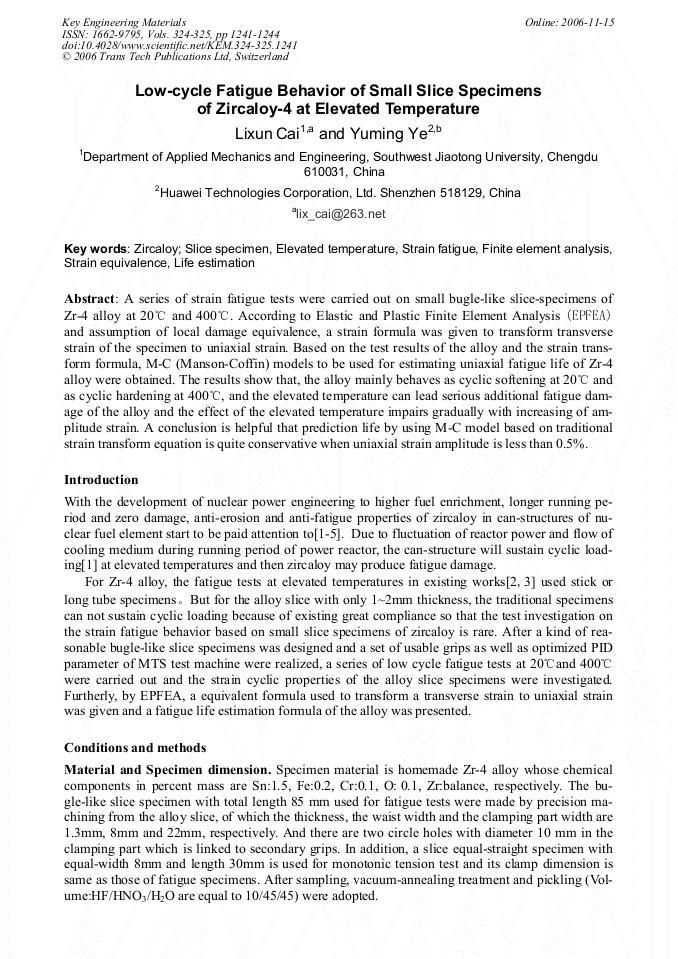

Article Preview

A series of strain fatigue tests were carried out on small bugle-like slice-specimens of Zr-4 alloy at 20 and 400. According to Elastic and Plastic Finite Element Analysis  and assumption of local damage equivalence, a strain formula was given to transform transverse strain of the specimen to uniaxial strain. Based on the test results of the alloy and the strain transform formula, M-C (Manson-Coffin) models to be used for estimating uniaxial fatigue life of Zr-4 alloy were obtained. The results show that, the alloy mainly behaves as cyclic softening at 20 and as cyclic hardening at 400, and the elevated temperature can lead serious additional fatigue damage of the alloy and the effect of the elevated temperature impairs gradually with increasing of amplitude strain. A conclusion is helpful that prediction life by using M-C model based on traditional strain transform equation is quite conservative when uniaxial strain amplitude is less than 0.5%.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz






L. X. Cai and Y. M. Ye, "Low-Cycle Fatigue Behavior of Small Slice Specimens of Zircaloy-4 at Elevated Temperature ", Key Engineering Materials, Vols. 324-325, pp. 1241-1244, 2006

Online since:

November 2006




[1] L. Caillot, B. Linet, C. Lemaignan: Transactions of the Twelfth Int. Confer. on Struct. Mech. in Reactor Tech., Amsterdam, , C04/2(1993), p.69�74.

[2] S.B. Wisner, M.B. Reynolds, R.B. Adamson: ASTM STP 1245, edited by Garde A M, Bradley E R, Eds. p.994, 499�520.

[3] Lin Xiao, H.C. Gu: Rare Metal Mater. and Eng., Vol. 27 (2)(1998), p.69�74(in Chinese).

[4] Lixun Cai, Y.M. Ye: J. of Xi'an Jiaotong Uni., Vol. 38(1)(2004), p.97�100(in Chinese).

[5] Yuming Ye, L.X. Cai, C. Li.: J. of Uni. of Sci. and Tech. Beijing, Vol. 26(Suppl) (2004), p.48�52(in Chinese) Experimental life (Cycle) Predicting life (Cycle) Fig. 5 Life prediction by M-C models.

In order to see related information, you need to Login.
