Measuring of Damage Parameters in Adhesive Bonding

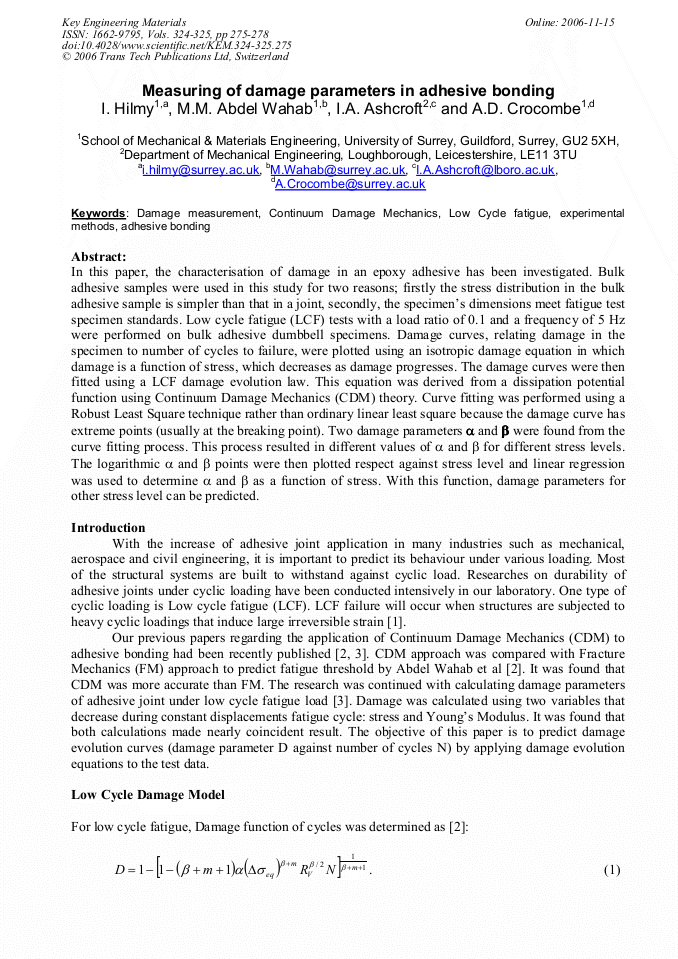

Article Preview

In this paper, the characterisation of damage in an epoxy adhesive has been investigated. Bulk adhesive samples were used in this study for two reasons; firstly the stress distribution in the bulk adhesive sample is simpler than that in a joint, secondly, the specimen’s dimensions meet fatigue test specimen standards. Low cycle fatigue (LCF) tests with a load ratio of 0.1 and a frequency of 5 Hz were performed on bulk adhesive dumbbell specimens. Damage curves, relating damage in the specimen to number of cycles to failure, were plotted using an isotropic damage equation in which damage is a function of stress, which decreases as damage progresses. The damage curves were then fitted using a LCF damage evolution law. This equation was derived from a dissipation potential function using Continuum Damage Mechanics (CDM) theory. Curve fitting was performed using a Robust Least Square technique rather than ordinary linear least square because the damage curve has extreme points (usually at the breaking point). Two damage parameters α and β were found from the curve fitting process. This process resulted in different values of α and β for different stress levels. The logarithmic α and β points were then plotted respect against stress level and linear regression was used to determine α and β as a function of stress. With this function, damage parameters for other stress level can be predicted.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz




I. Hilmy et al., "Measuring of Damage Parameters in Adhesive Bonding", Key Engineering Materials, Vols. 324-325, pp. 275-278, 2006

Online since:

November 2006




[1] J. Lemaitre and R. Desmorat, Engineering Damage Mechanics, Springer-Verlag, (2005).

[2] M. M Abdel Wahab, I.A. Ashcroft, A.D. Crocombe and S.J. Shaw, Prediction of fatigue thresholds in adhesively bonded joints using damage mechanics and fracture mechanics, Journal of Adhesion Science Technology, Vol. 15, No. 7, pp.763-781, (2001).


[3] M.M. Abdel Wahab, I. Hilmy, I.A. Ashcroft and A.D. Crocombe, Damage modeling of adhesive bonding, Advances in Fracture and Damage Mechanics, pp.431-435, ISBN 09547783-1-6, Mallorca, Spain, 12-14 July (2005).


[4] P. Kumara, S. Tiwaria and R.K. Singh, Characterization of toughened bonded interface against fracture and impact loads, International Journal of Adhesion & Adhesives 25, pp.527-533, (2005).


[5] MATLAB Curve Fitting Toolbox, version. 7. 1.
